Brake Caliper Anchor Plate, Front

Brake Caliper Anchor Plate

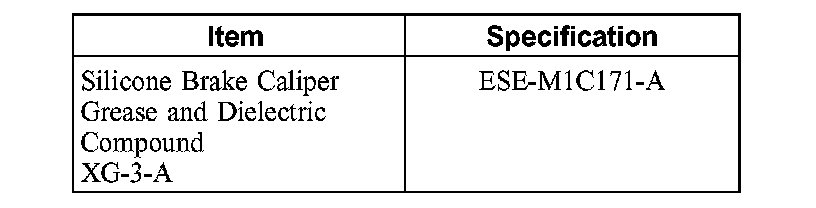

Material

Removal and Installation
1. Remove the brake pads.
2. Remove the 2 bolts and the brake caliper anchor plate.
^ To install, tighten to 115 Nm (85 ft. lbs.).
3. Inspect the brake caliper anchor plate assembly.
^ Check the guide pins and boots for binding and damage.
^ Replace worn or damaged pins. Lubricate the pins with the specified grease.
^ Install a new brake caliper anchor plate if it is worn or damaged.
4. To install, reverse the removal procedure.
