G: Spongy/Soft/Low Brake Pedal With No Warning Indicator

Pinpoint Test G: Spongy/Soft/Low Brake Pedal with No Warning Indicator

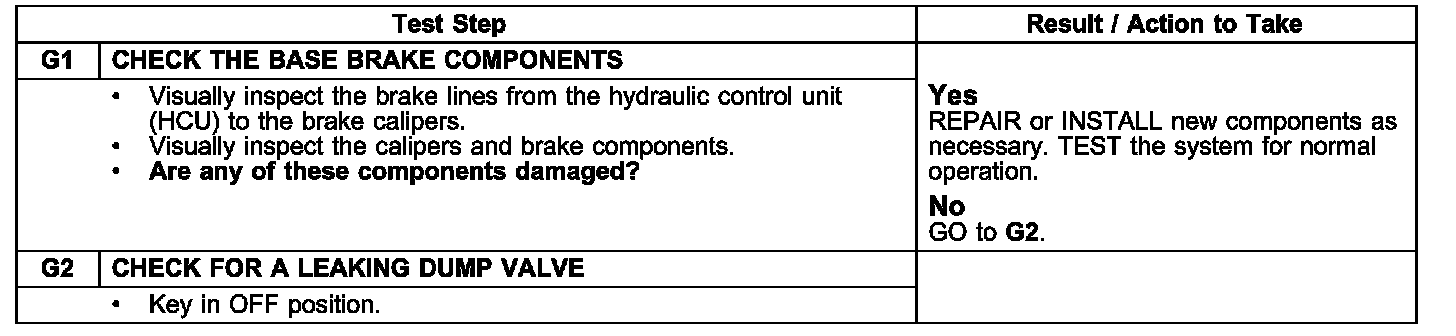

Test G1-G2:

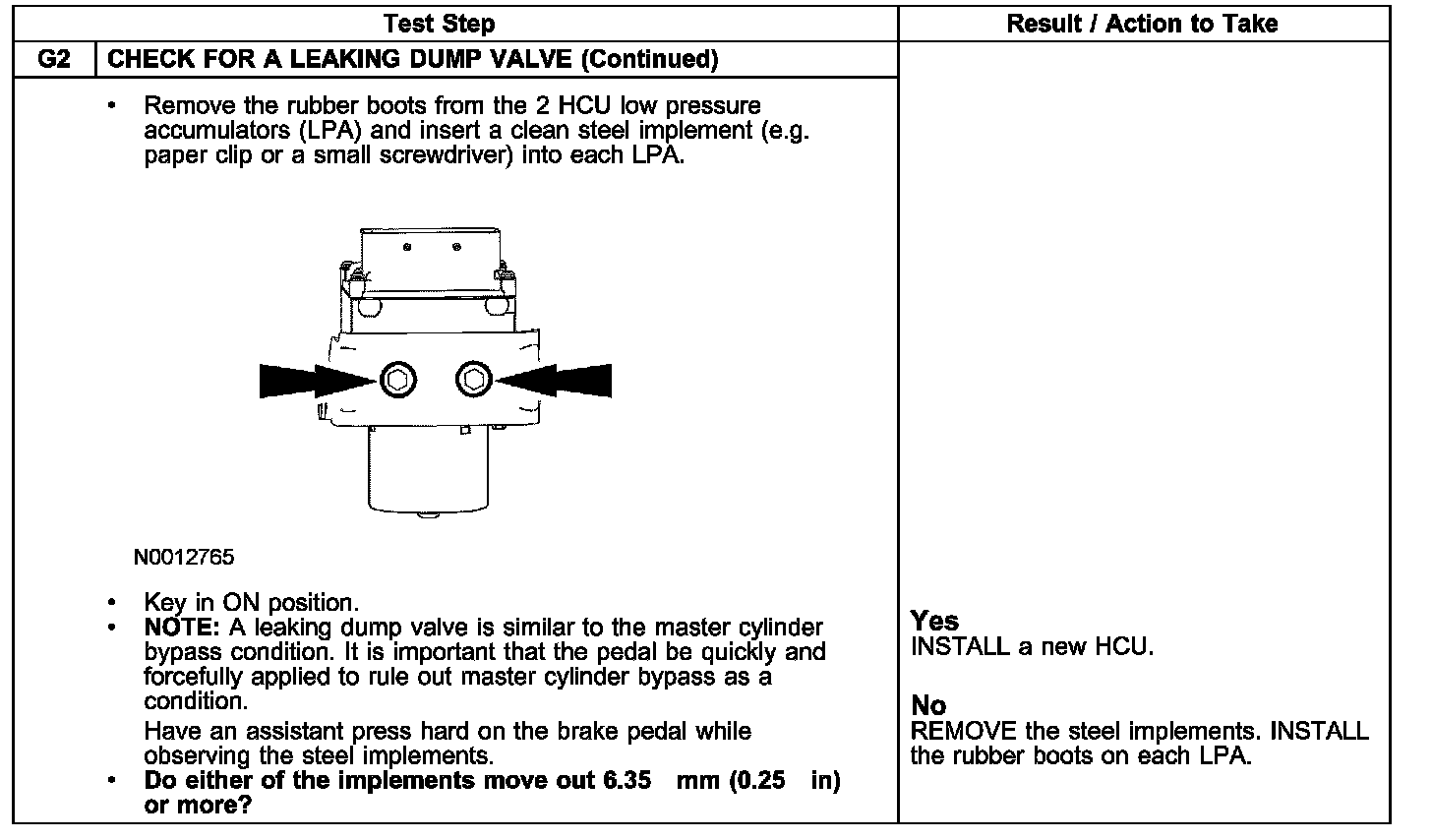

Test G2 Continued:

Normal Operation
The brake pedal should be firm when applied.

Possible Causes
^ base brake system
^ hydraulic control unit (HCU)
