Connector Circuit Reference

Connector Circuit Reference

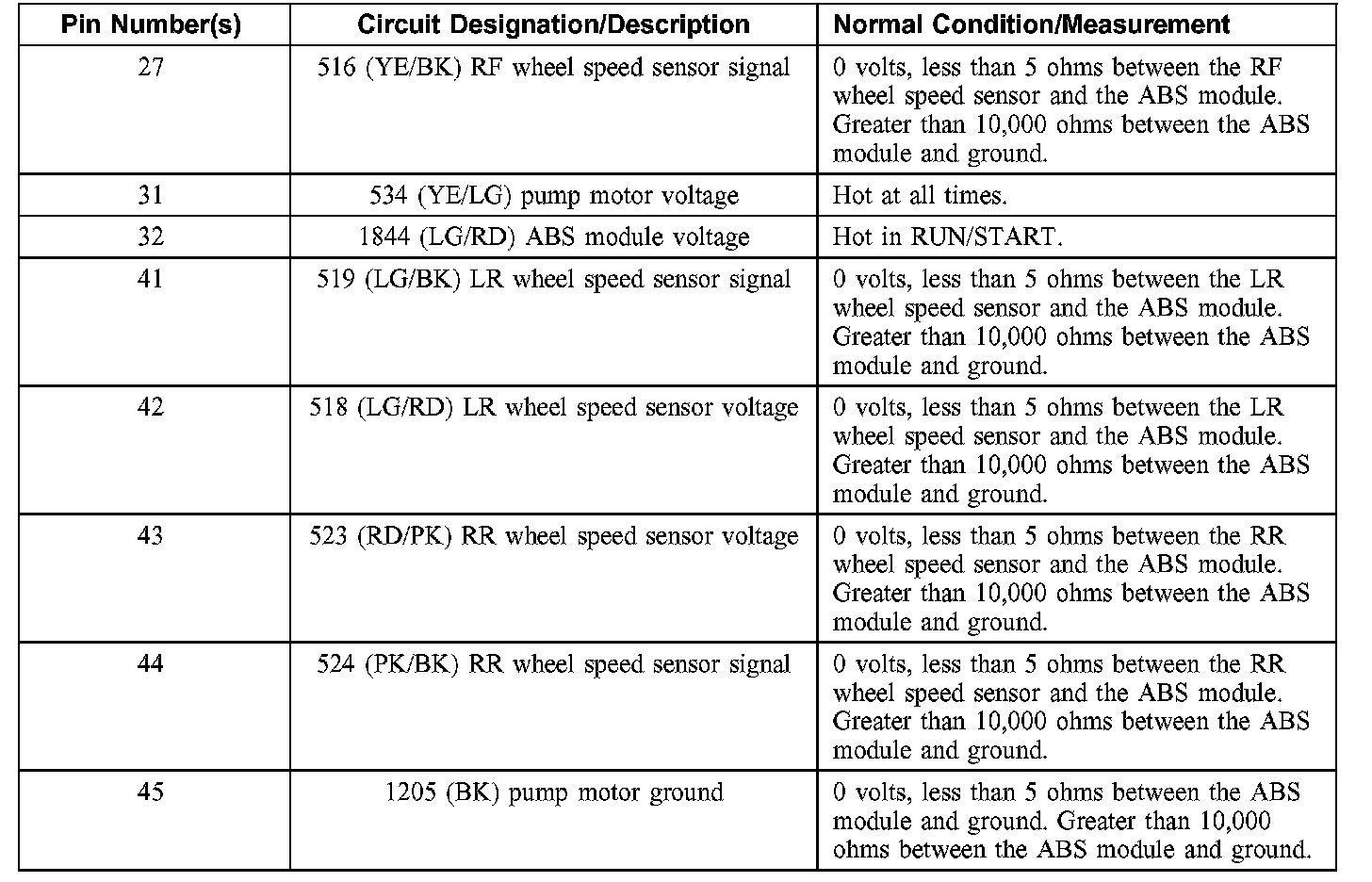

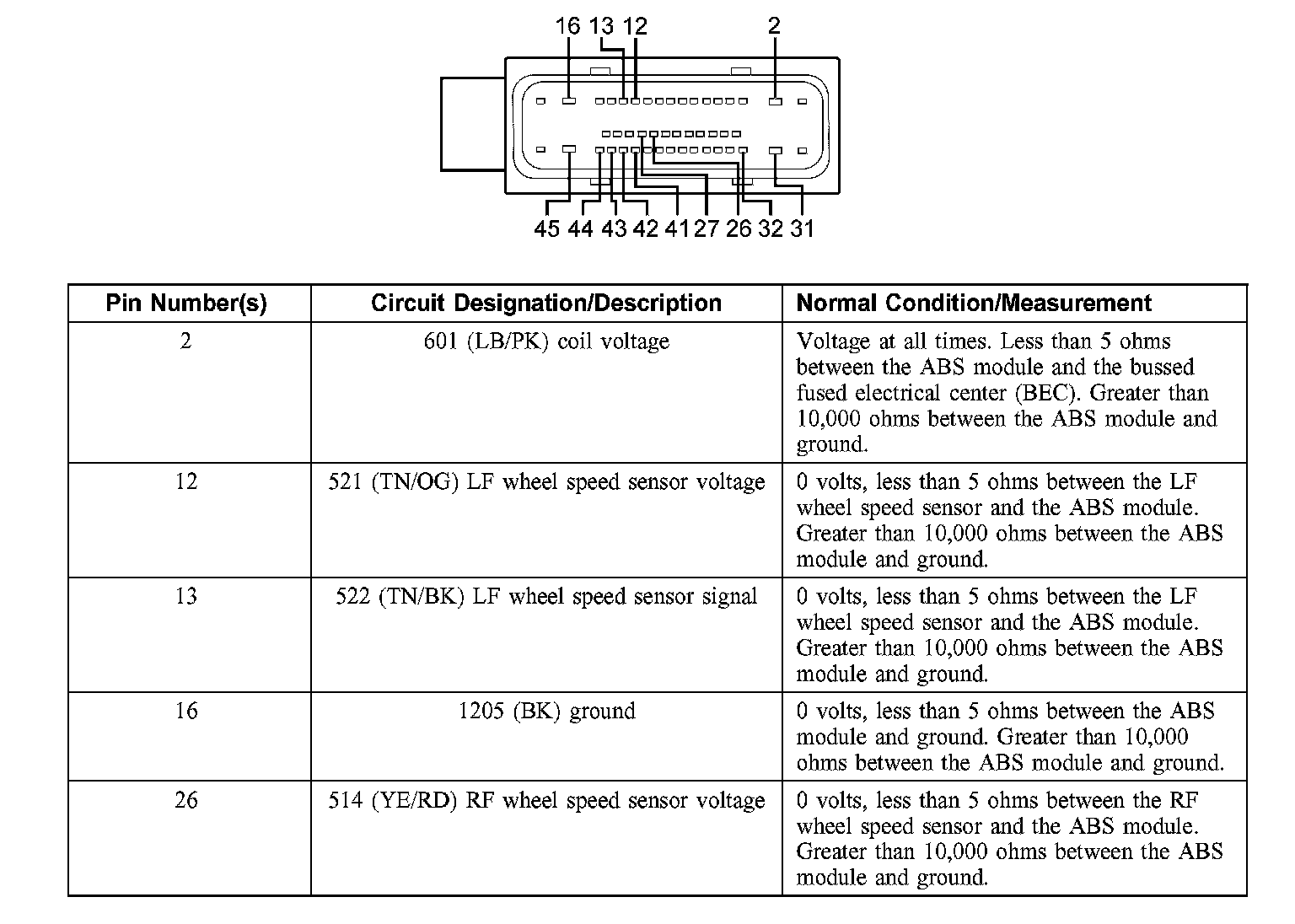

Antilock Brake System (ABS) C135

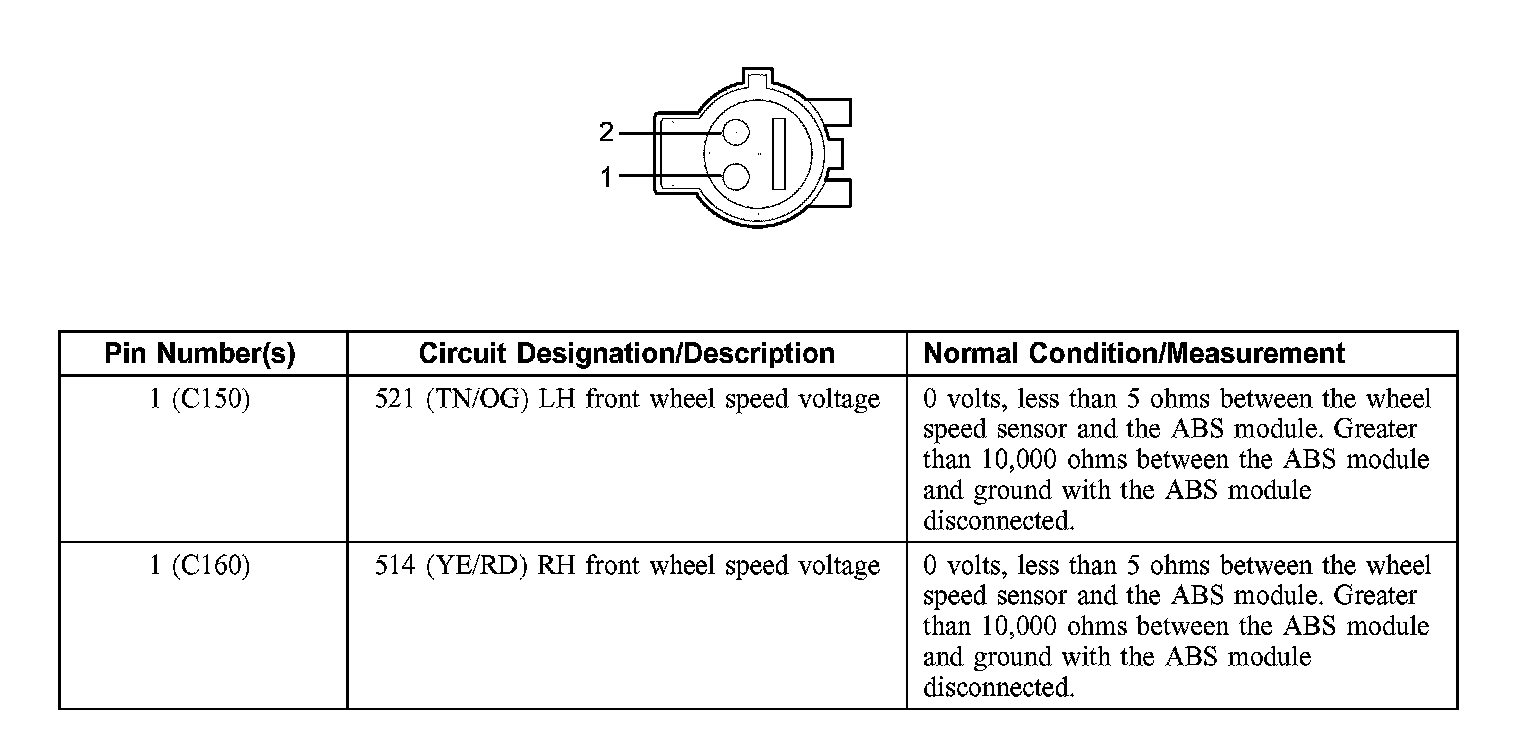

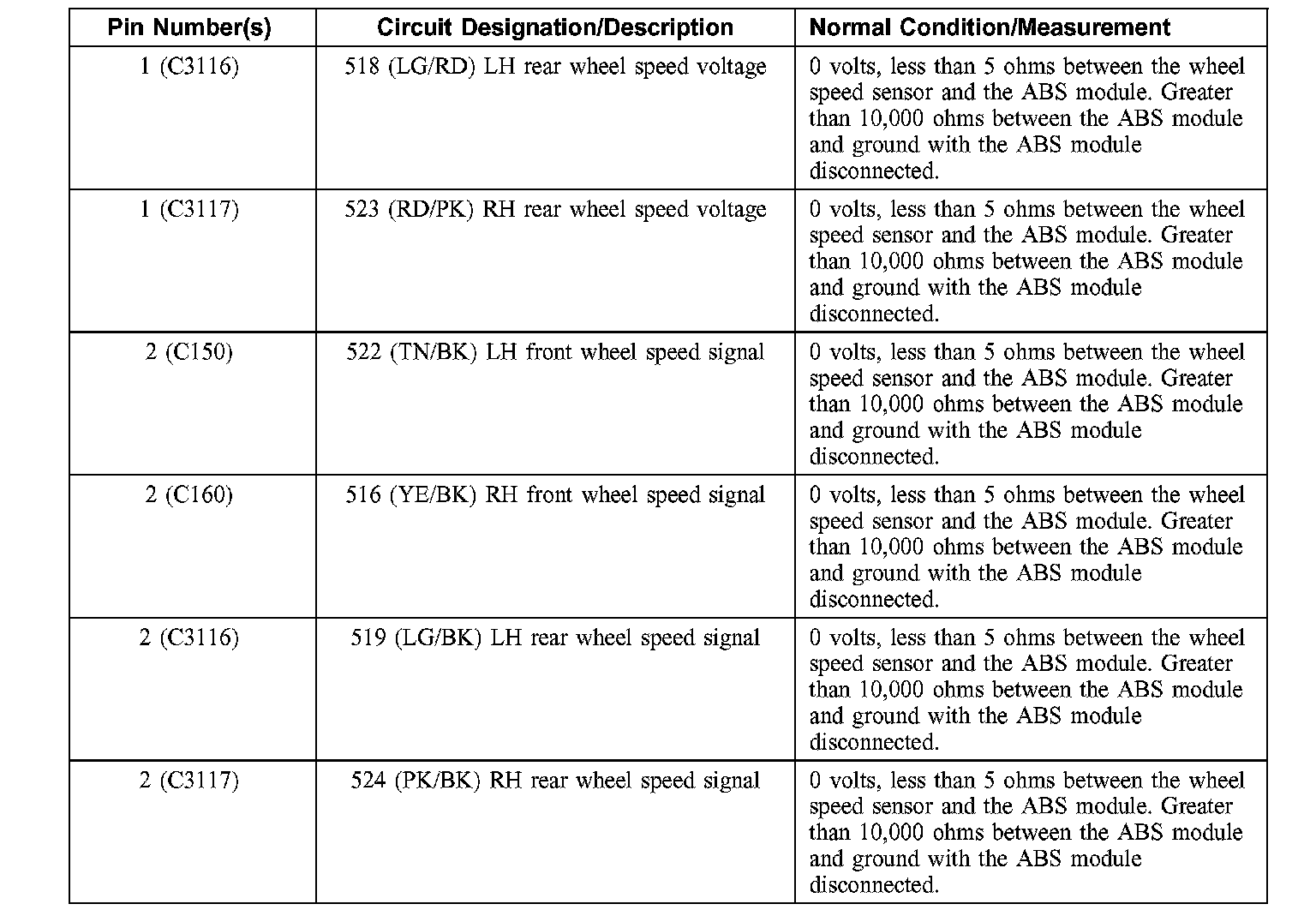

LH Front Wheel Speed Sensor C150, RH Front Wheel Speed Sensor C160, LH Rear Wheel Speed Sensor C3116, RH Rear Wheel Speed Sensor C3117

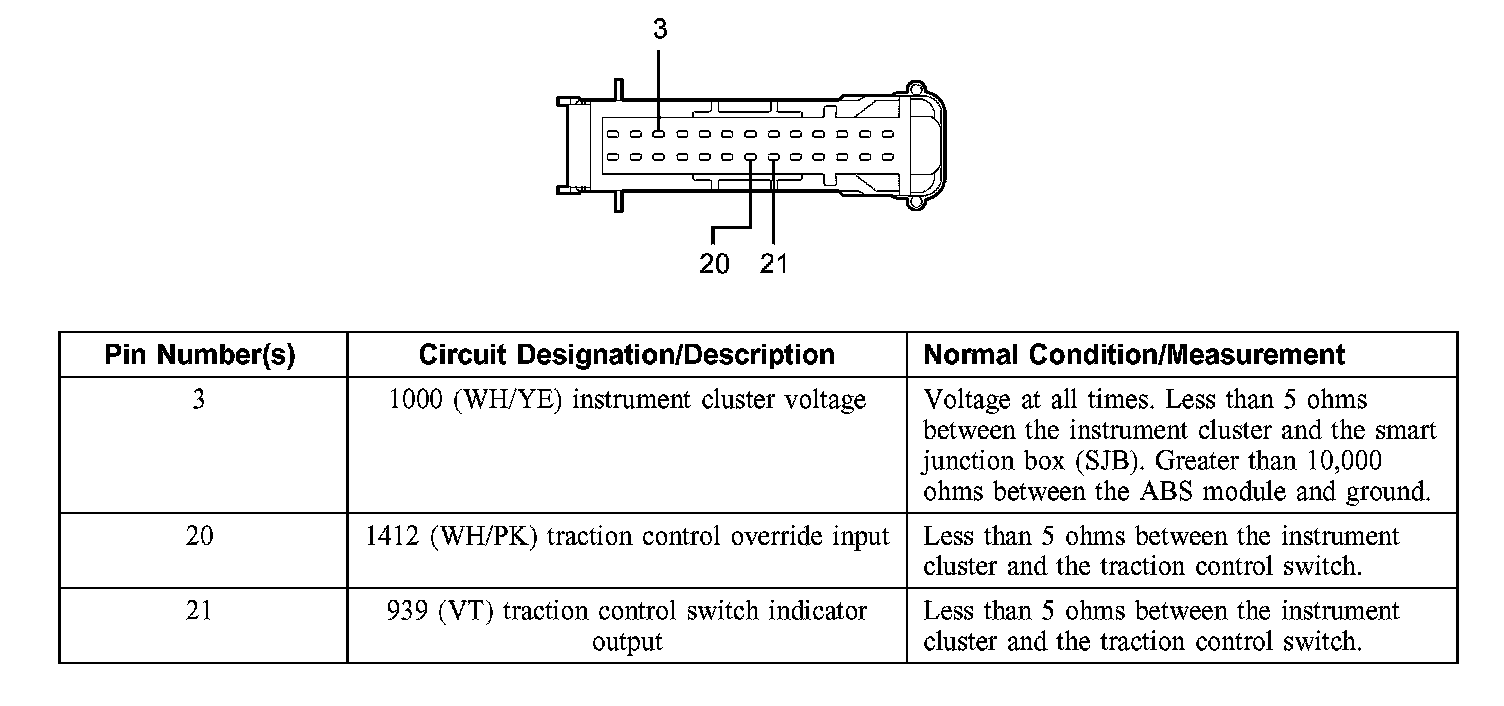

Instrument Cluster C220

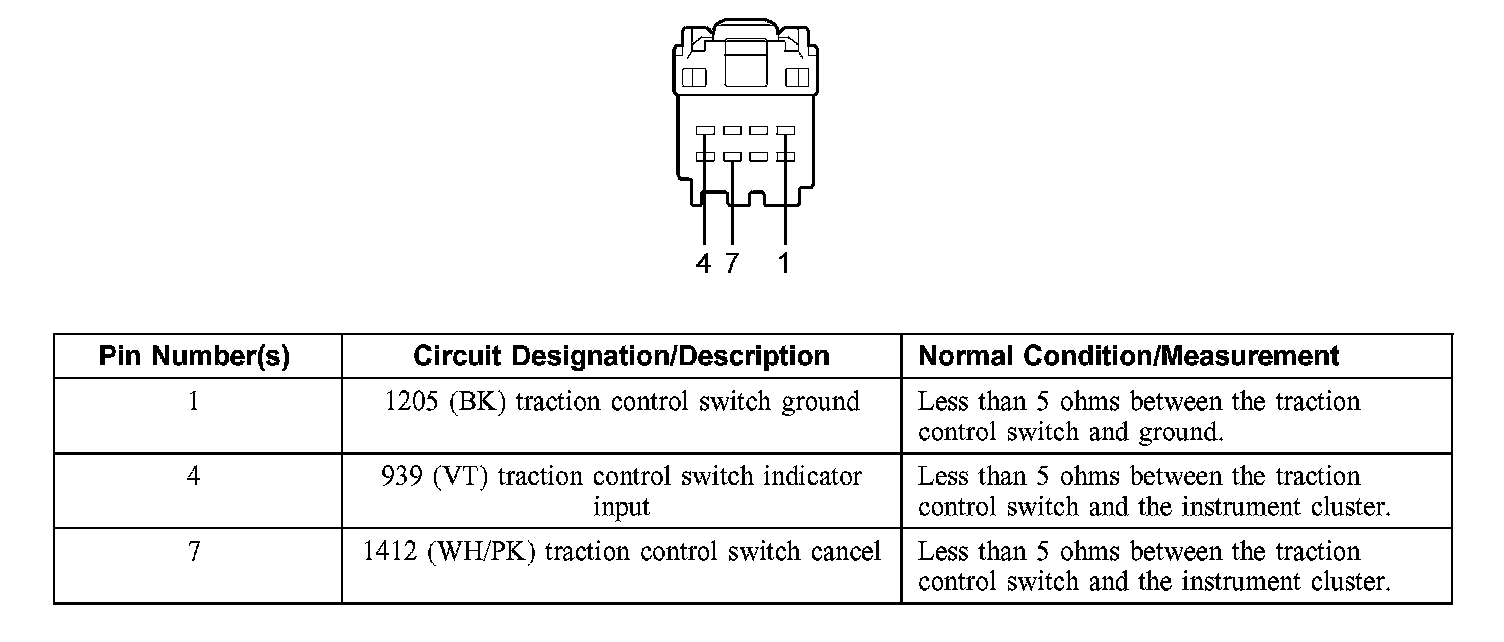

Traction Control Switch C2039
