Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Body and Frame >> Spoilers, Flaps, and Air Dams >> Spoiler >> Service and Repair

Spoiler: Service and Repair

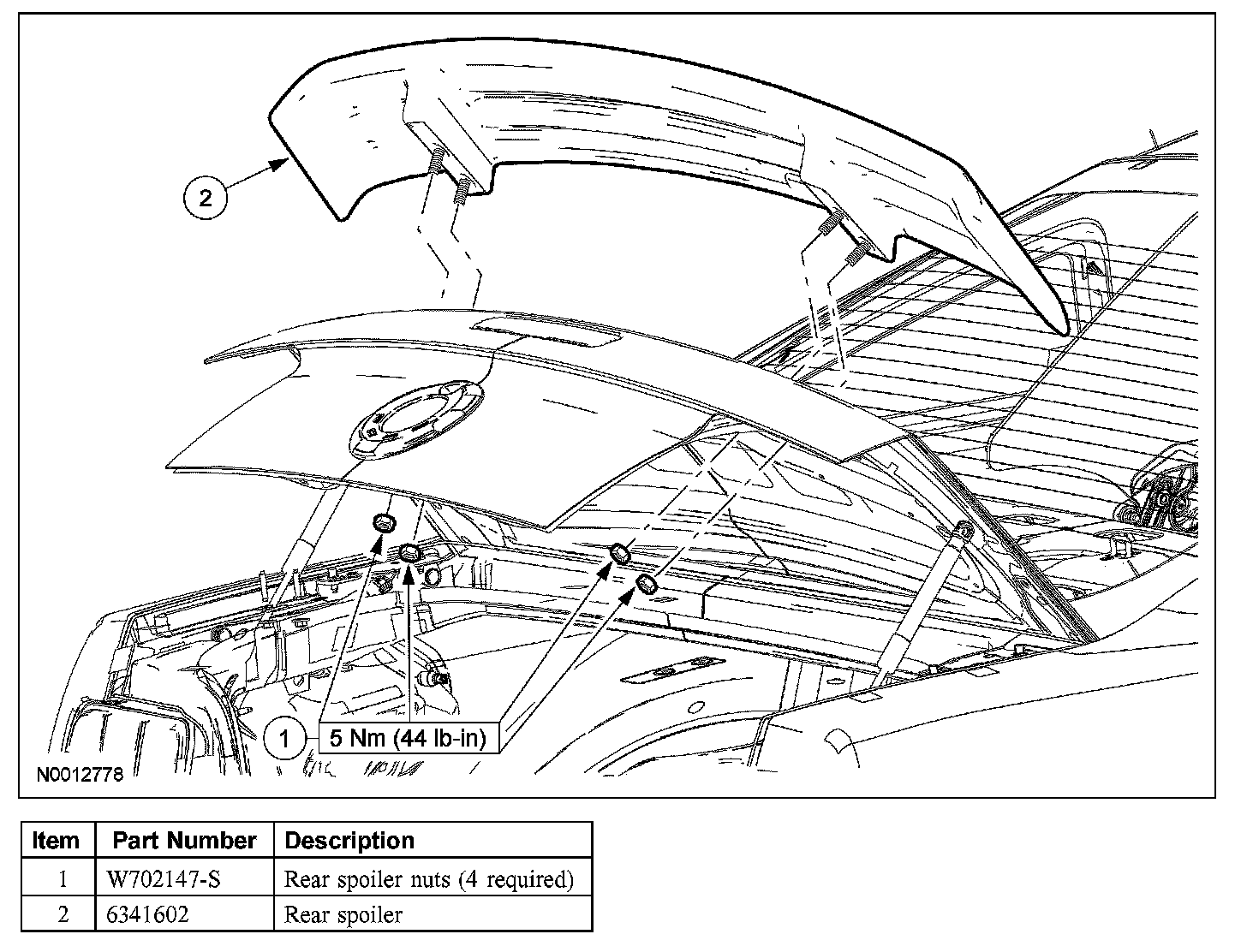

REAR SPOILER







Removal and Installation
1. Remove the 4 nuts and remove the rear spoiler.
2. To install, reverse the removal procedure.
