Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Convertible Top Ajar Switch C3266

Convertible Top Ajar Switch C3266

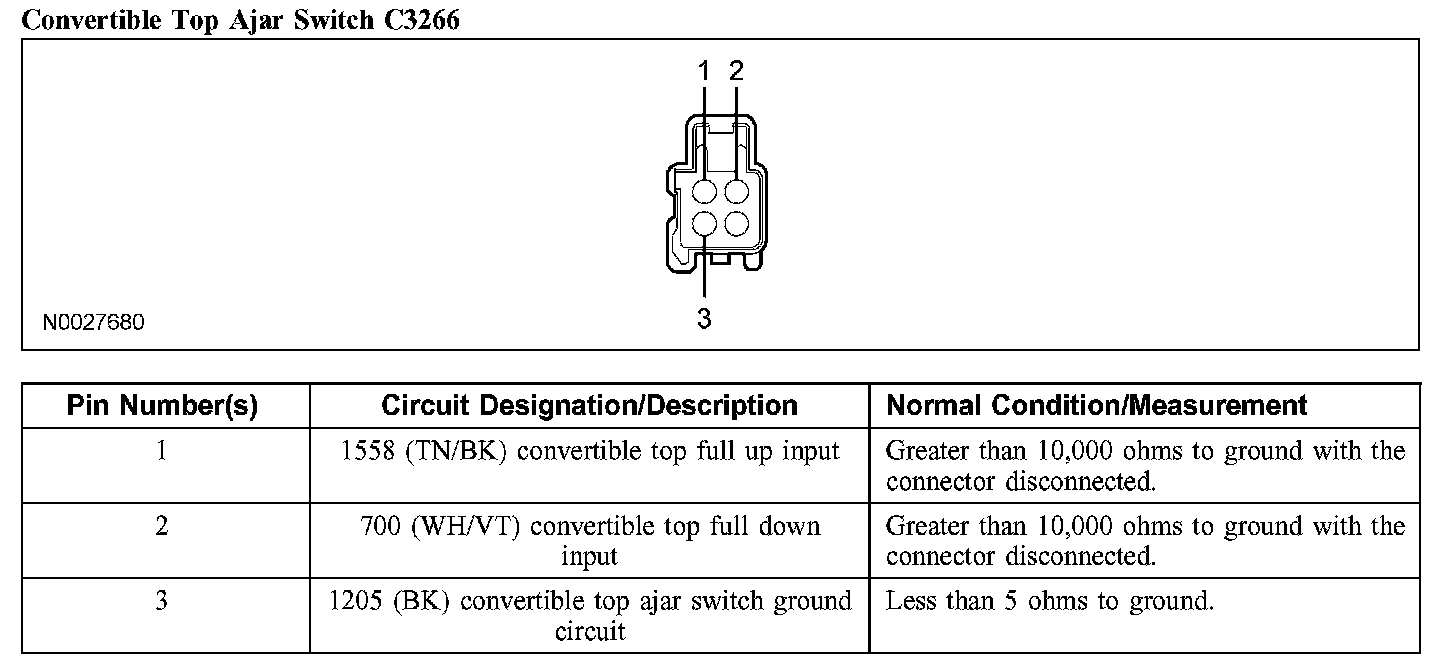

Convertible Top Ajar Switch C3266:
