Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Luggage Compartment Subwoofer C4161, Luggage Compartment Subwoofer C4162

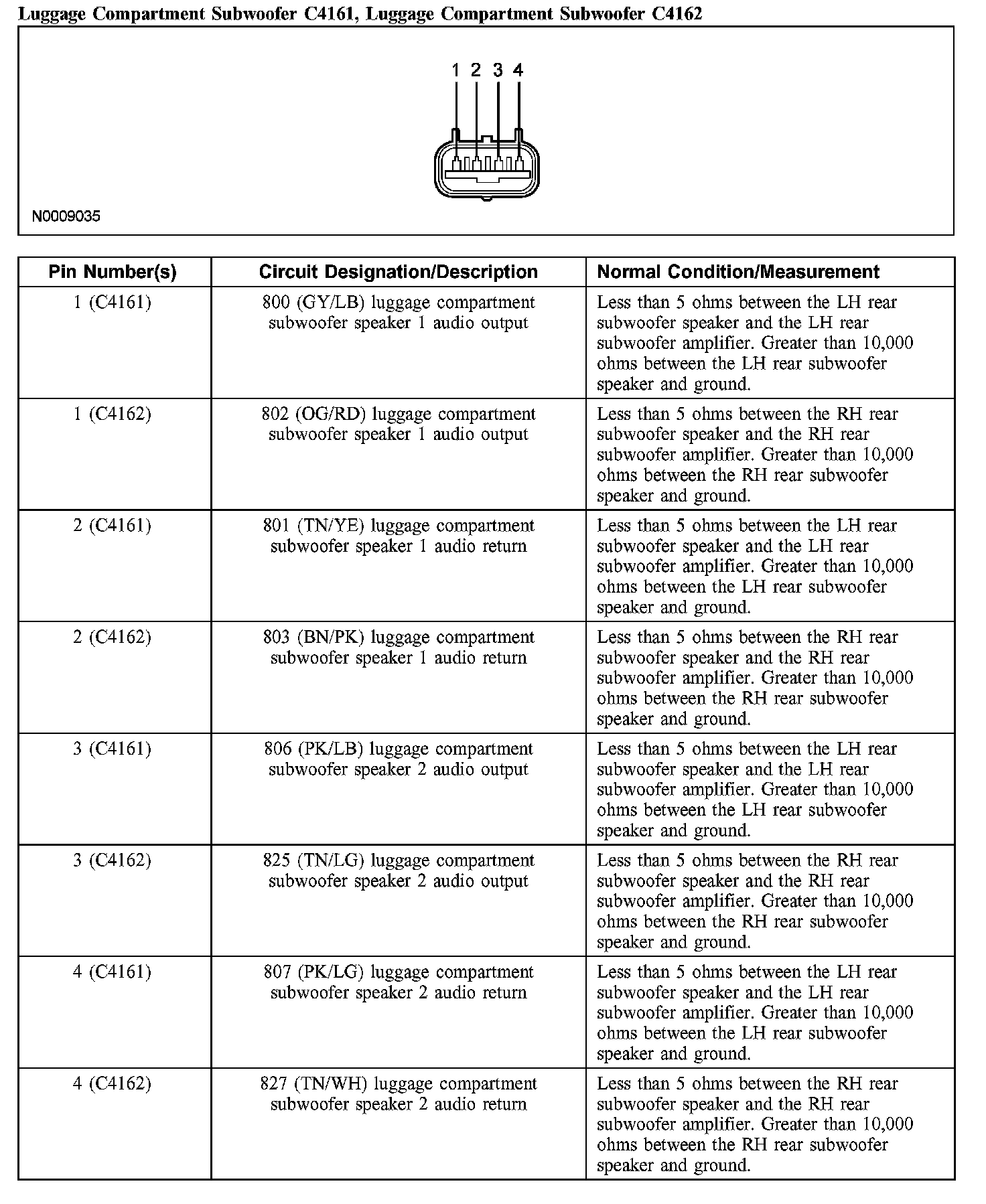

Luggage Compartment Subwoofer C4161, Luggage Compartment Subwoofer C4162

Luggage Compartment Subwoofer C4161, Luggage Compartment Subwoofer C4162:
