LH Rear Speaker C484, RH Rear Speaker C485, LH Front Speaker C523, RH Front Speaker C612

LH Rear Speaker C484, RH Rear Speaker C485, LH Front Speaker C523, RH Front Speaker C612 (Part 1):

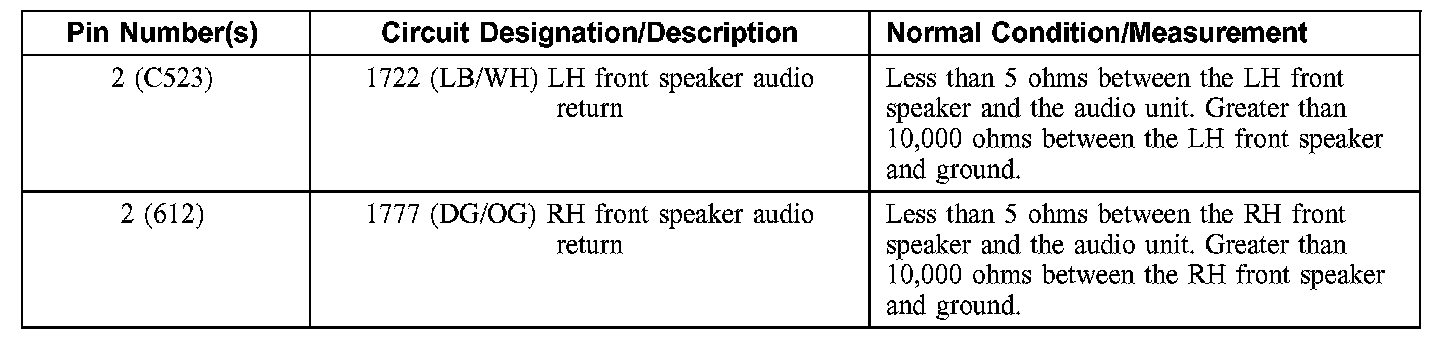

LH Rear Speaker C484, RH Rear Speaker C485, LH Front Speaker C523, RH Front Speaker C612 (Part 2):
