LH Front Subwoofer C536, RH Front Subwoofer C628

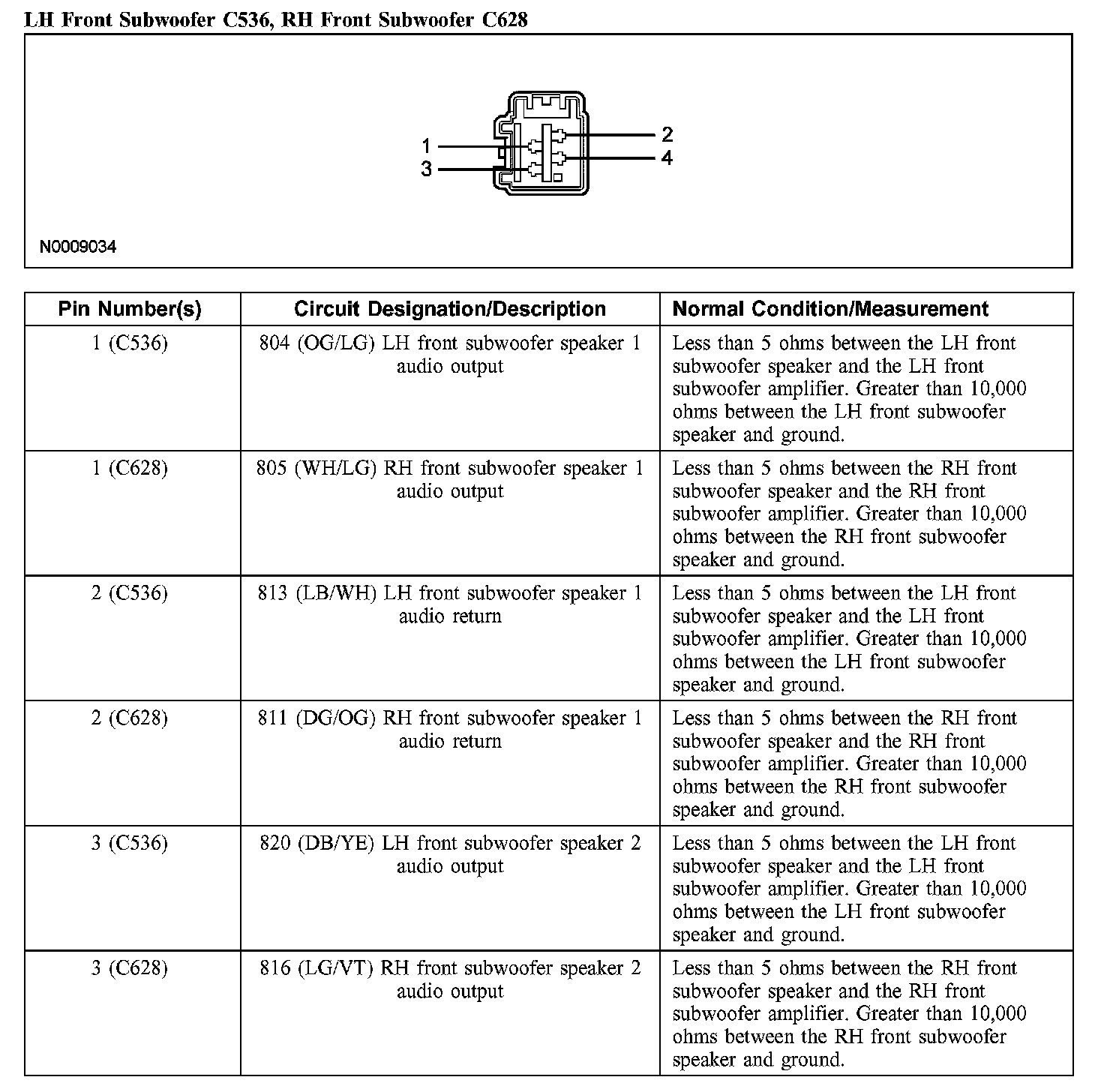

LH Front Subwoofer C536, RH Front Subwoofer C628 (Part 1):

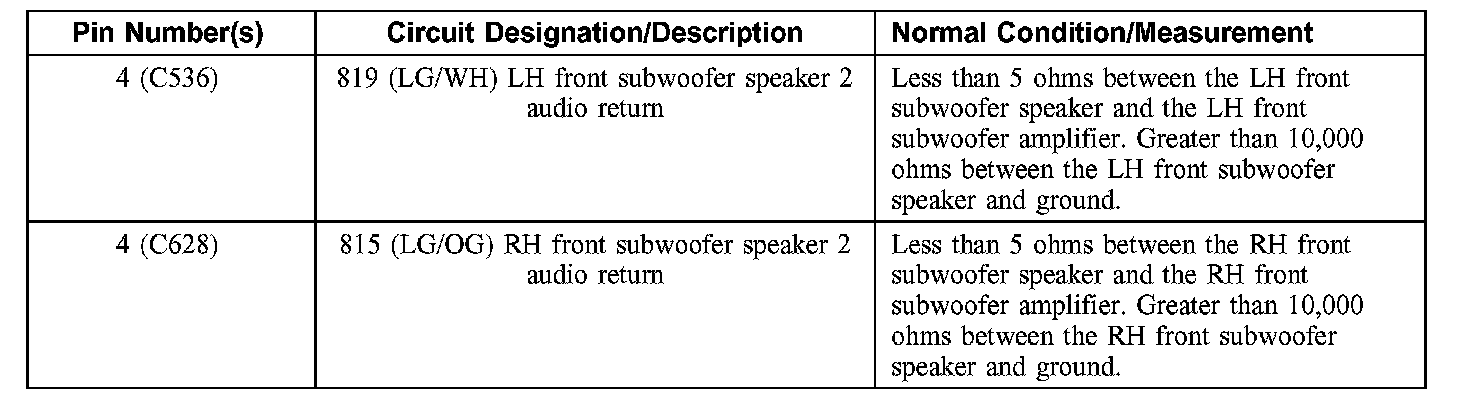

LH Front Subwoofer C536, RH Front Subwoofer C628 (Part 2):
