Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH Front Subwoofer Amplifier C2993b, RH Front Subwoofer Amplifier C2994b, Luggage Compartment Rear Subwoofer Speaker 1 Amplifie

LH Front Subwoofer Amplifier C2993b, RH Front Subwoofer Amplifier C2994b, Luggage Compartment Rear Subwoofer Speaker 1 Amplifie

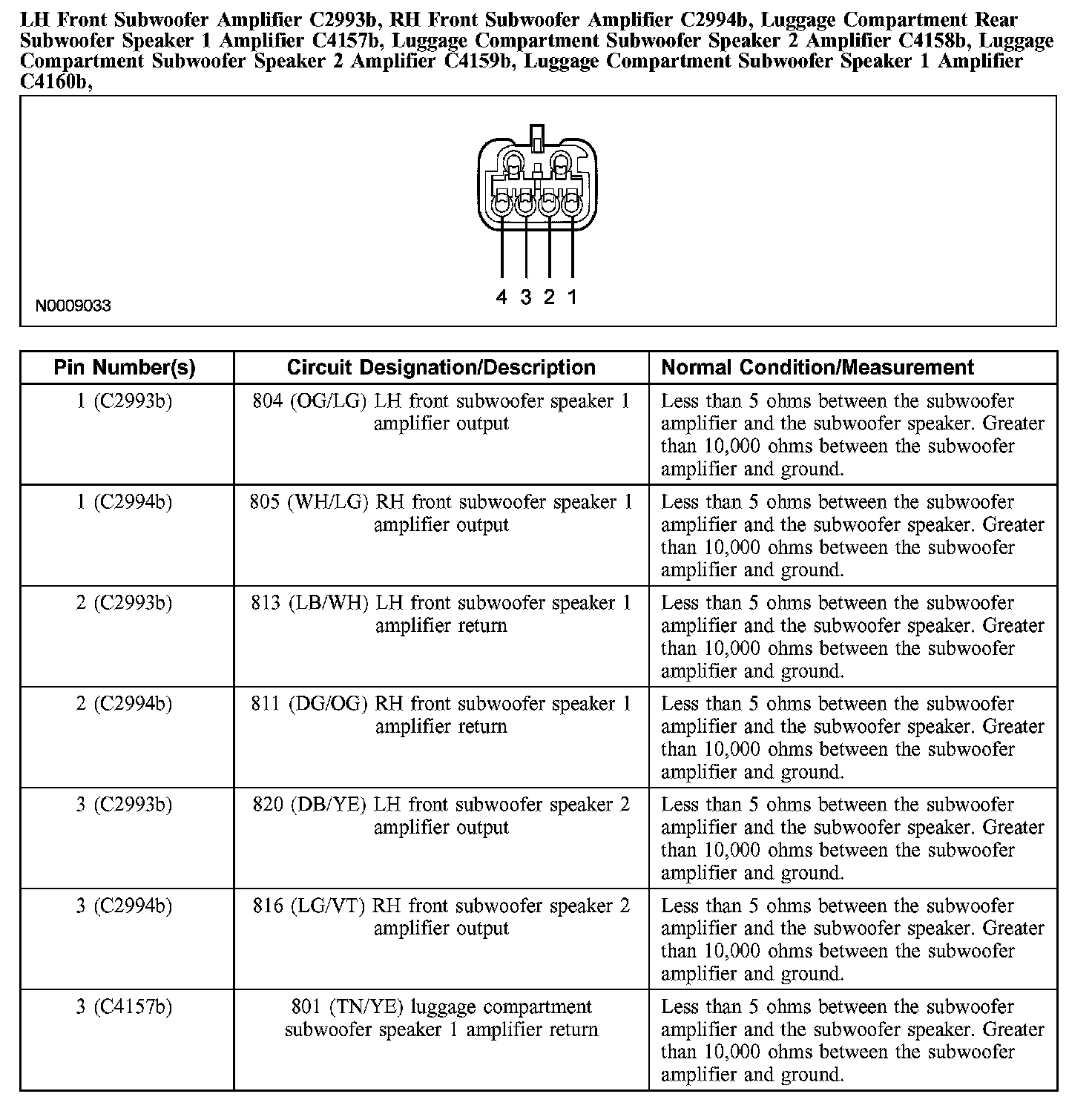

Part 1:



Part 2:
