LH Front Subwoofer Amplifier C2993a, RH Front Subwoofer Amplifier C2994a, Luggage Compartment Subwoofer Speaker 1 Amplifier C41

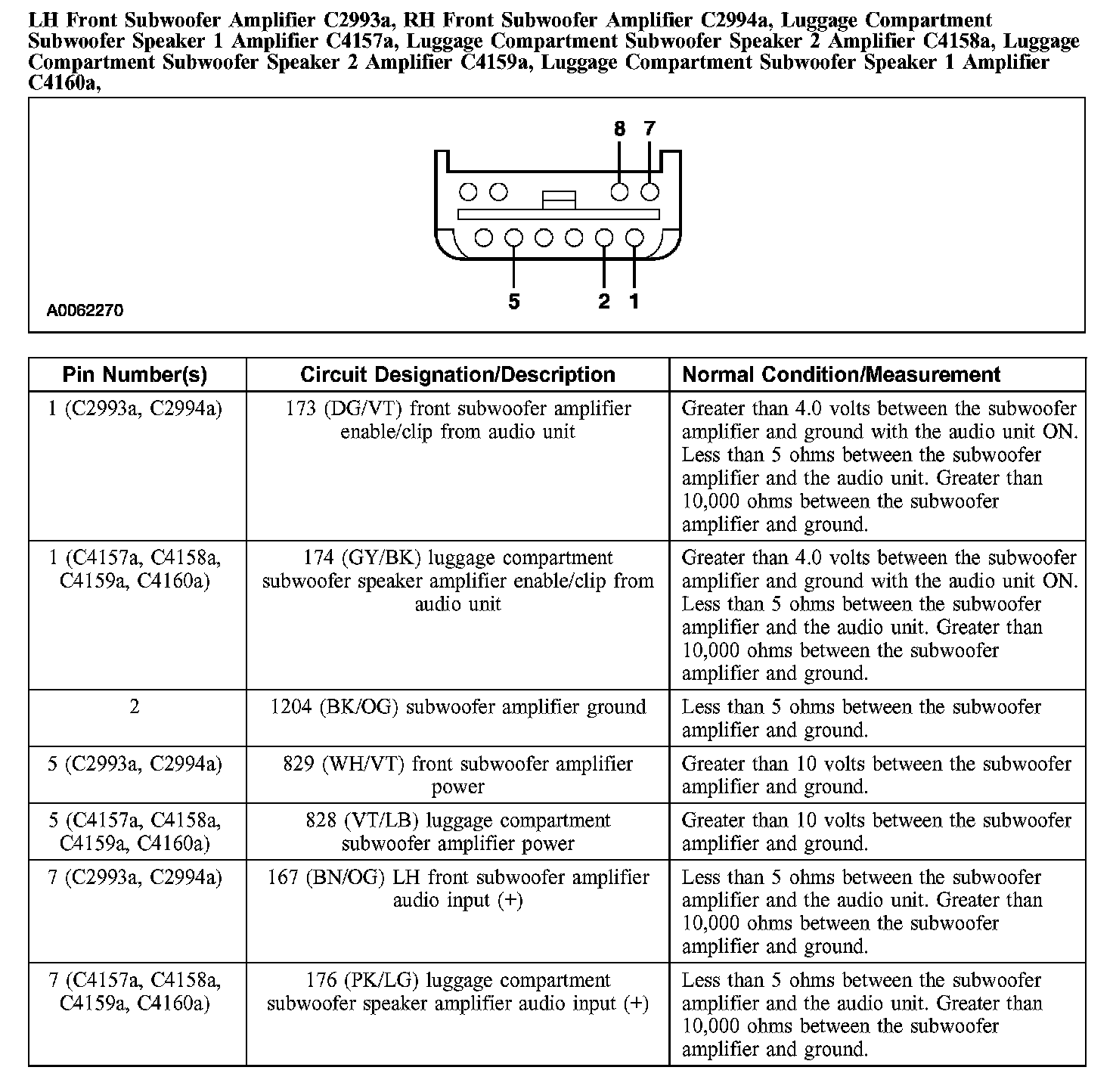

Part 1:



Part 2:
