Connector Circuit Reference
>>
Passive Anti Theft (PATS)
Passive Anti Theft (PATS)

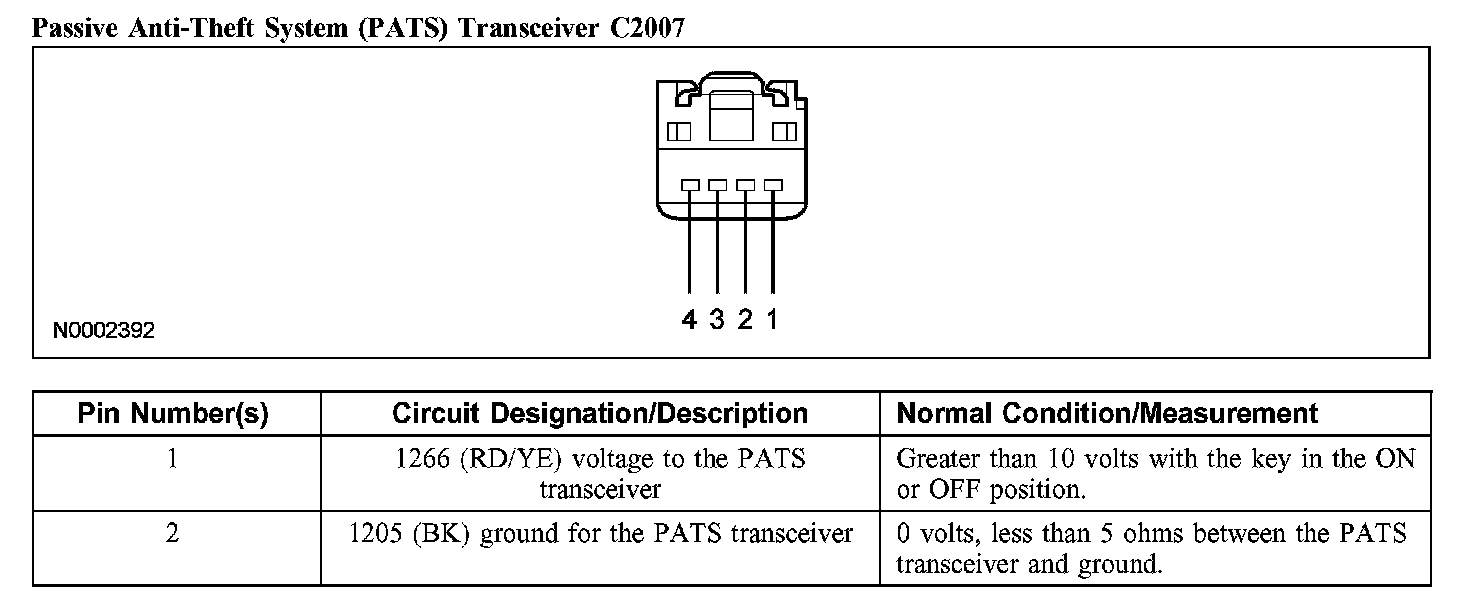

Passive Anti-Theft System (PATS) Transceiver C2007 (Part 1):

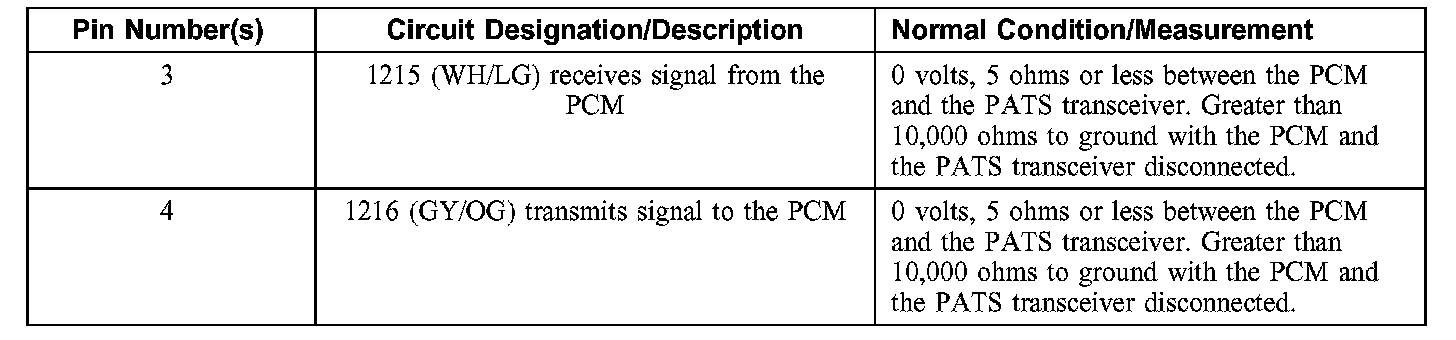

Passive Anti-Theft System (PATS) Transceiver C2007 (Part 2):
