Test A

PINPOINT TEST A: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - ANTI-LOCK BRAKE CONTROL MODULE

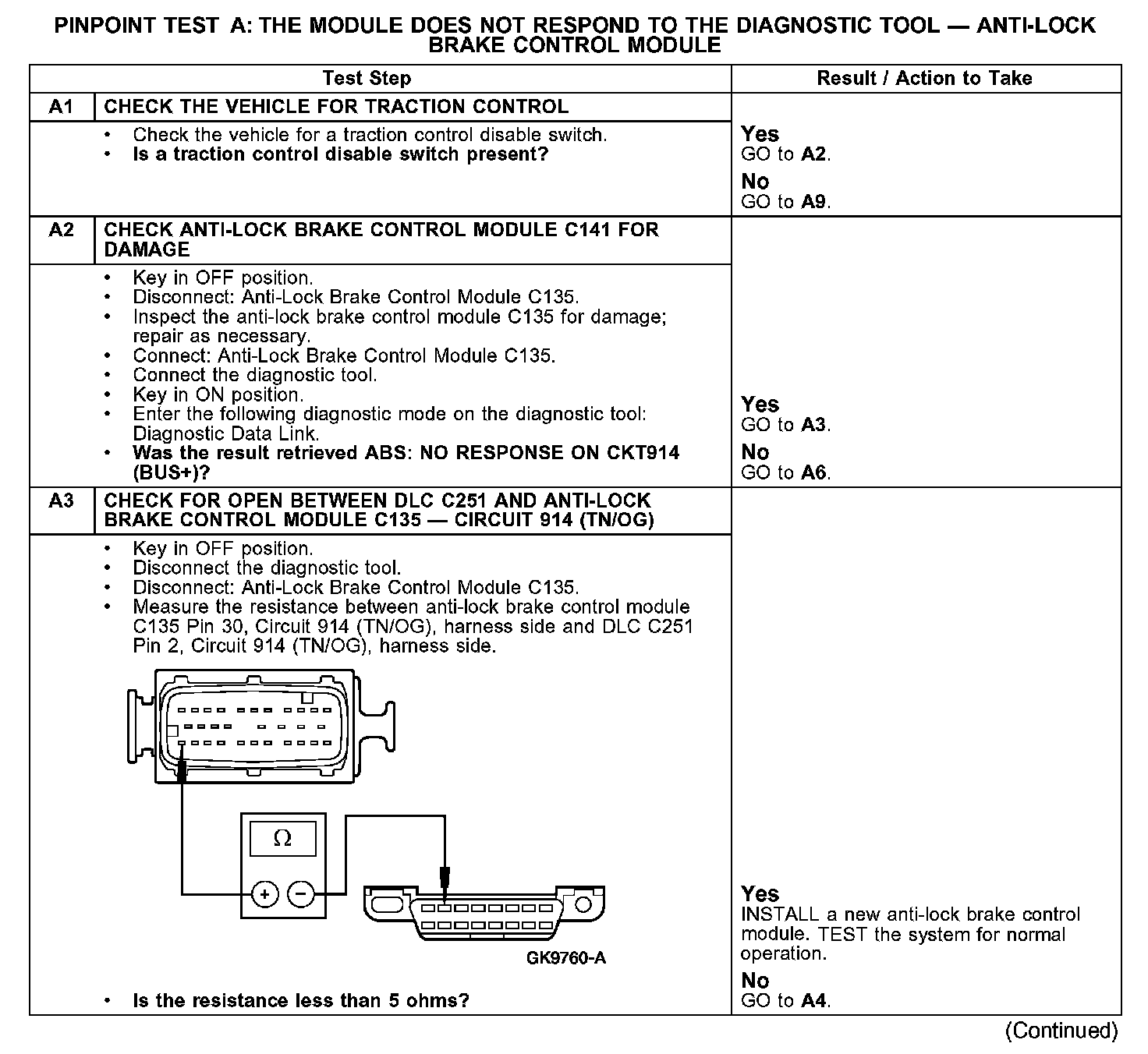

Test A1-A3:






Test A4-A6:

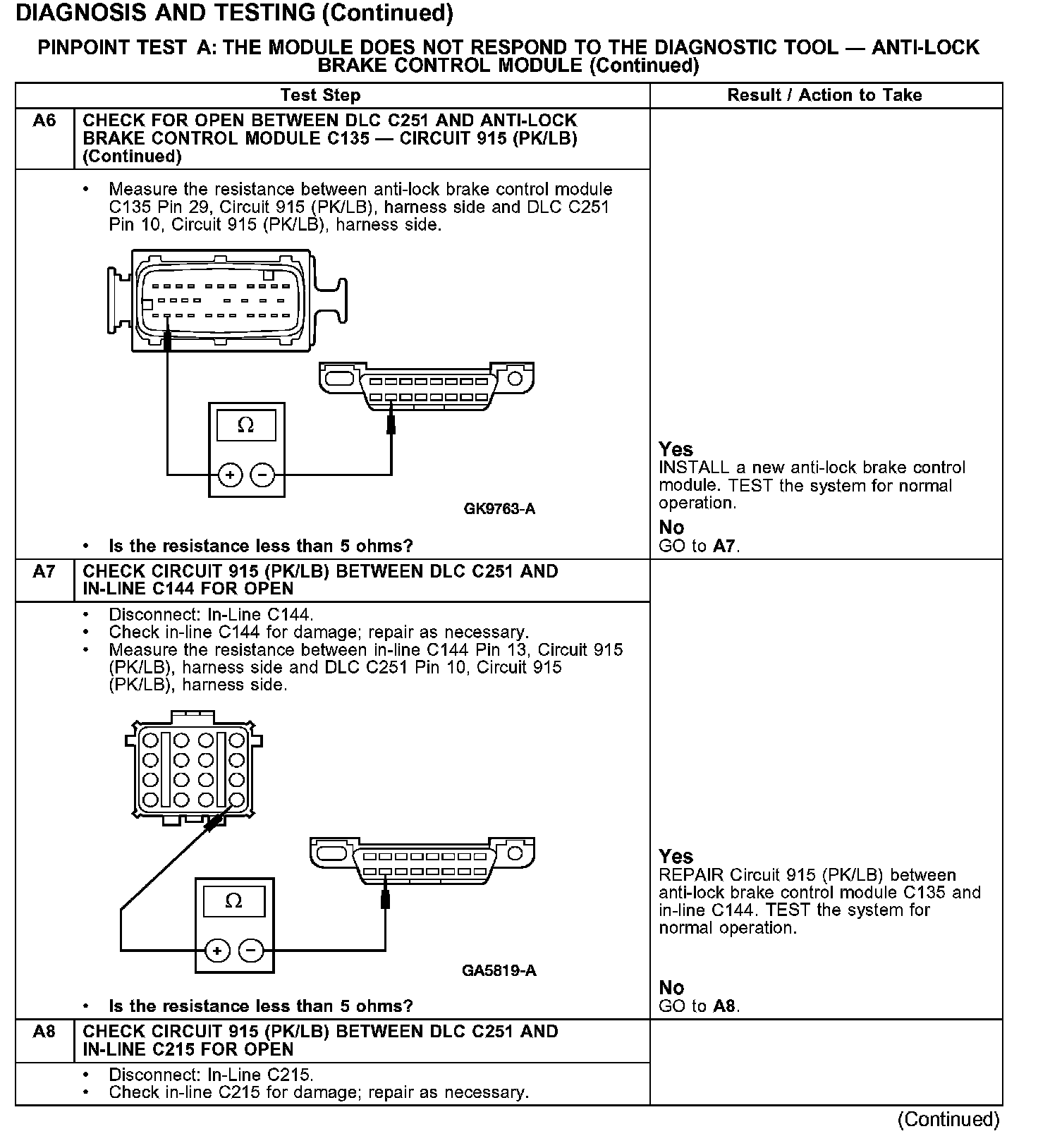

Test A6-A8:

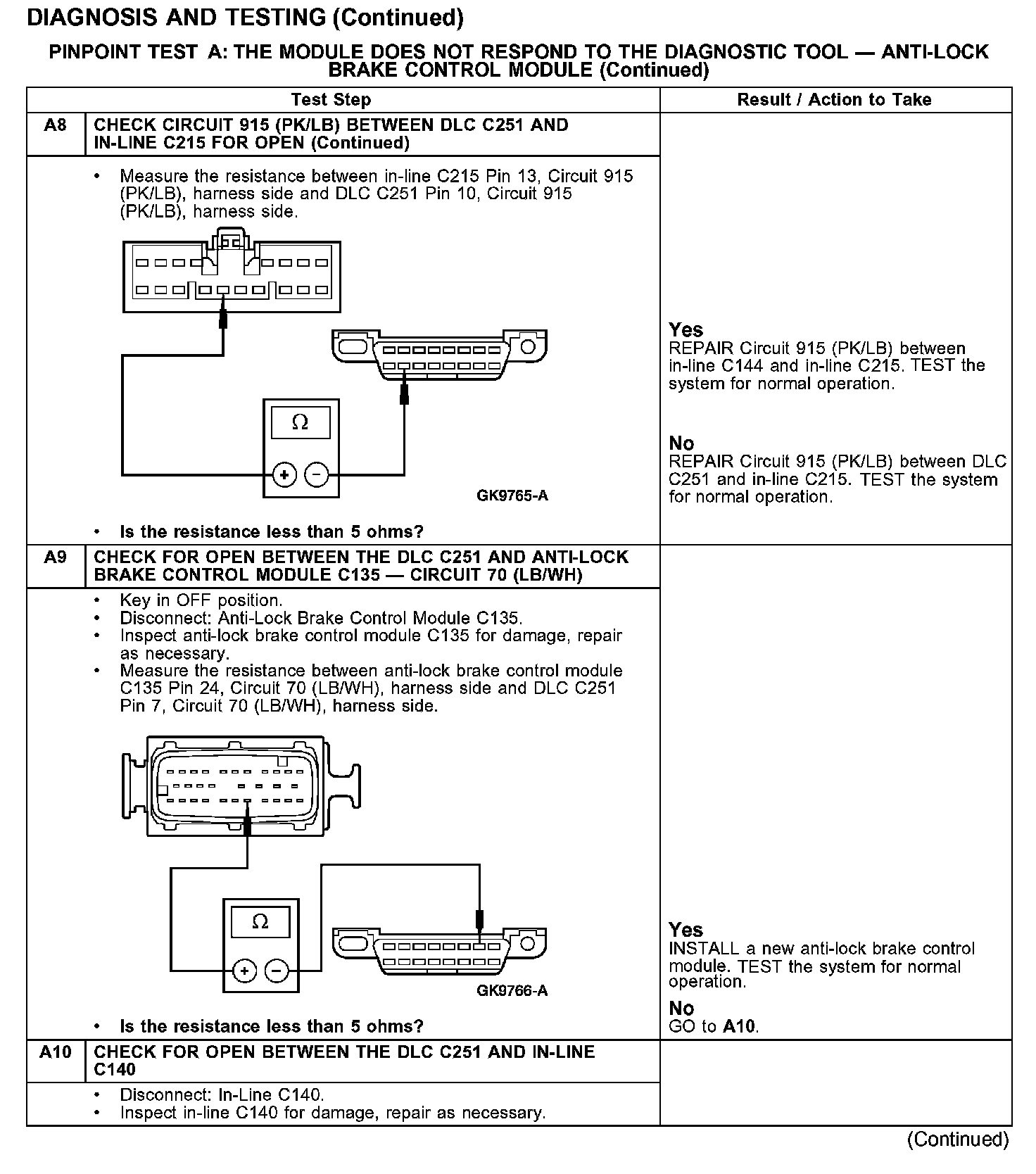

Test A8-A10:






Test A10-A11:
