Test C
Test C

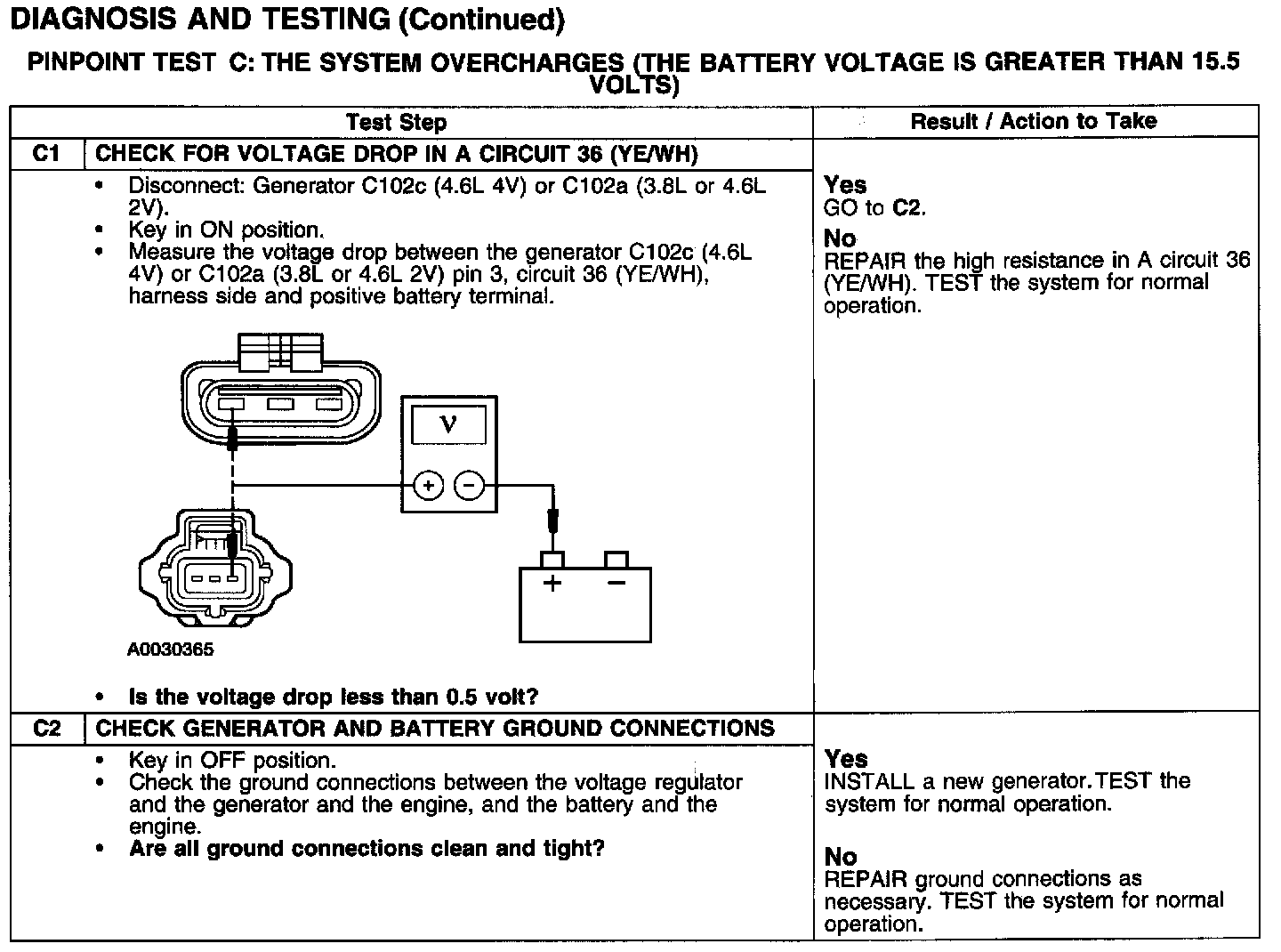

PINPOINT TEST C: THE SYSTEM OVERCHARGES (THE BATTERY VOLTAGE IS GREATER THAN 15.5 VOLTS)
Test C1-C2:
