PINPOINT TEST B: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - GENERIC ELECTRONIC MODULE (GEM)

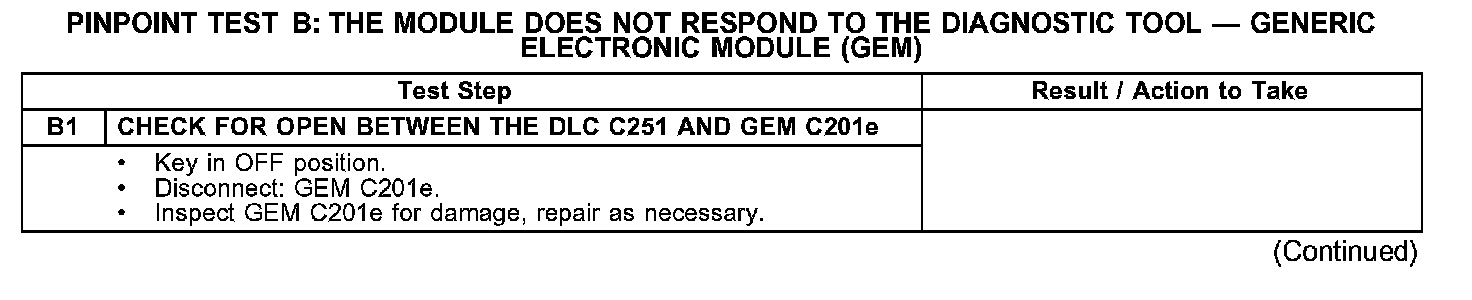

Test B1:

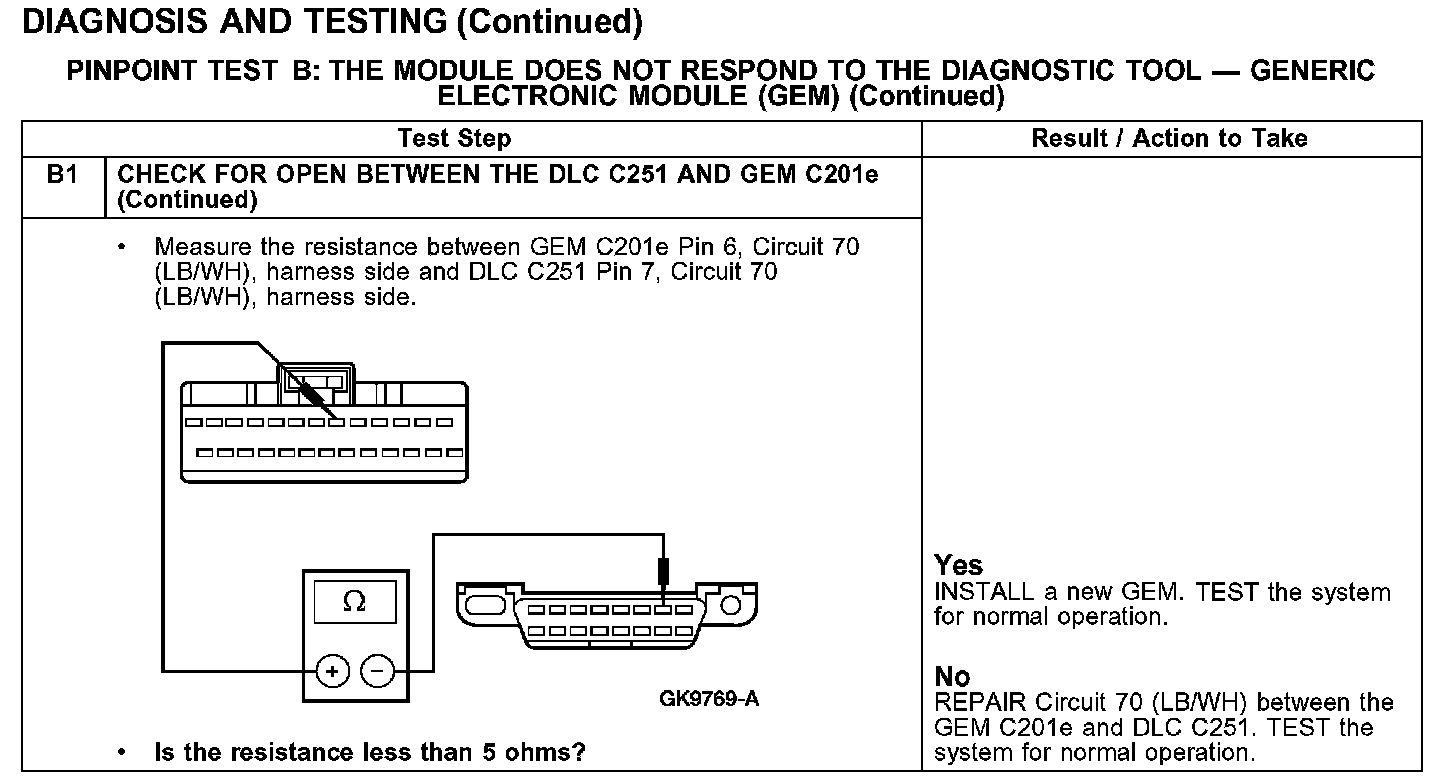

Test B1 Continued:
