FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2004
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test F
Test F
PINPOINT TEST F: THE
CHARGING SYSTEM
WARNING INDICATOR LAMP FLICKERS OR IS INTERMITTENT

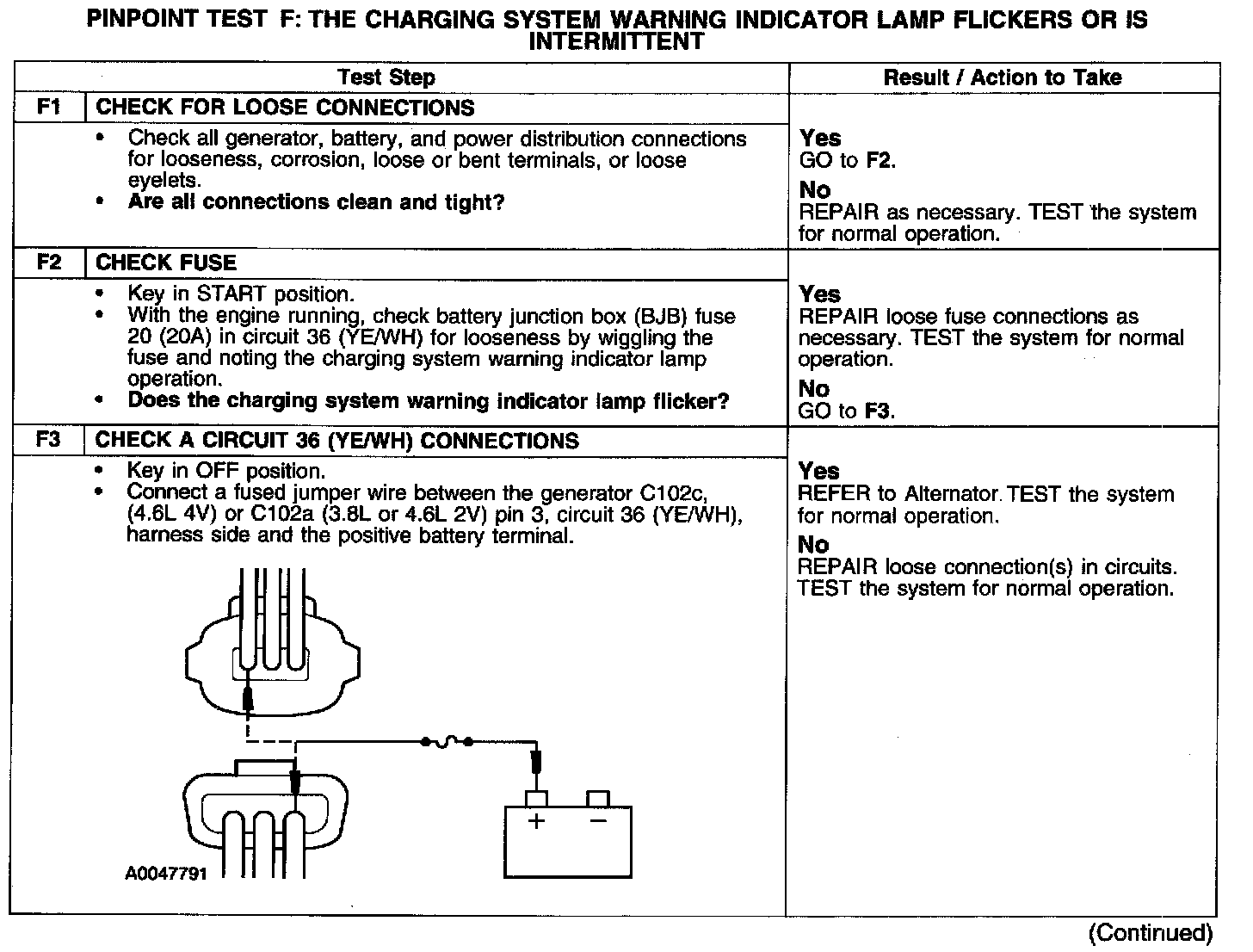

Test F1-F3:

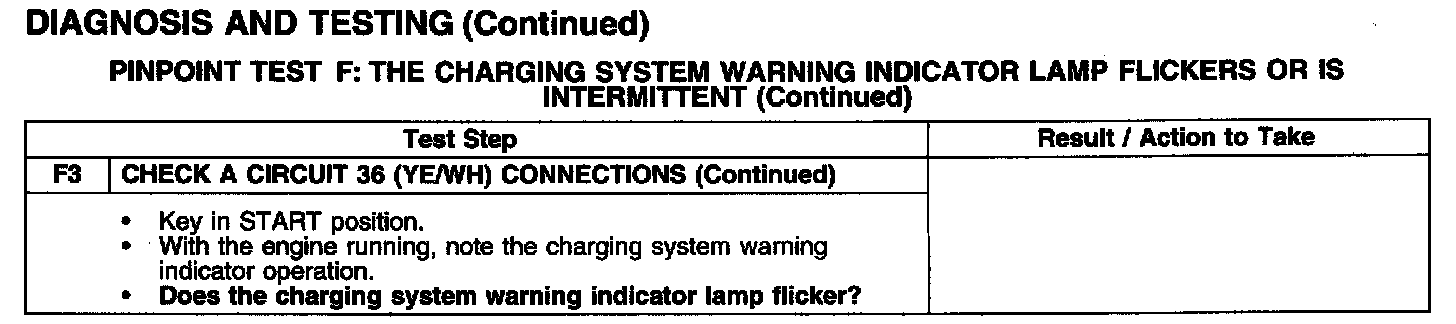

Test F3 Continued:
