EGR Valve: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) VALVE

REMOVAL

NOTE: The 4.6L, 2V is shown. The 3.8L is similar.

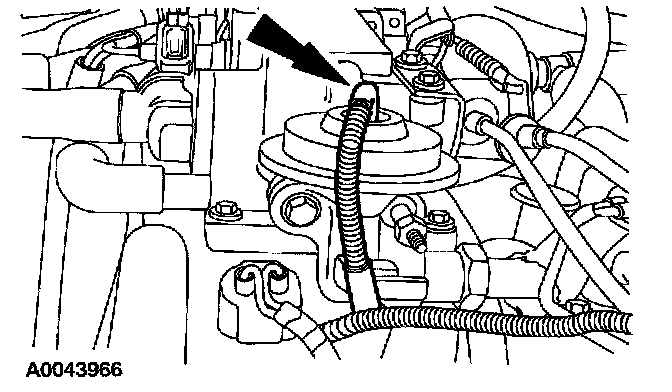

1. Disconnect the vacuum hose.

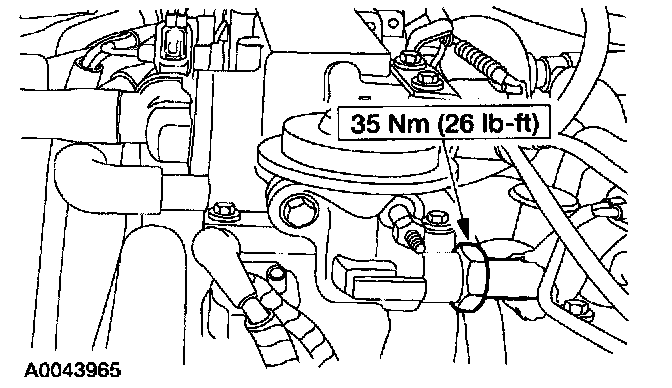

2. Disconnect the EGR tube from the EGR valve.

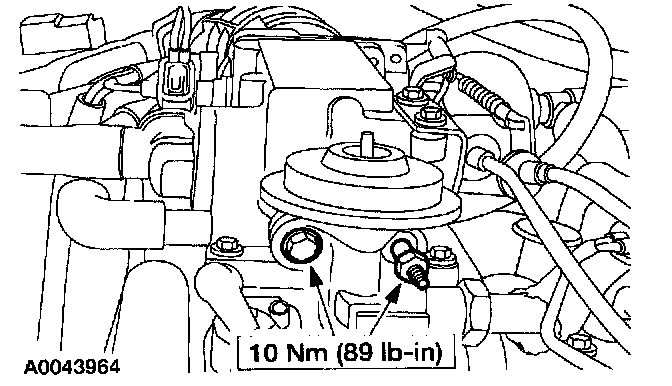

3. Remove the two bolts, the EGR valve and gasket.

INSTALLATION

1. NOTE: Install a new gasket.

To install, reverse the removal procedure.
