PINPOINT TEST H: THE INTERMITTENT WIPER SPEED DOES NOT OPERATE CORRECTLY (HIGH/LOW SPEEDS OK)

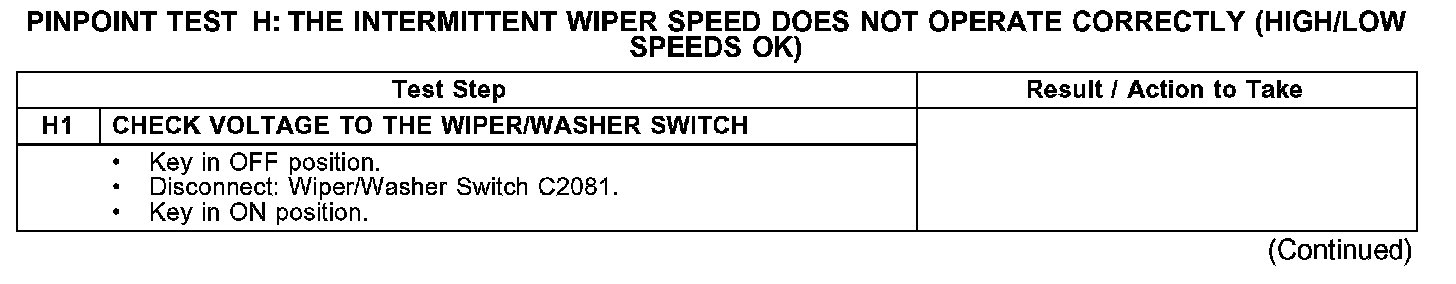

Test H1:

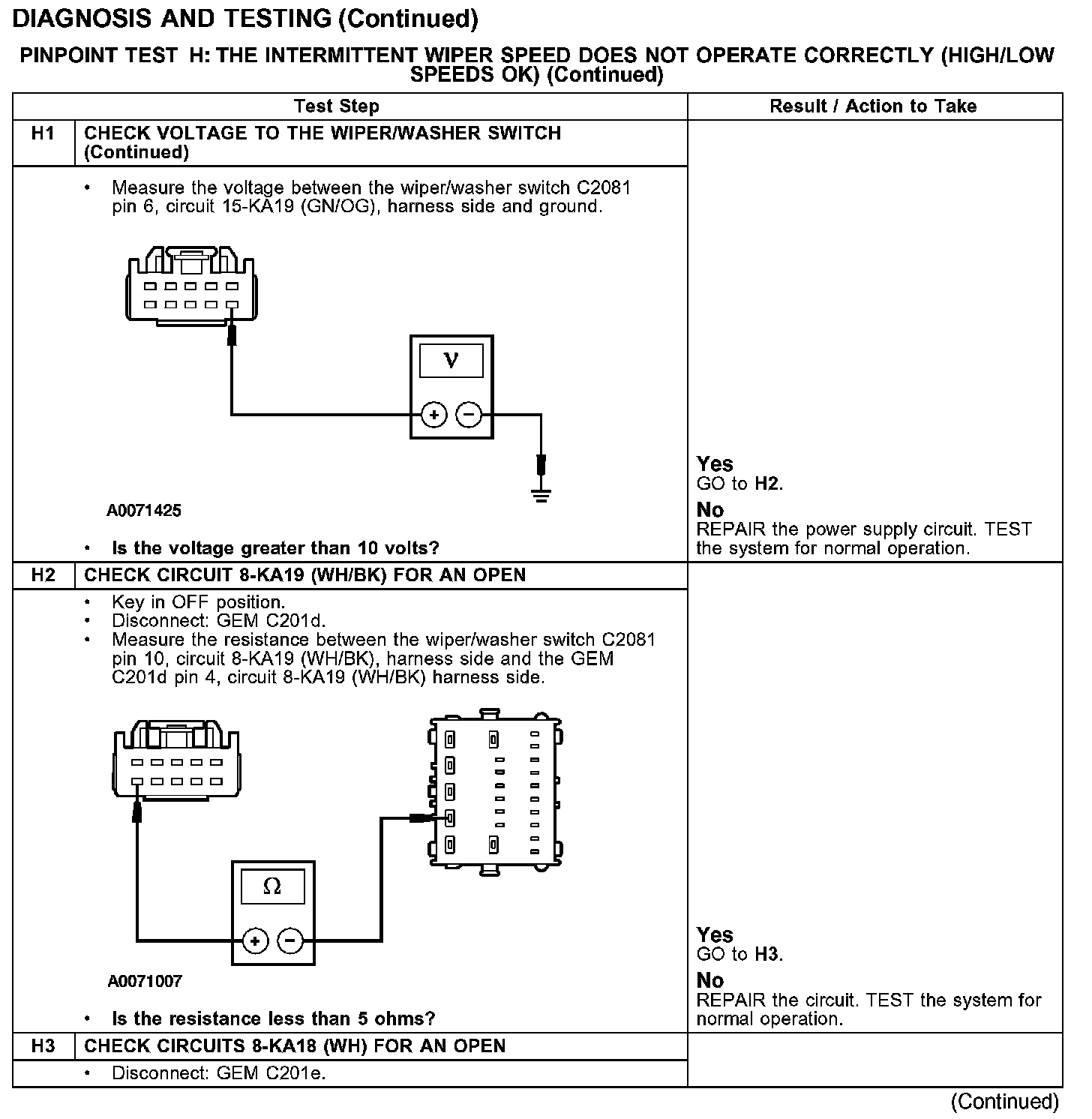

Test H1-H3:

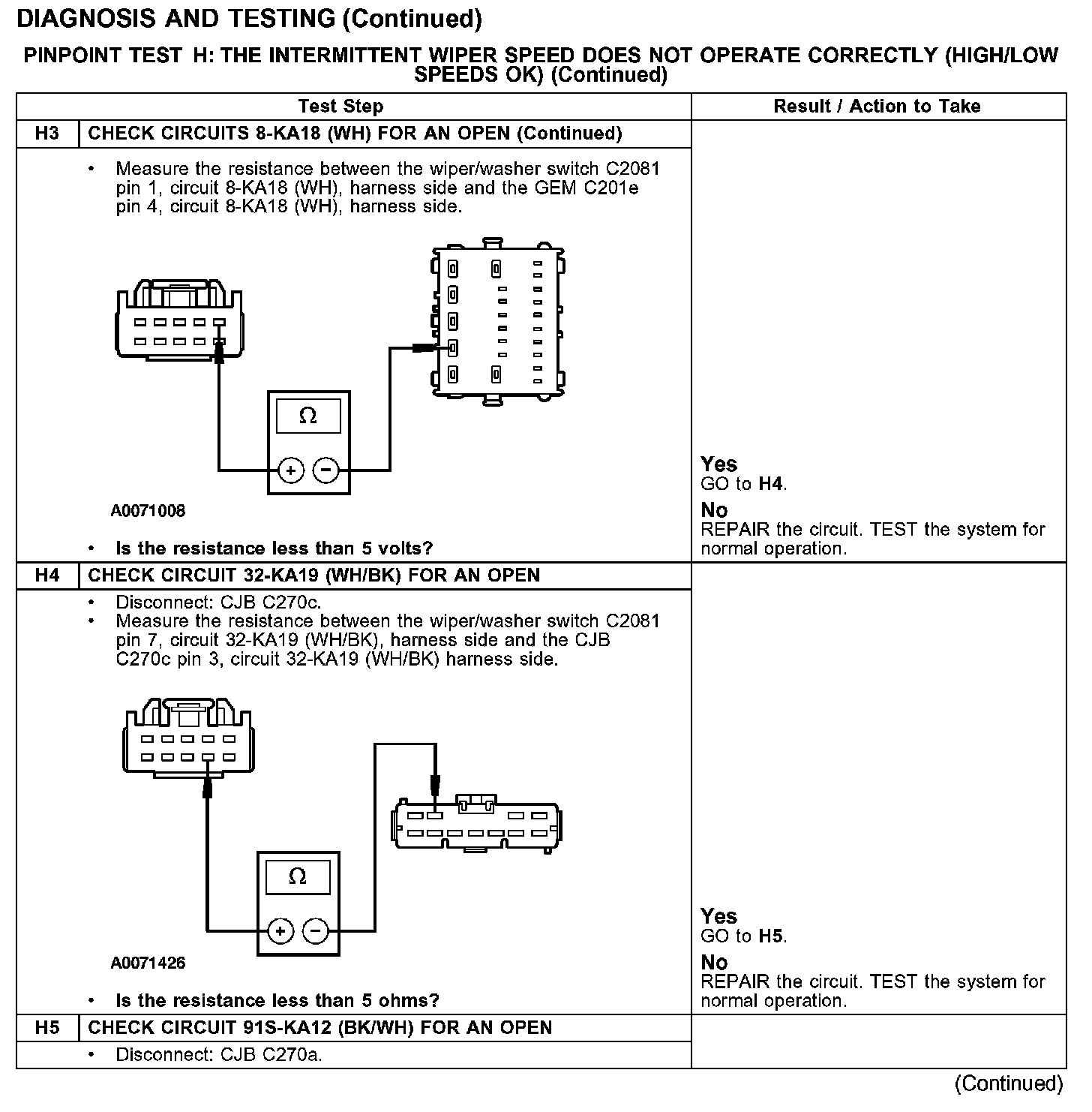

Test H3-H5:

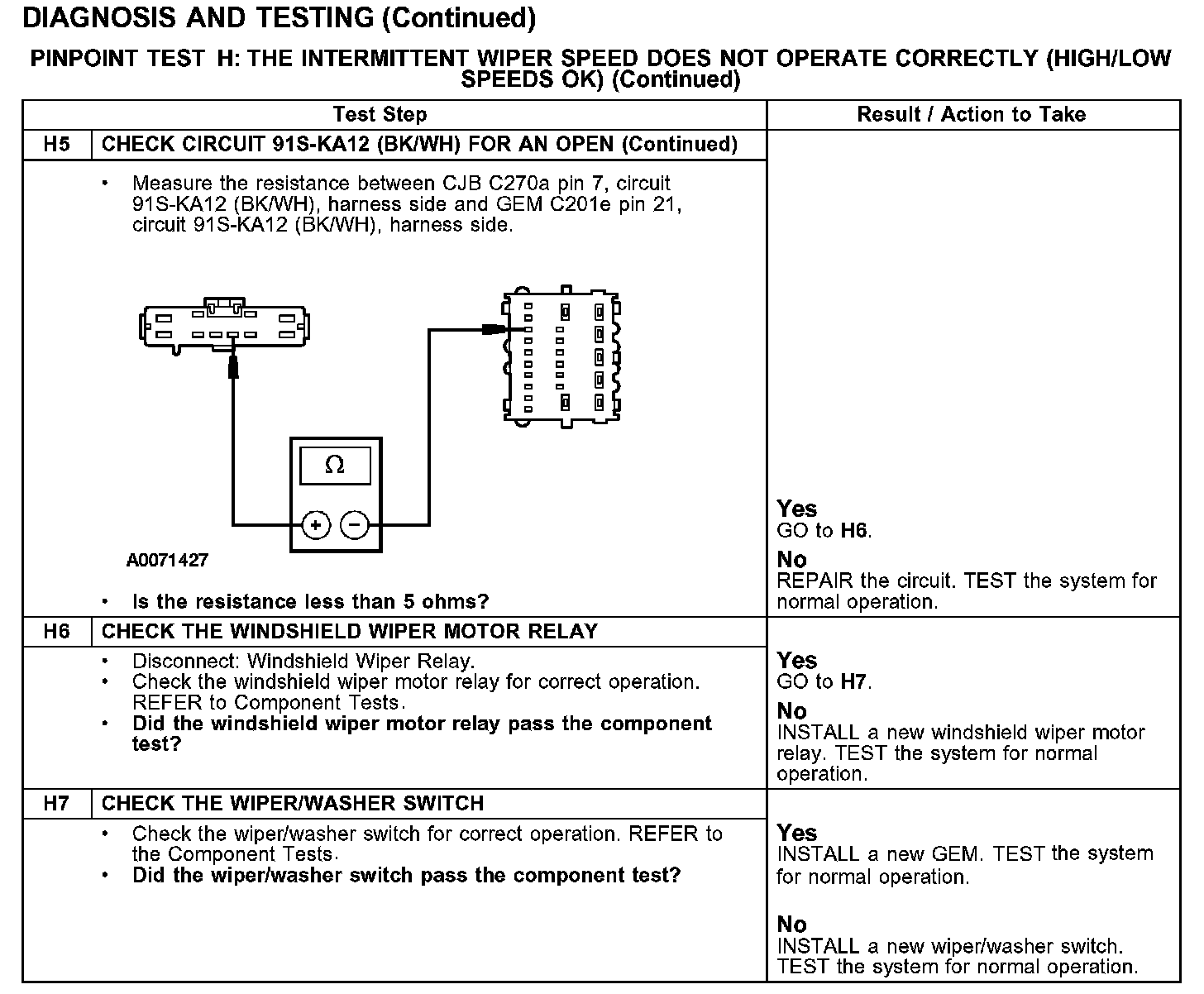

Test H5-H7:
