Test F
Test F
PINPOINT TEST F: THE REAR WINDOW WIPER IS INOPERATIVE

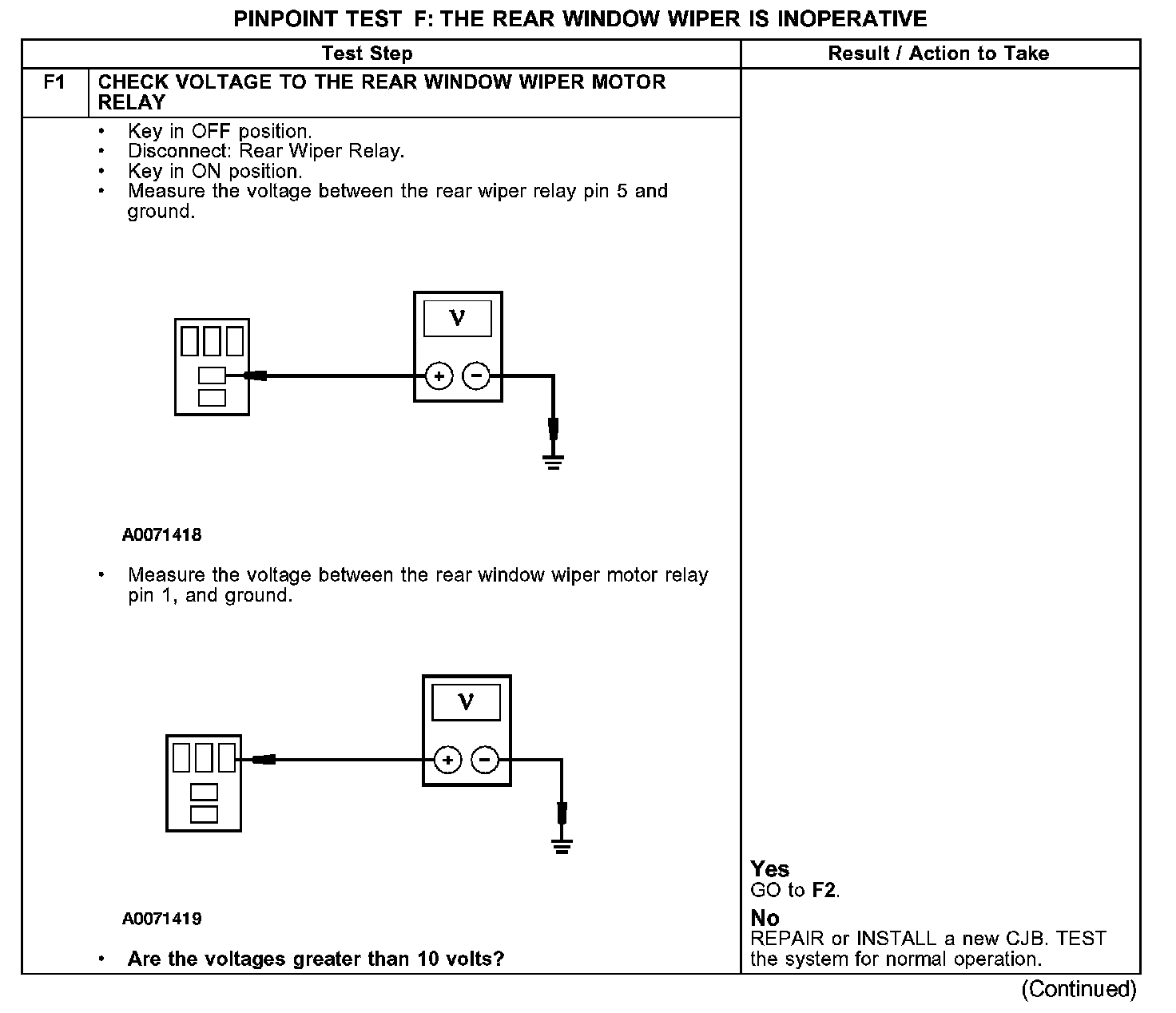

Test F1:

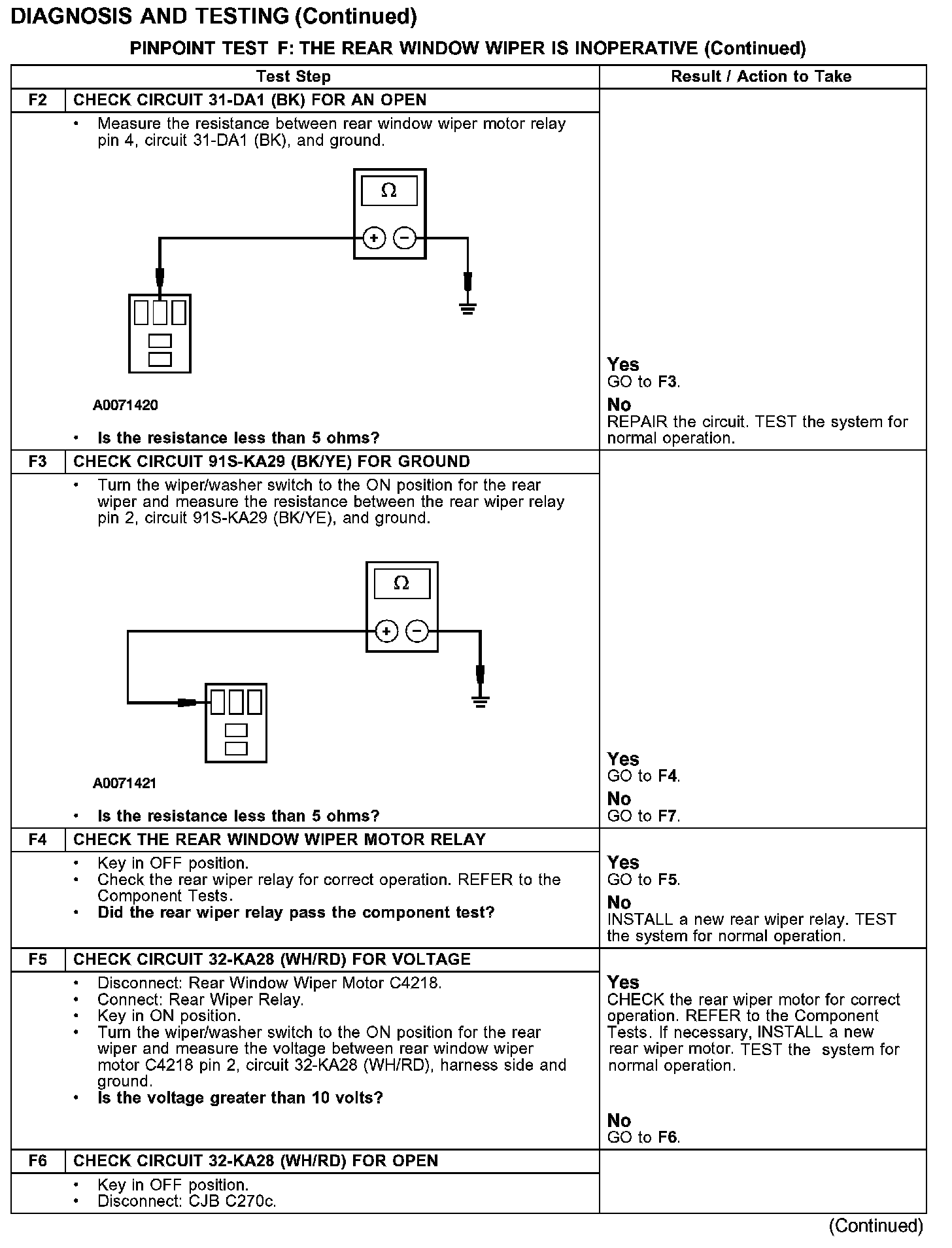

Test F2-F6:

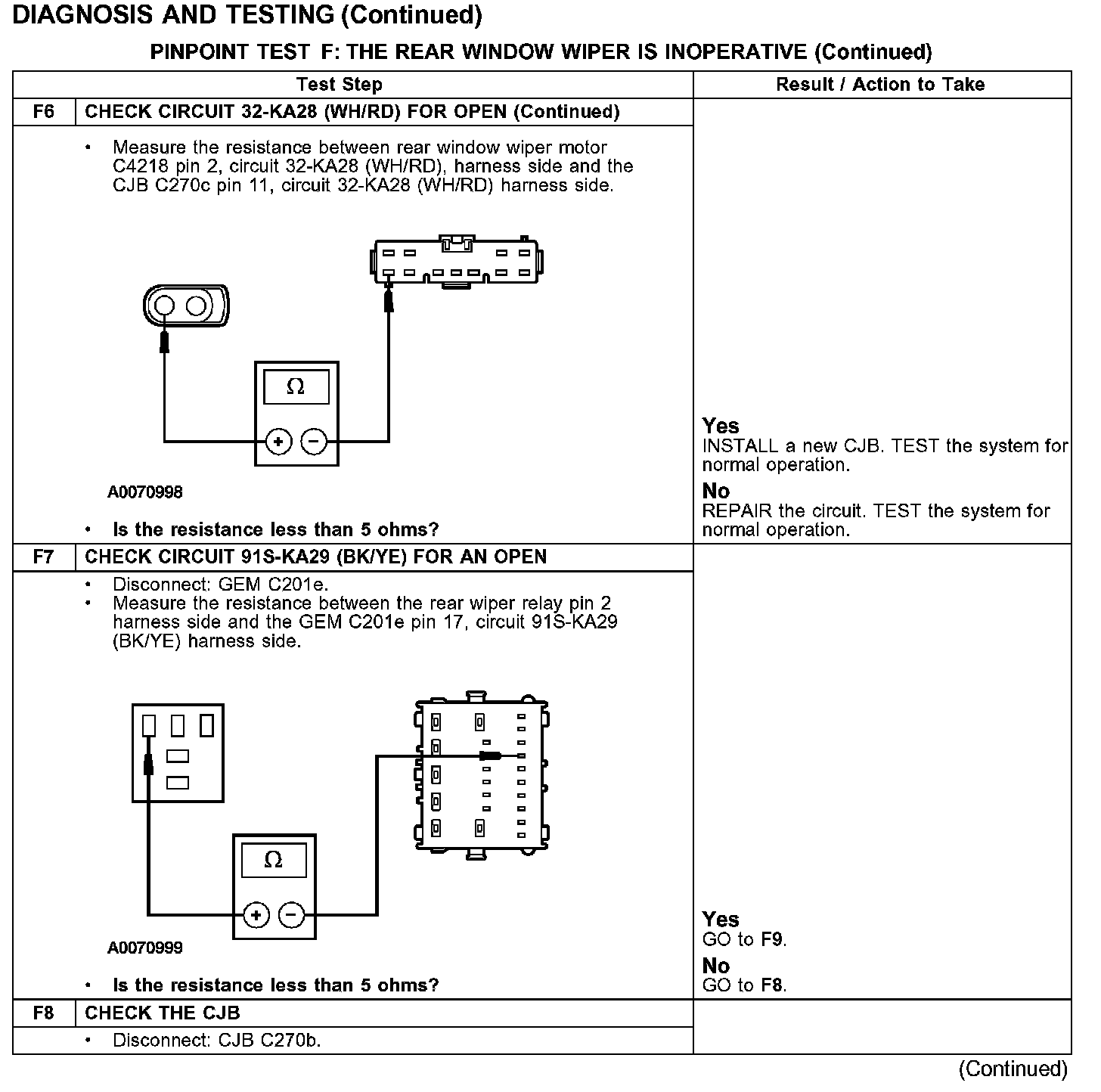

Test F6-F8:

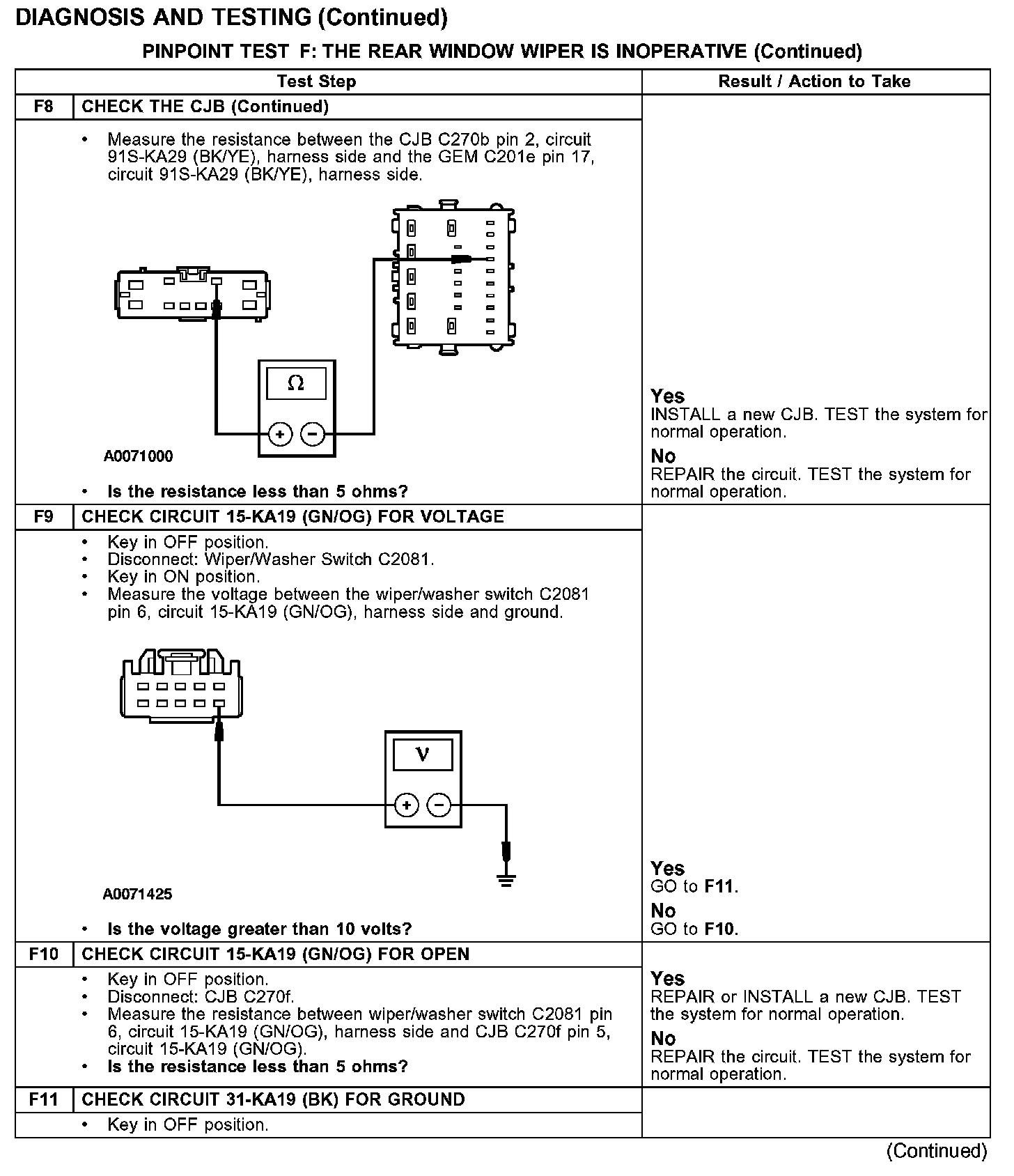

Test F8-F11:
Test F11-F13:
