PINPOINT TEST D: THE WASH AND WIPE FUNCTION ARE INOPERATIVE

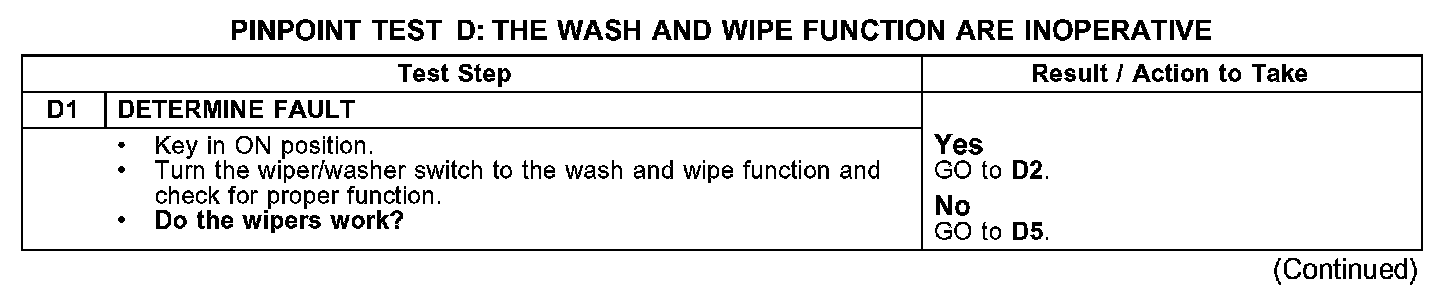

Test D1:

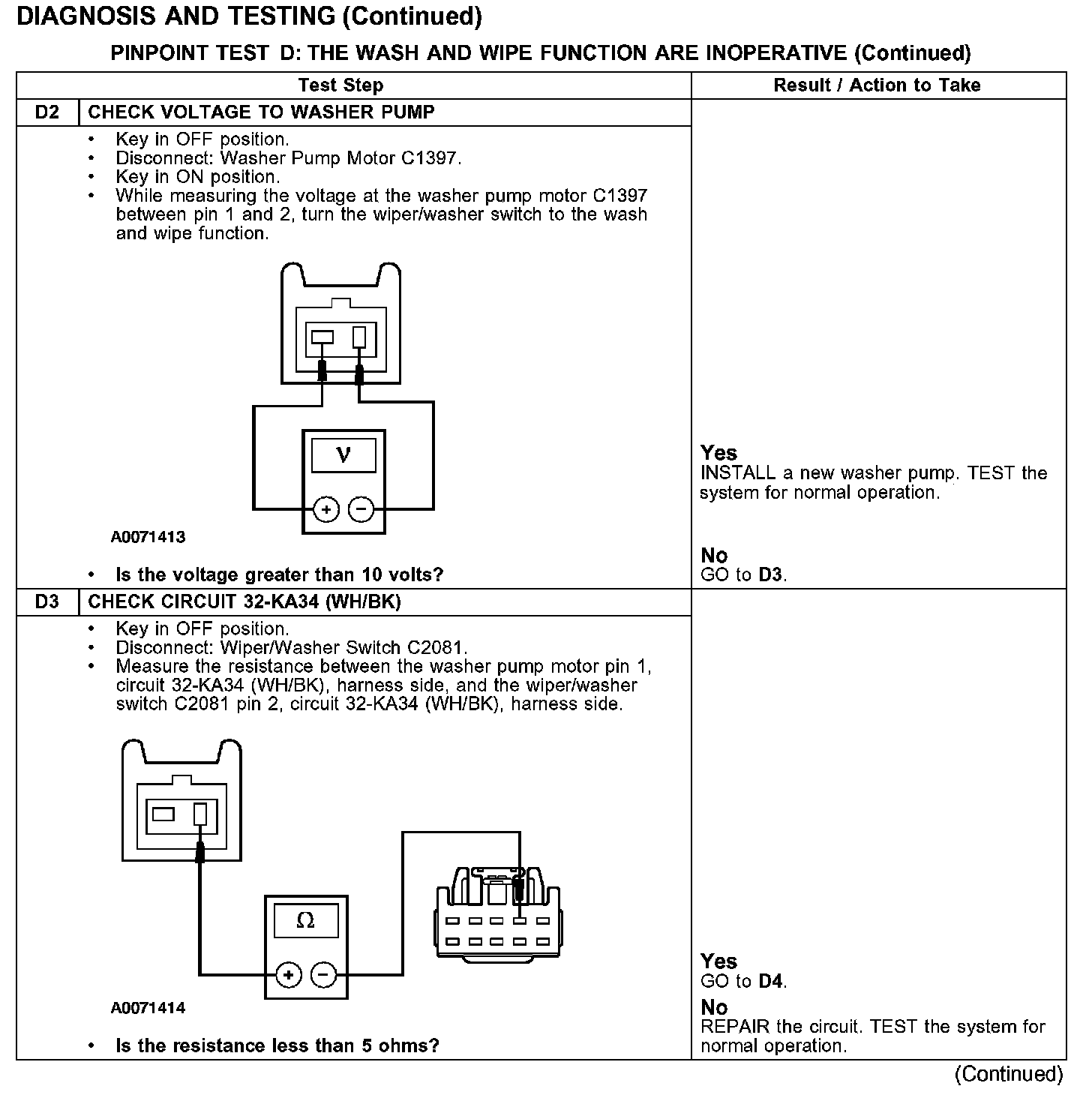

Test D2-D3:

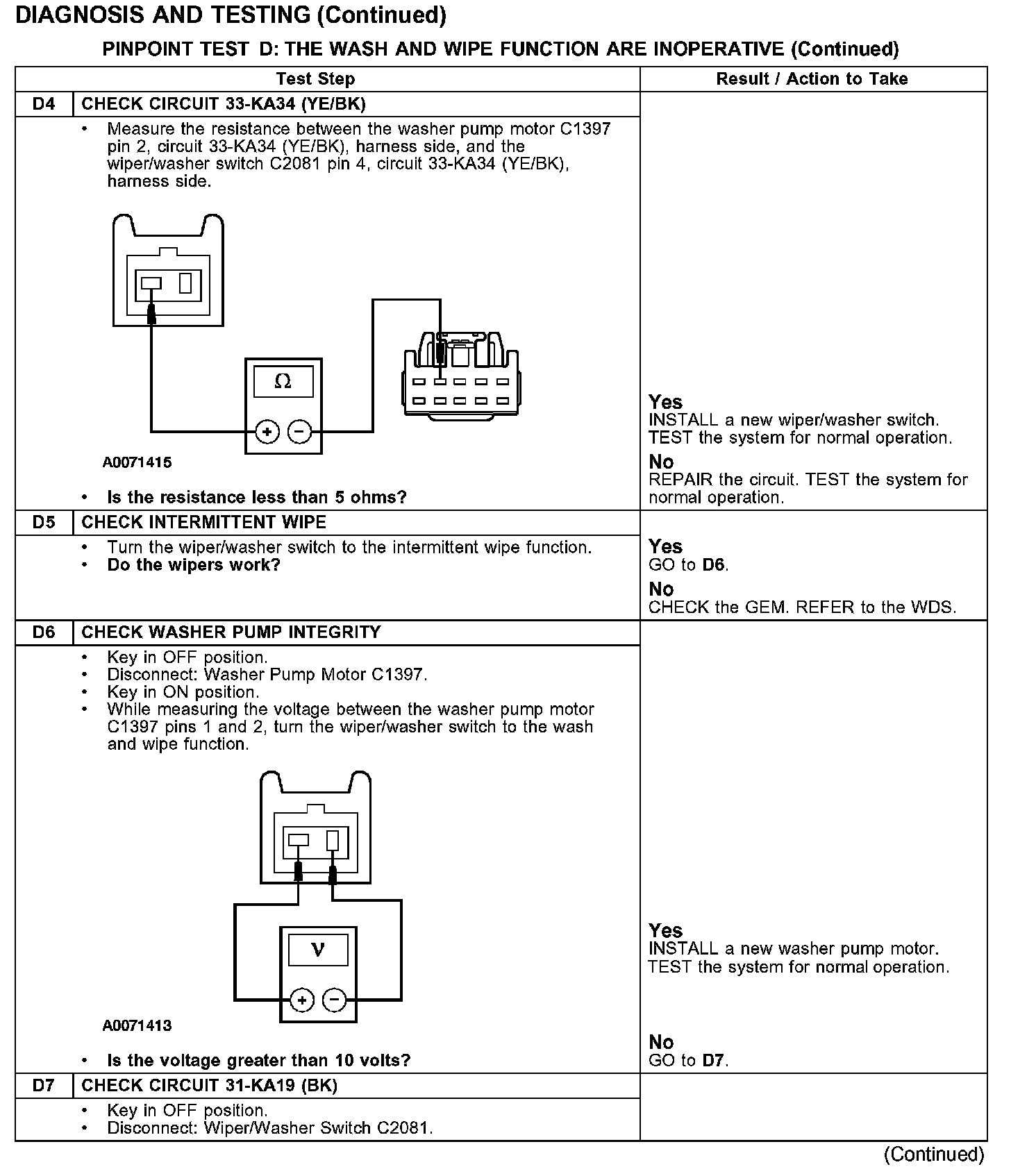

Test D4-D7:

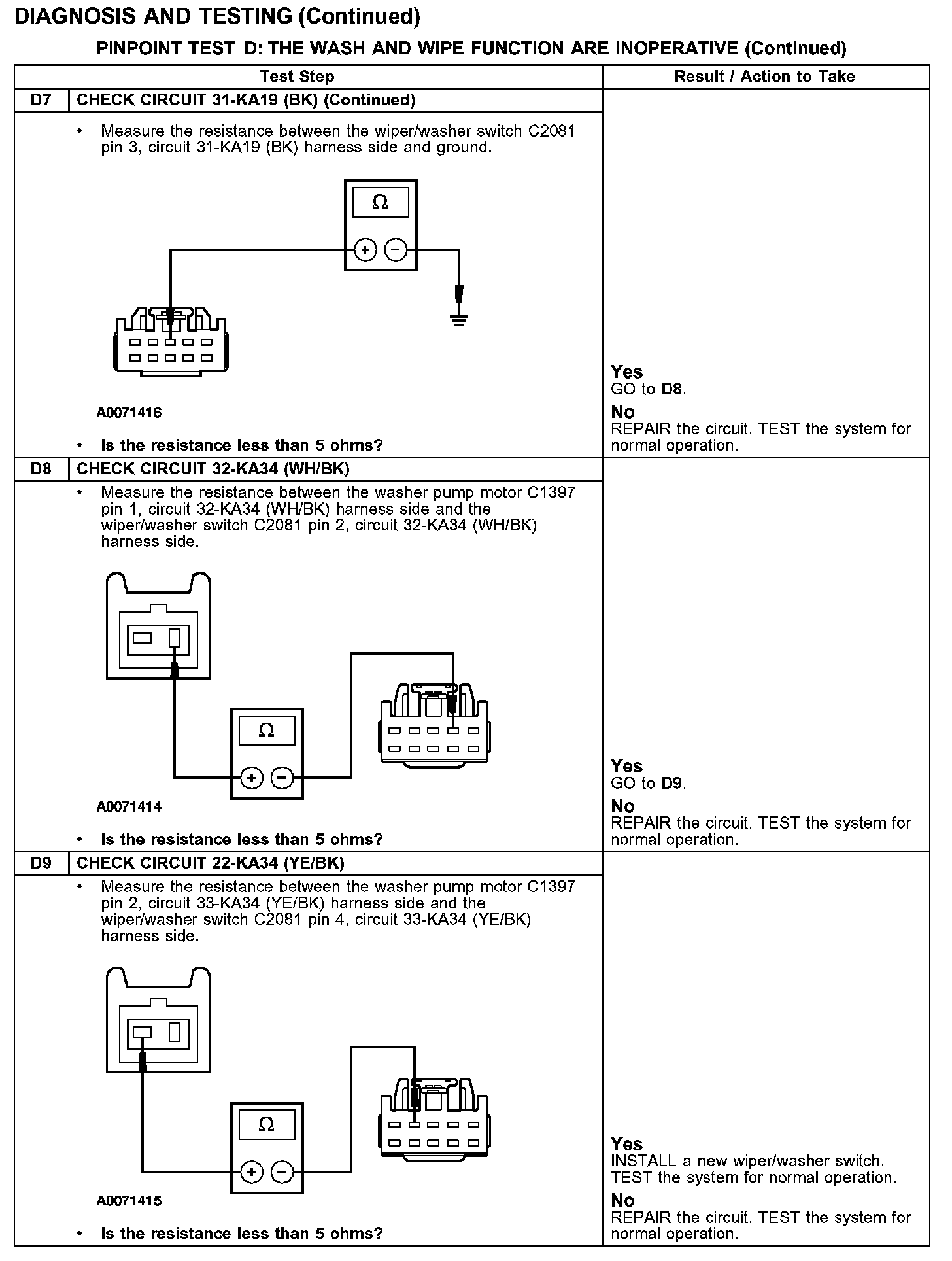

Test D7-D9:
