Front Door Glass Top Run

FRONT DOOR GLASS TOP RUN

REMOVAL
1. Remove the front door window glass.

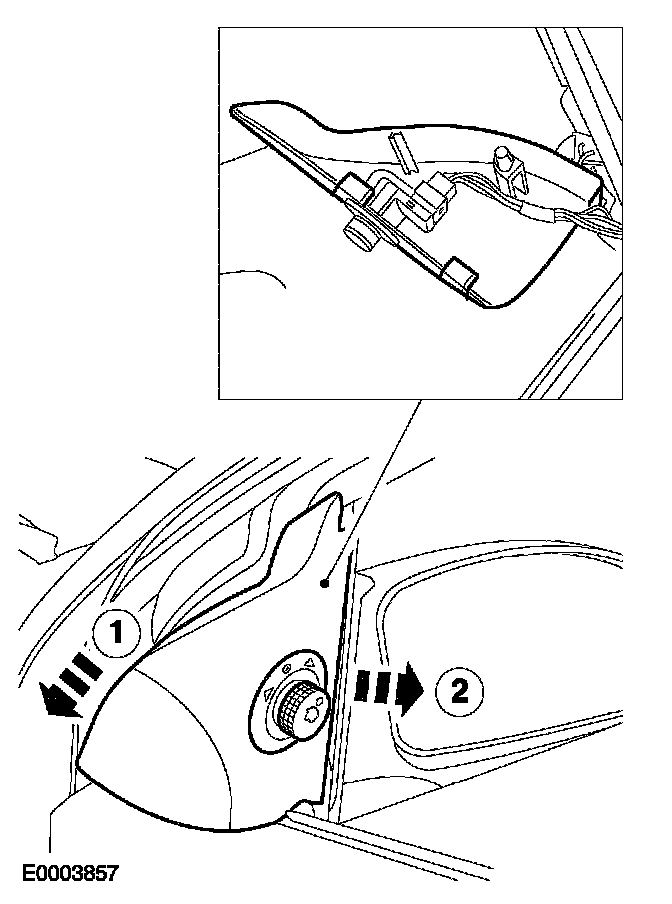

2. Remove the door mirror cover.
1 Release the clip.
2 Remove the cover.







3. Remove the cover.

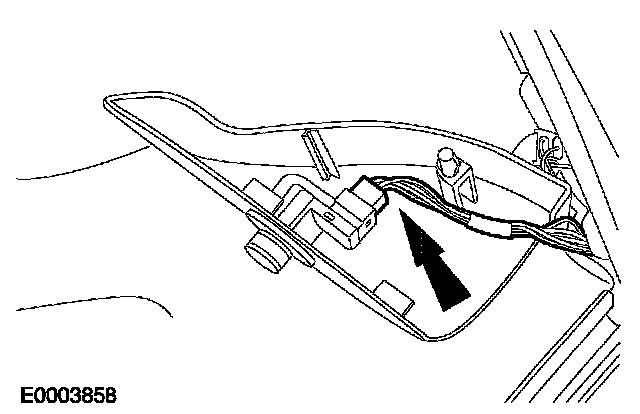

- Disconnect the electrical connector.

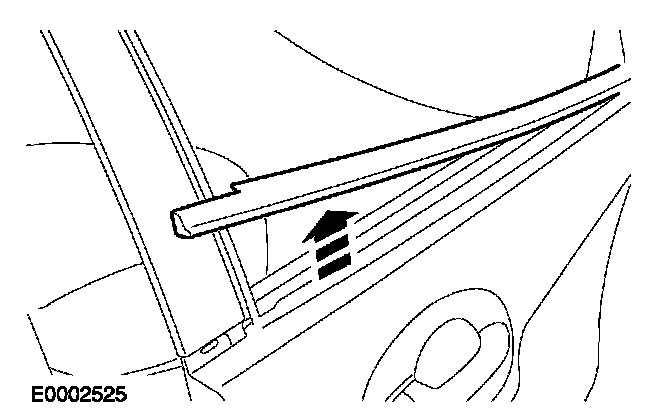

4. Remove the exterior weatherstrip.

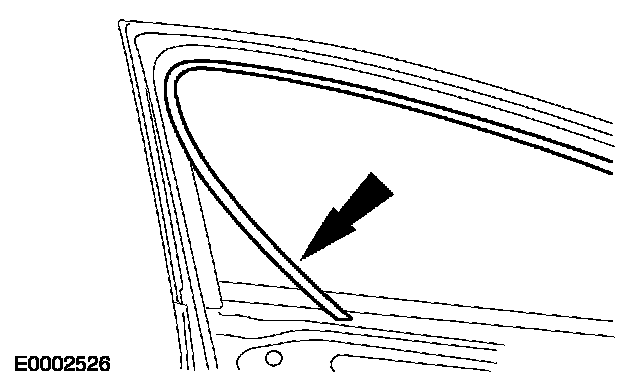

5. Remove the door glass top run.

INSTALLATION
1. To install, reverse the removal procedure.
