Battery Tray

BATTERY TRAY

REMOVAL
1. Remove the battery.

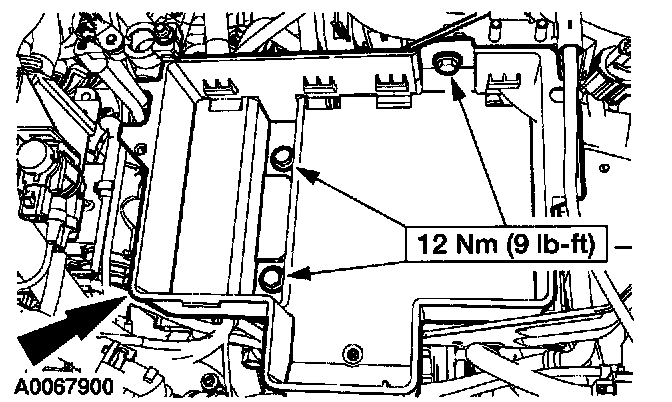

2. Remove the battery tray bolts and the battery tray.

INSTALLATION
1. To install, reverse the removal procedure.
