Air Injection Pump: Service and Repair

SECONDARY AIR INJECTION (AIR) PUMP

REMOVAL
1. Raise and support the vehicle.

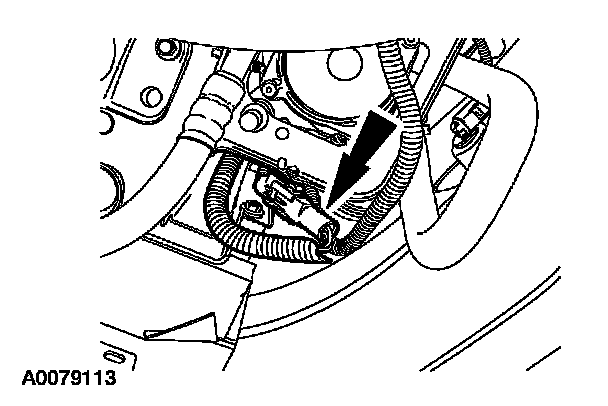

2. Disconnect the secondary air injection (AIR) electrical connector.

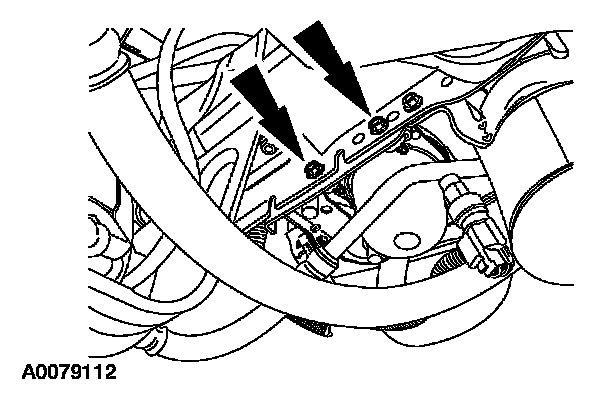

3. Remove the two mounting screws.

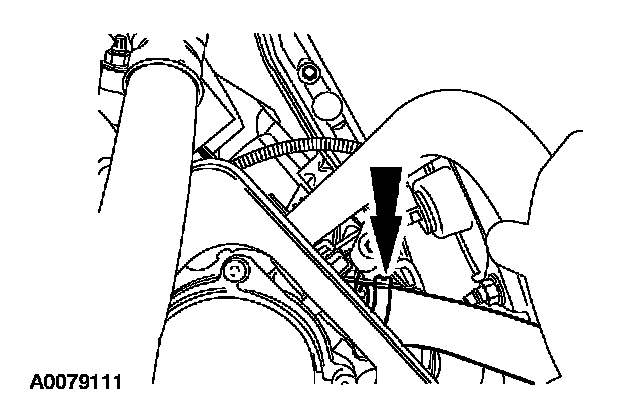

4. Disconnect the AIR outlet tube.
5. Remove AIR pump.

INSTALLATION
1. To install, reverse the removal procedure.
