2.3L

Accessory Drive Belt - 2.3L

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

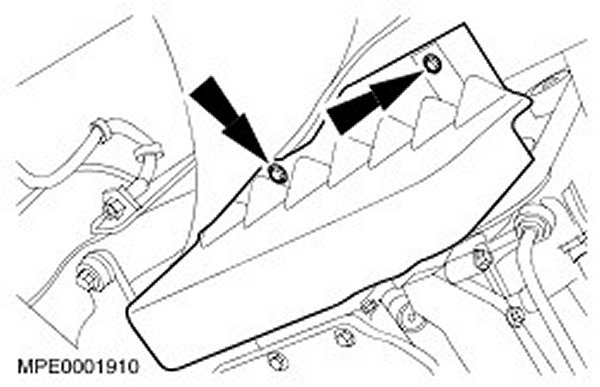

2. Remove the accessory drive belt splash shield.

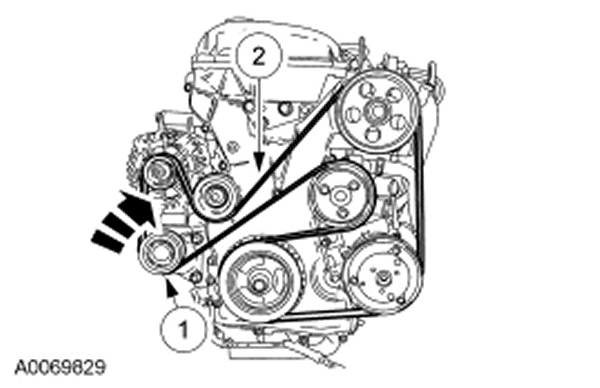

3. Remove the accessory drive belt.
- Rotate the tensioner clockwise.
- Remove the belt.






4. To install, reverse the removal procedure.
