Home >> Ford >> 2004 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A



PINPOINT TEST A: THE HEATER BLOWER MOTOR IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

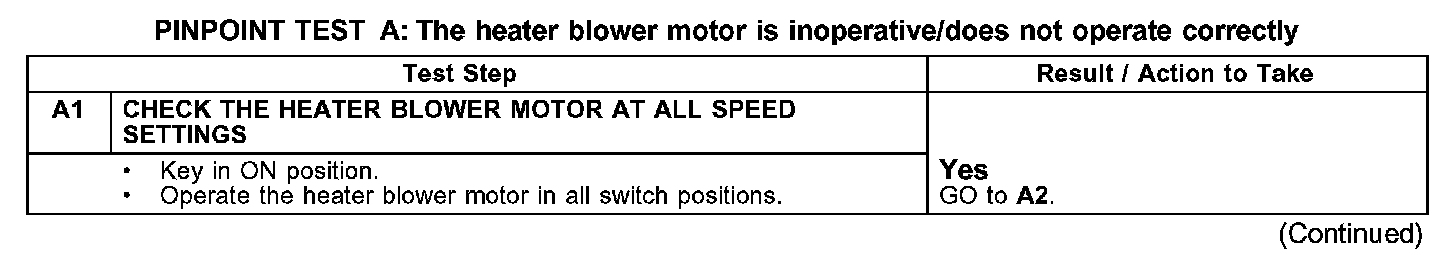

Test A1:

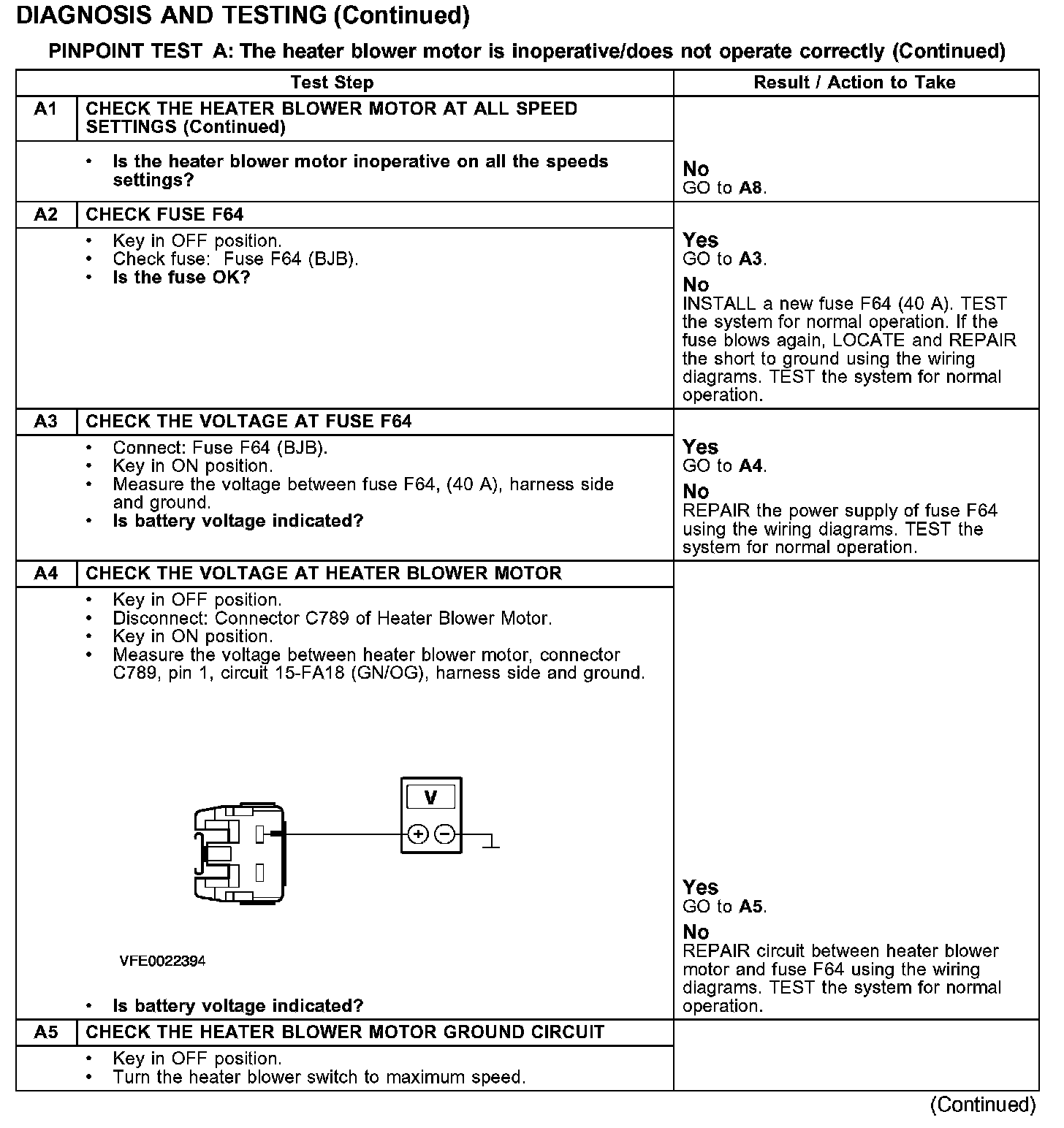

Test A1-A5:

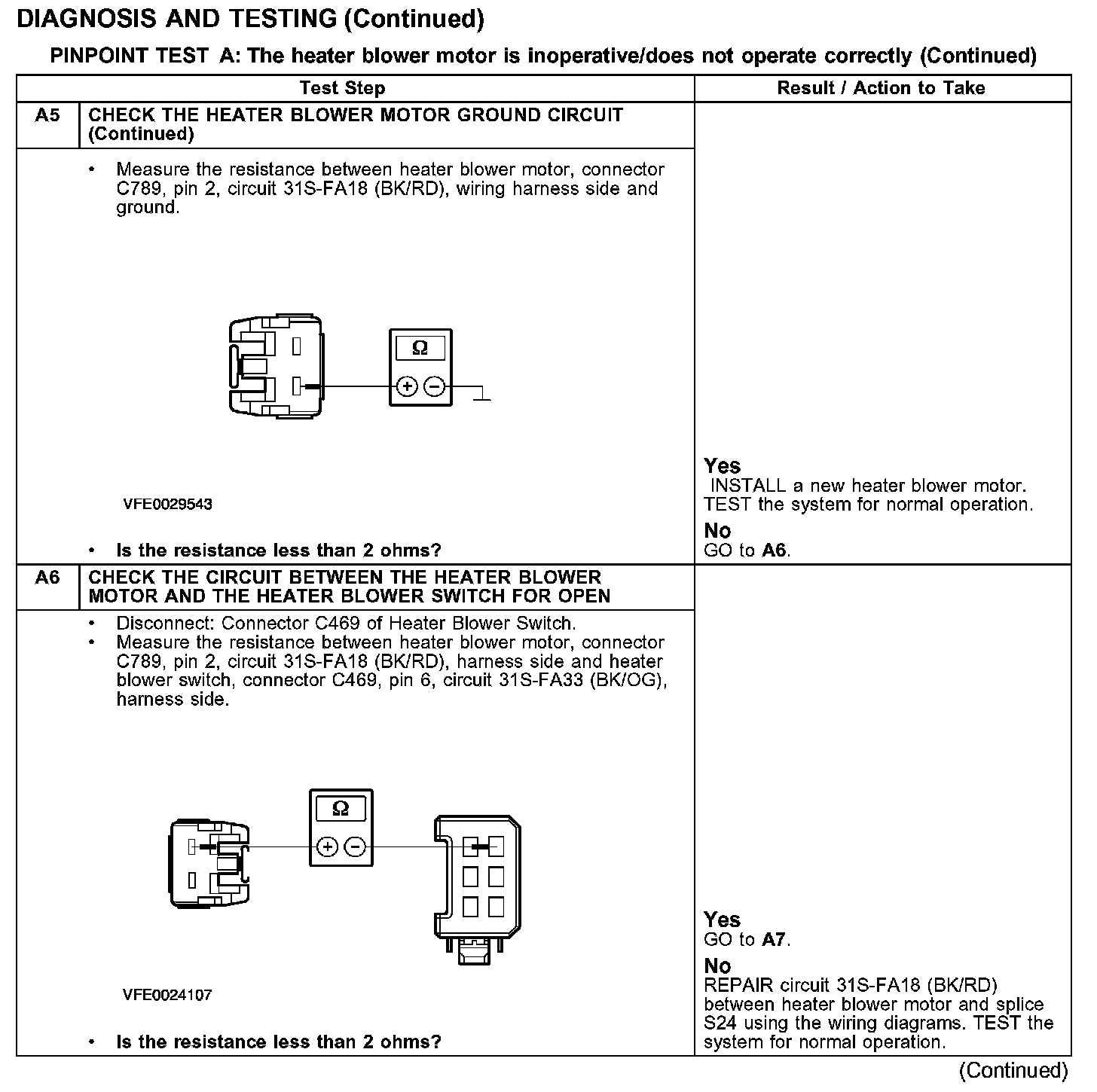

Test A5-A6:

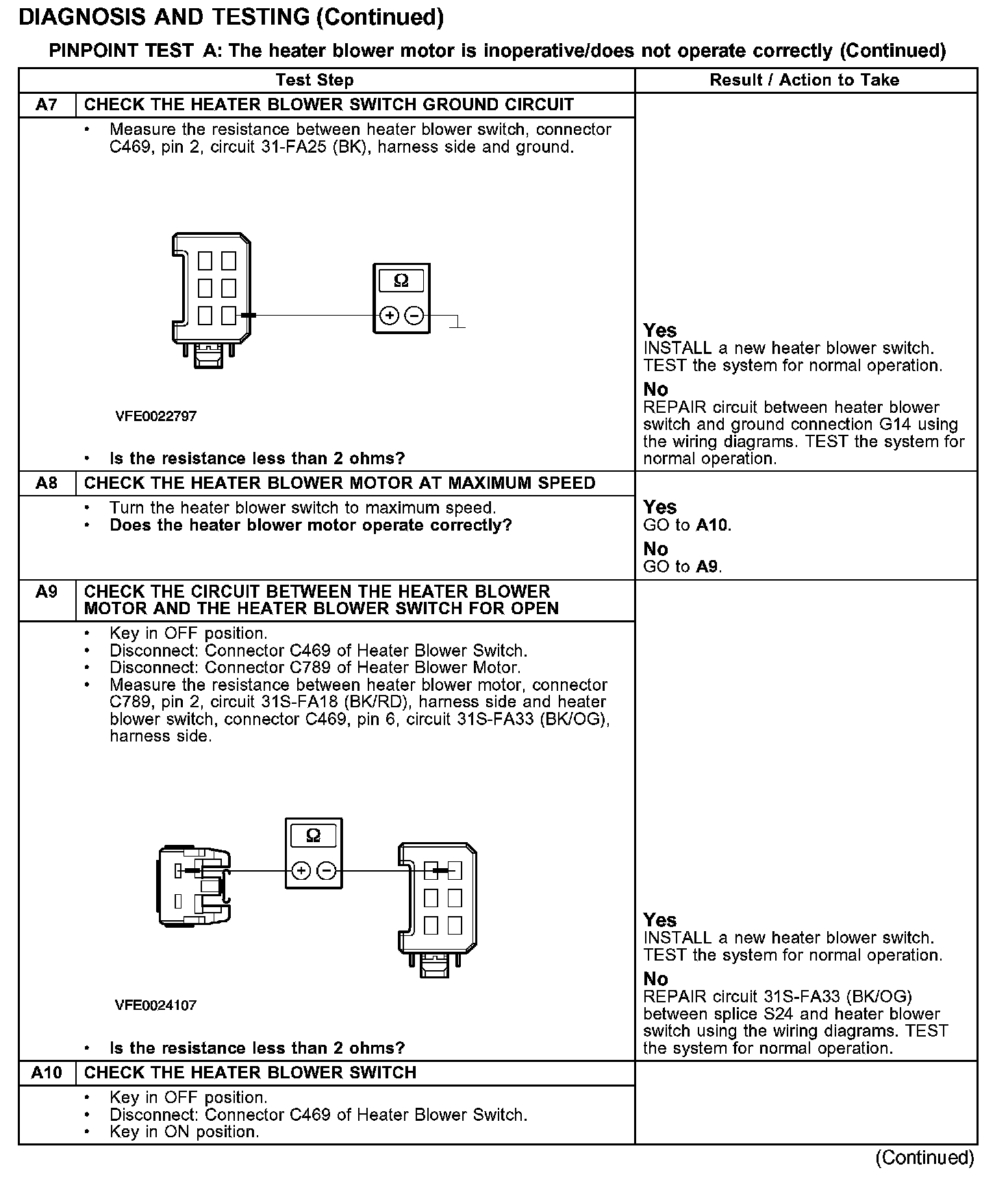

Test A7-A10:

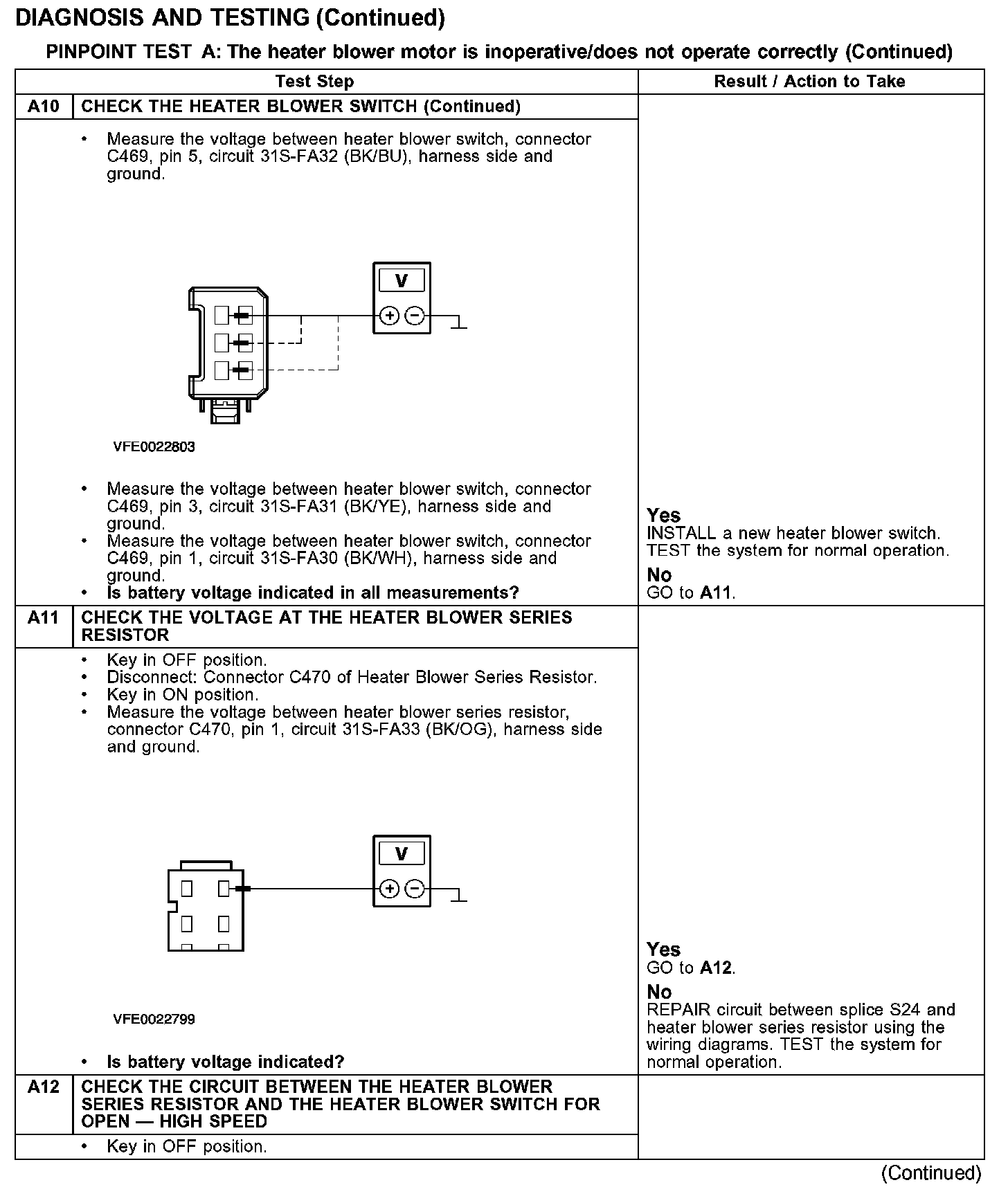

Test A10-A12:

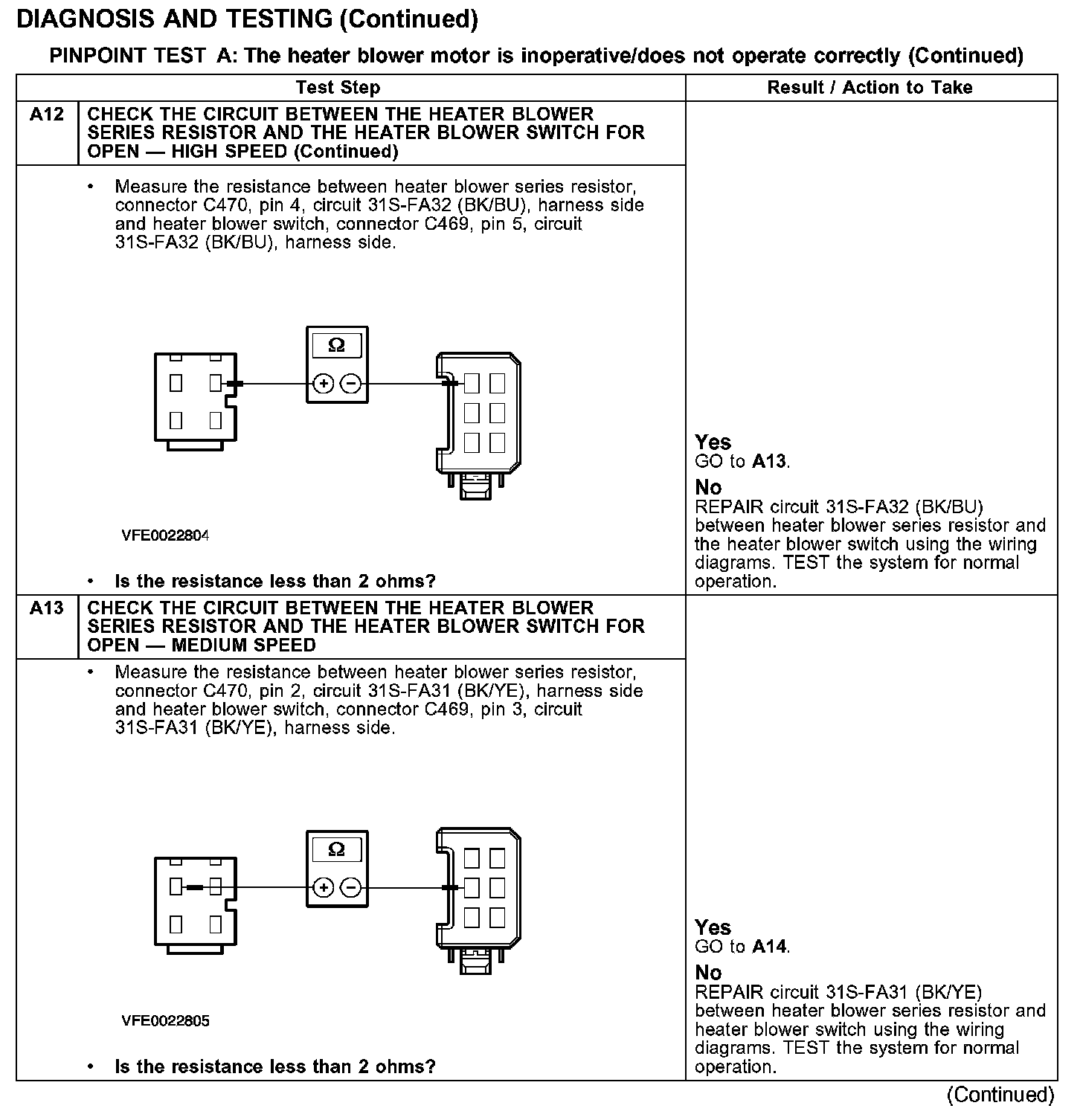

Test A12-A13:

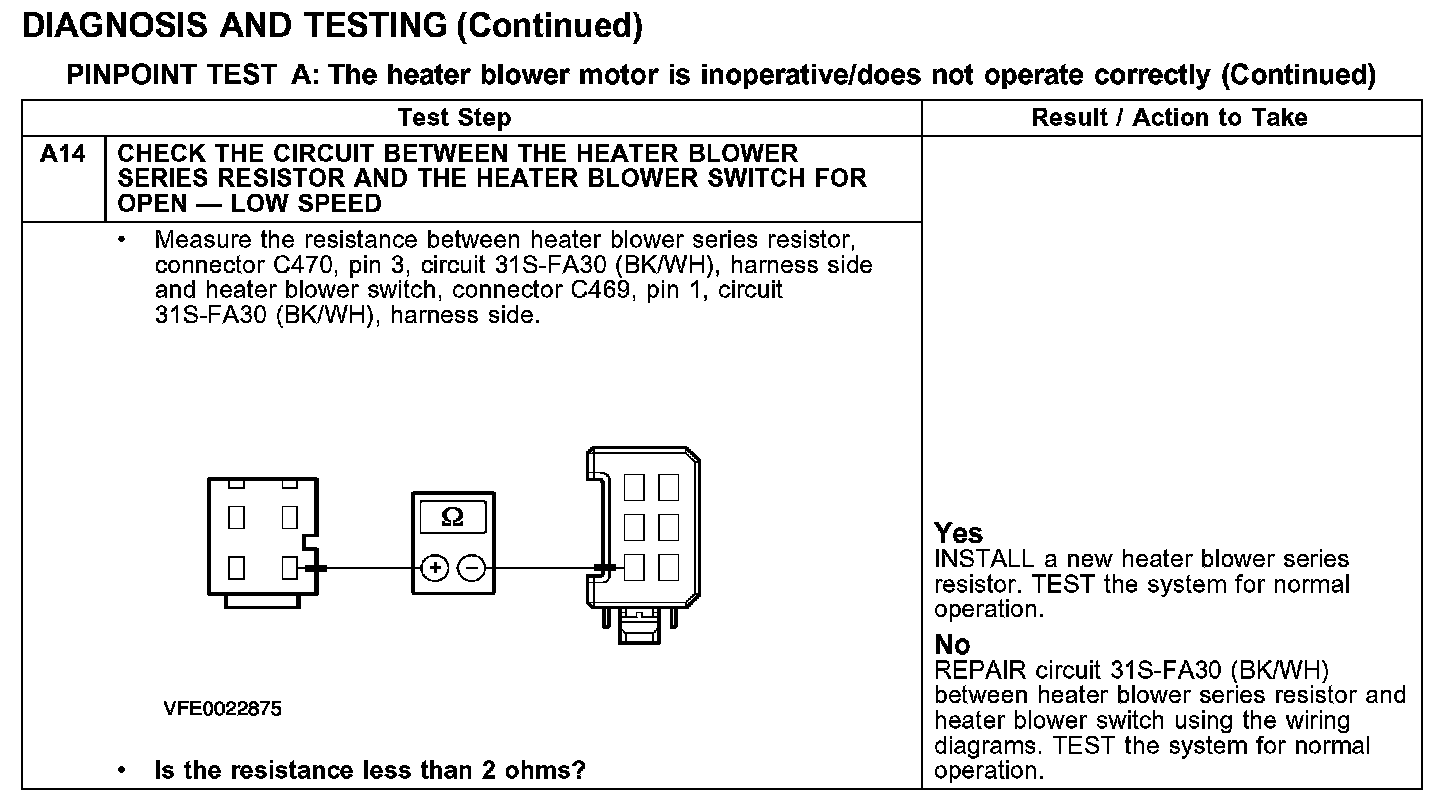

Test A14:
