PINPOINT TEST C: A SINGLE MIRROR DOES NOT FUNCTION WITH SWITCH LOGIC

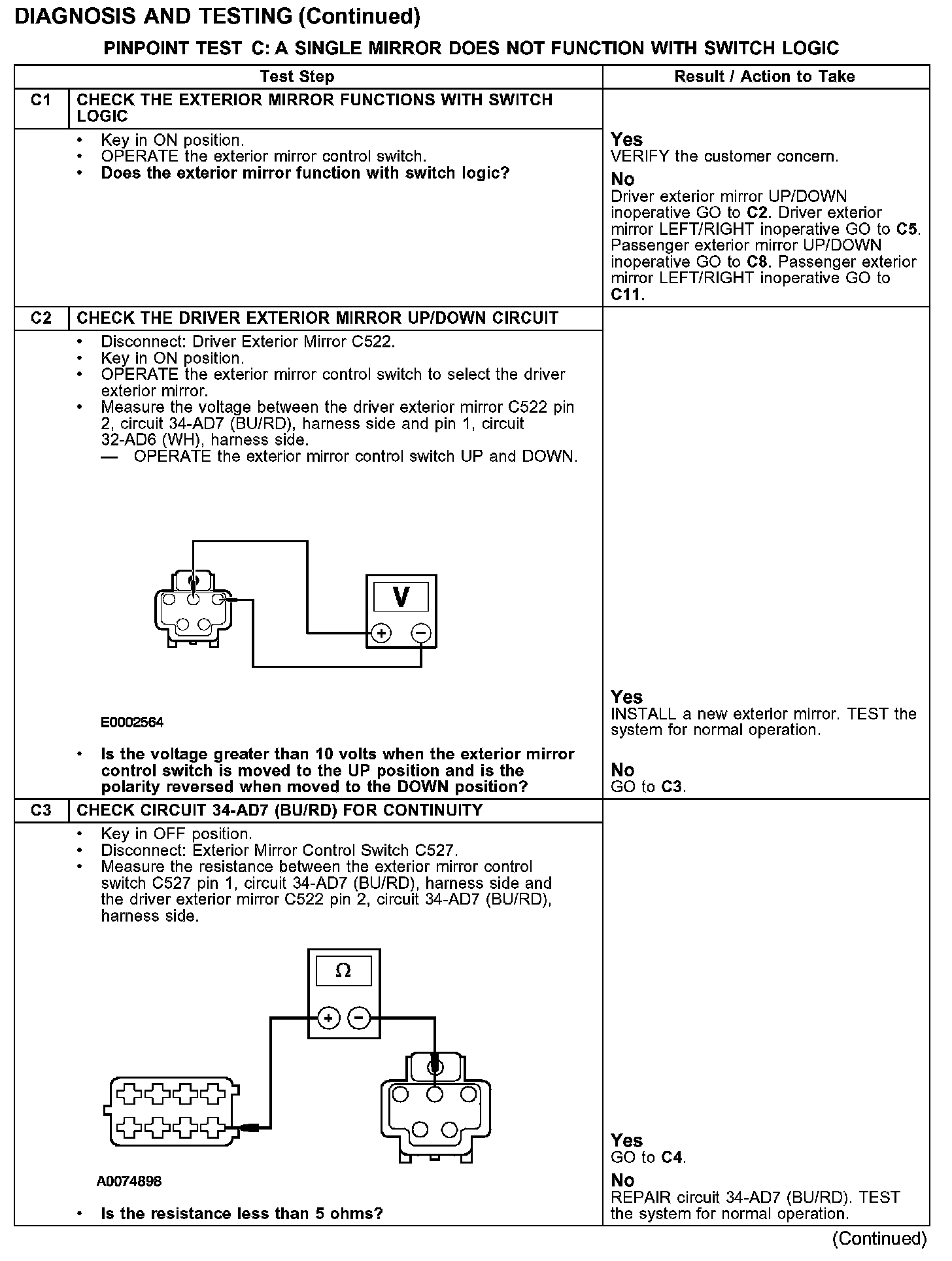

Test C1-C3:

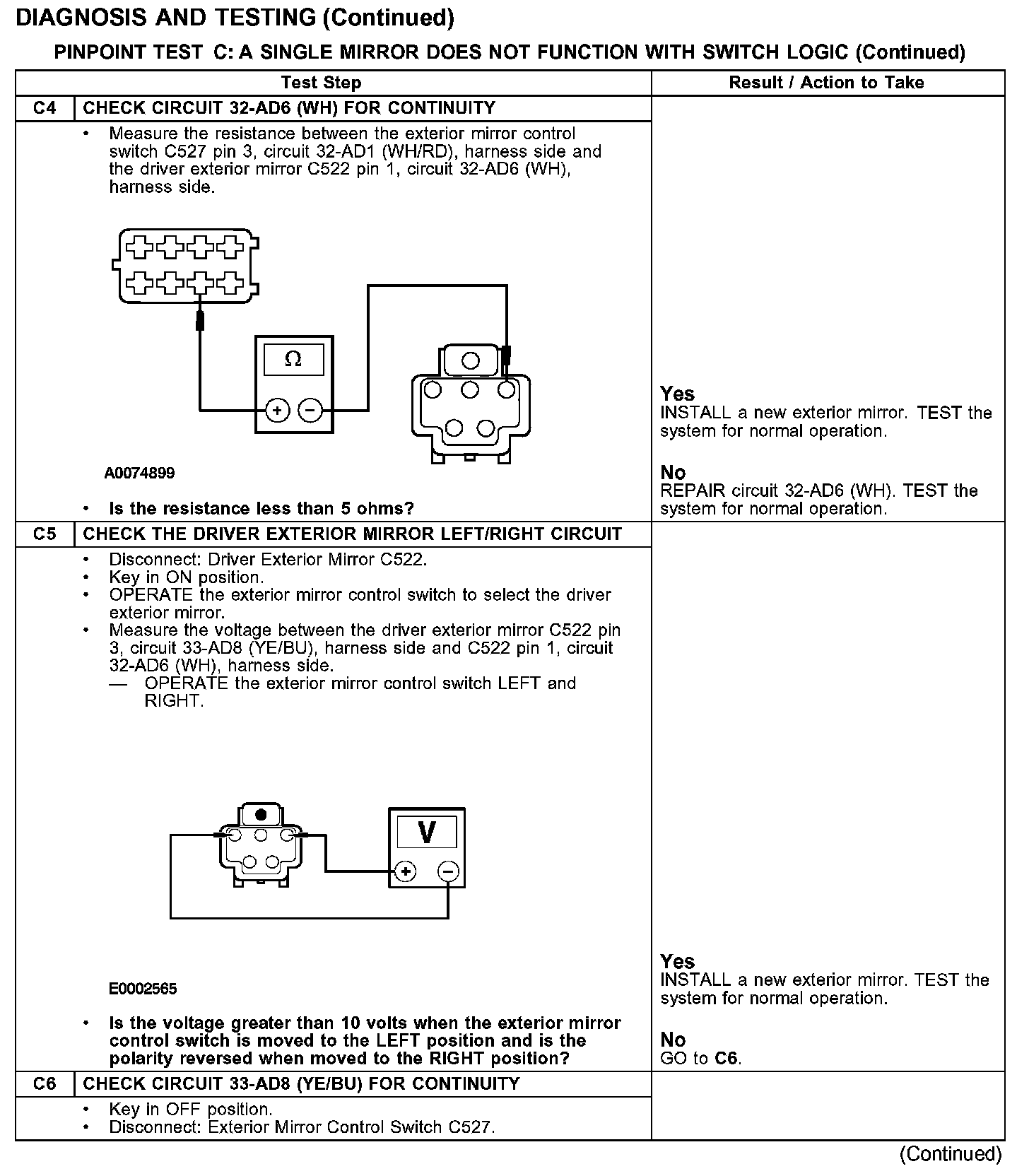

Test C4-C6:

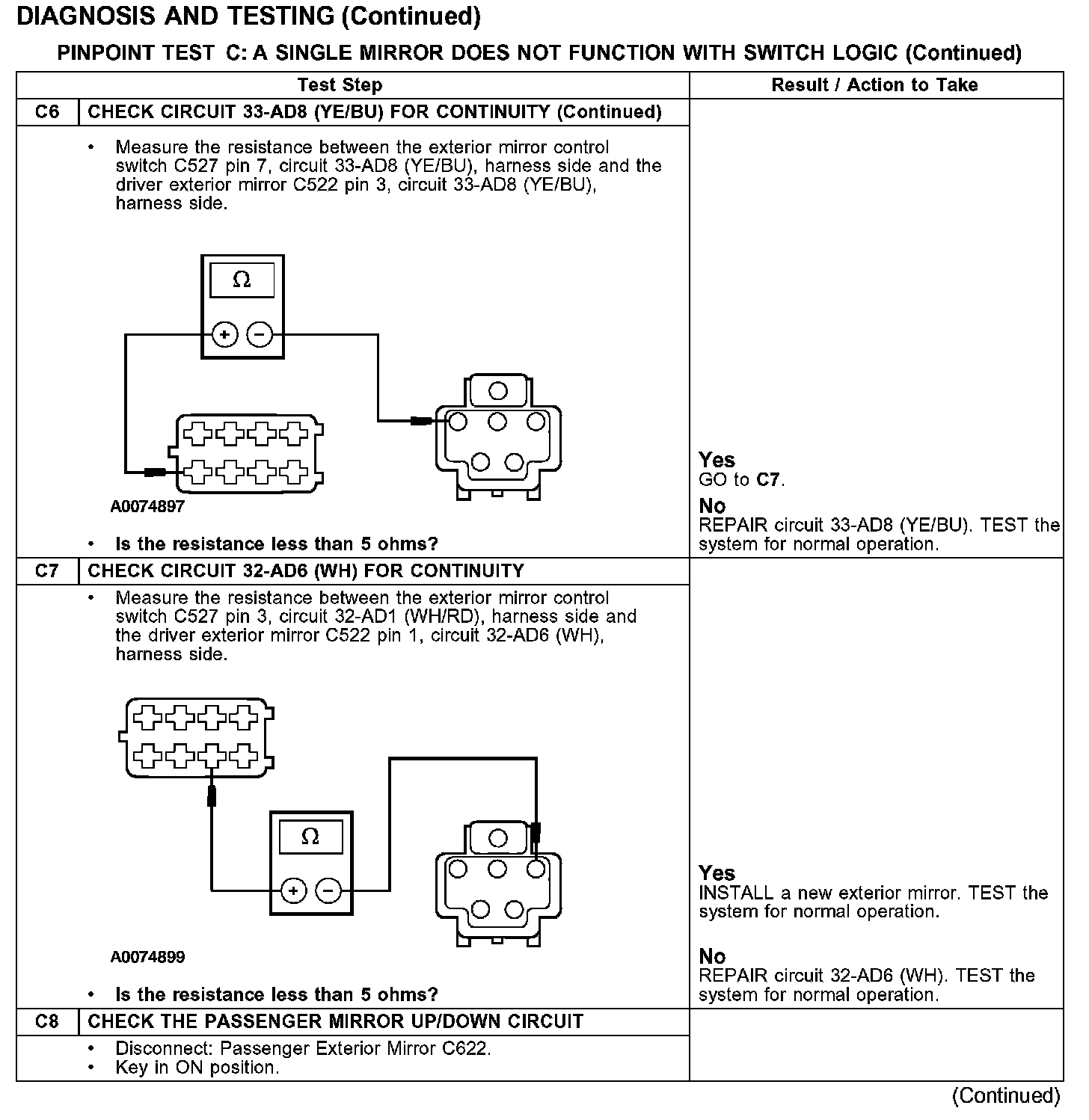

Test C6-C8:

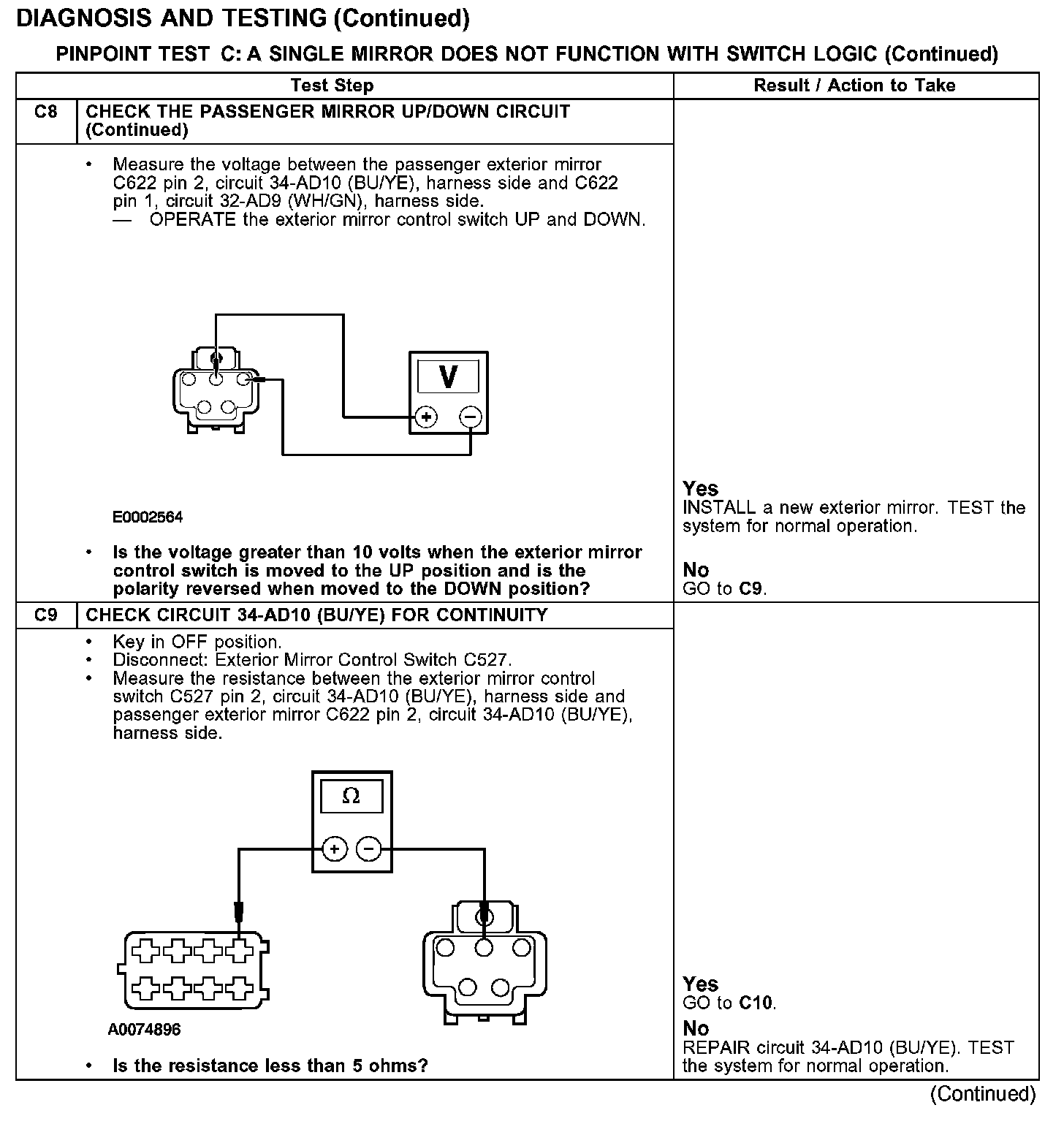

Test C8-C9:

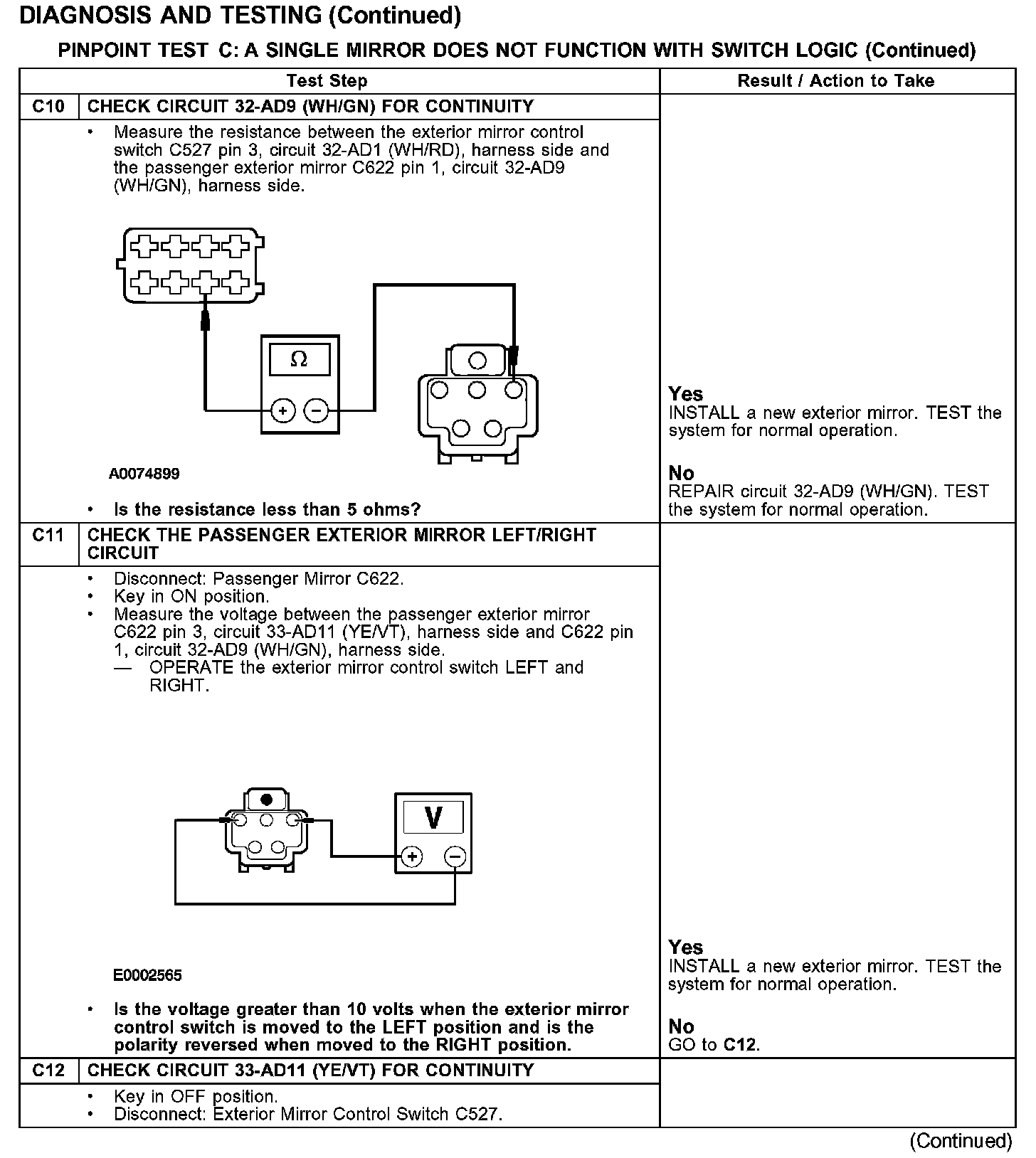

Test C10-C12:

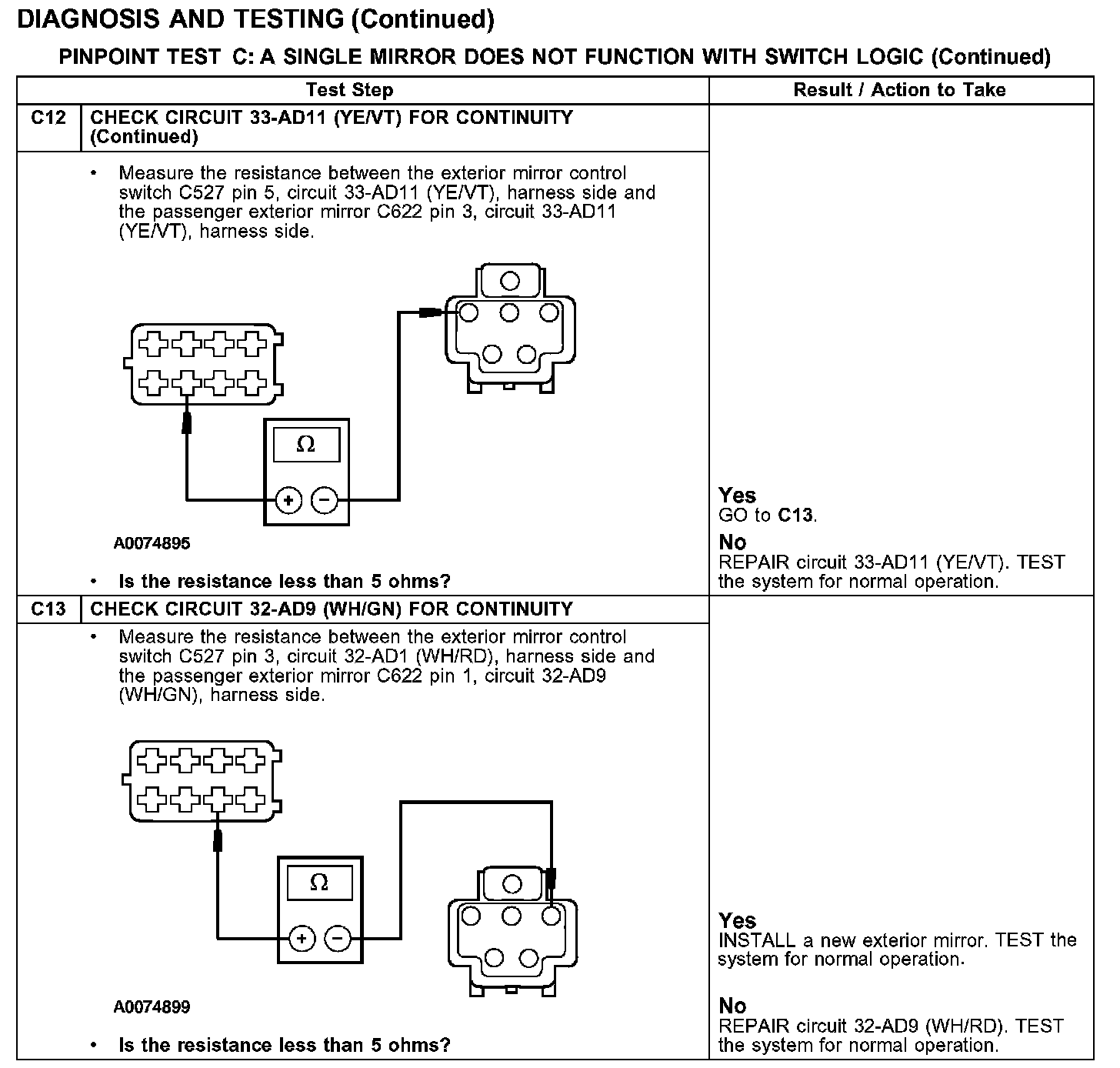

Test C12-C13:
