Front Fender Liner: Service and Repair

FENDER SPLASH SHIELD

Removal and Installation
1. Remove the wheel and tire assembly.

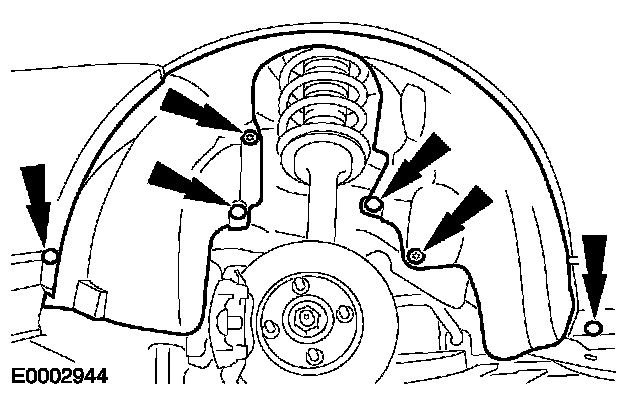

2. Remove the fender splash shield.
- Remove the screws.
- If equipped with the 2.3L engine, remove the two air cleaner cover shield bolts from the LH fender splash shield.

3. To install, reverse the removal procedure.
