Starter Motor: Service and Repair

STARTER MOTOR

REMOVAL

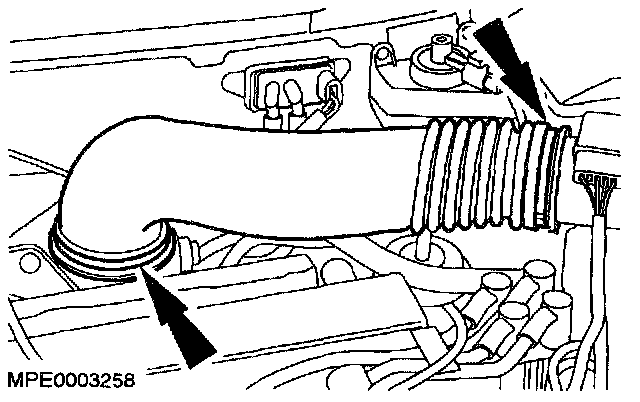

1. Remove the air cleaner outlet tube.

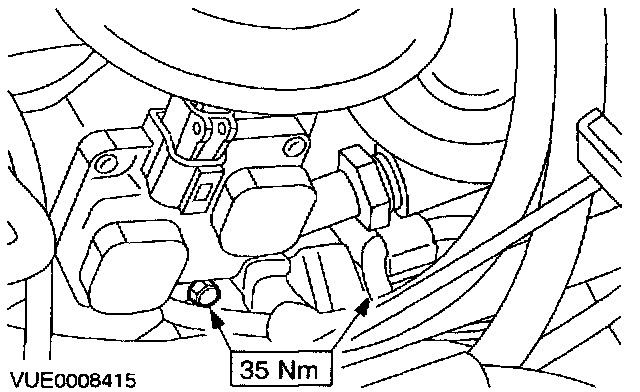

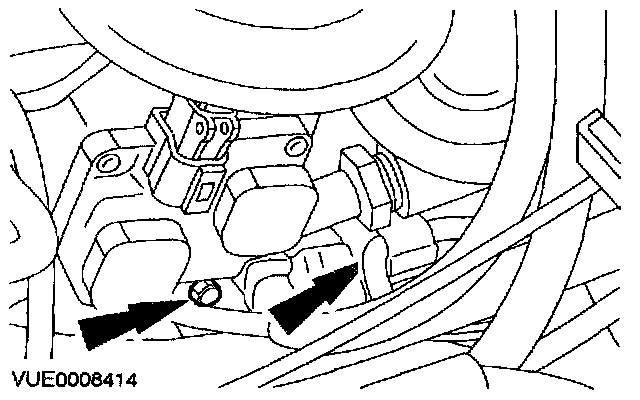

2. Remove the starter motor bolts.
3. Raise and support the vehicle.

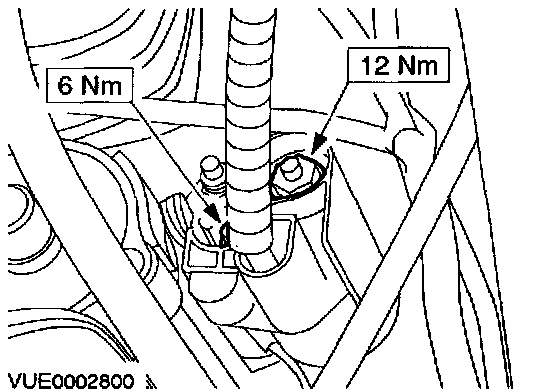

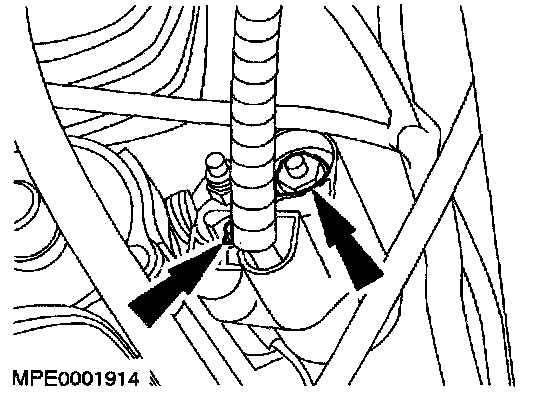

4. Disconnect the starter motor electrical connector.

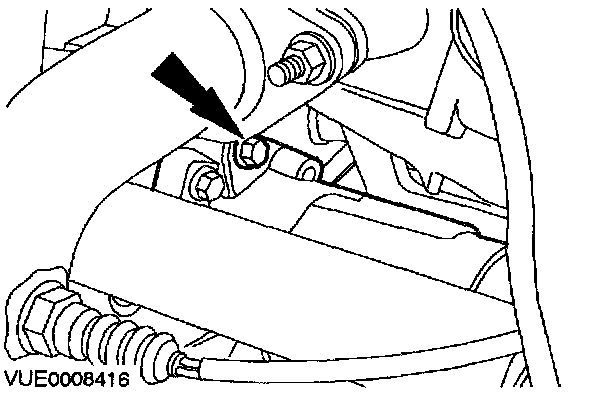

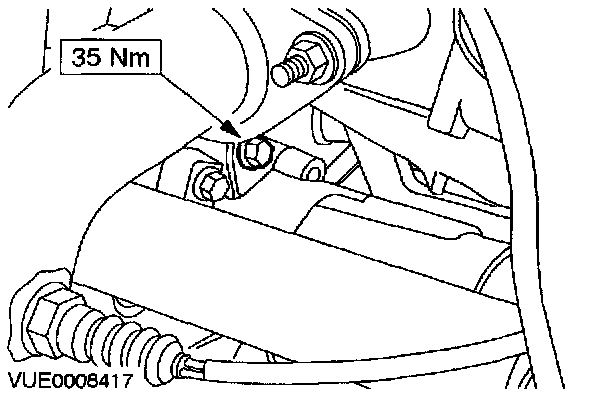

5. Detach the starter motor.

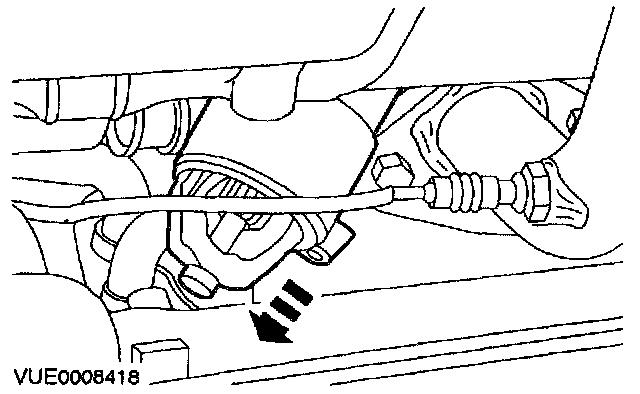

6. Remove the starter motor.

INSTALLATION

















1. To install, reverse the removal procedure.
