Home >> Ford >> 2004 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

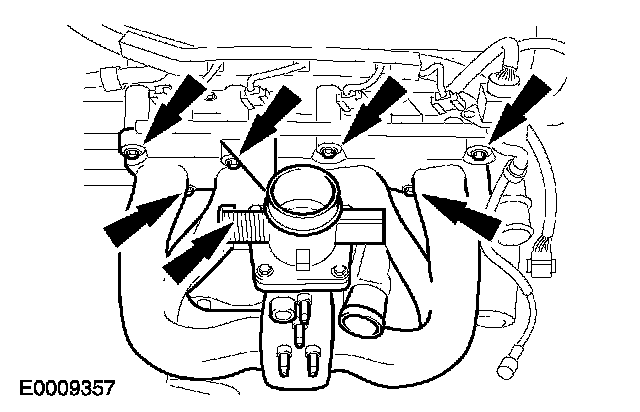

Intake Manifold





Intake Manifold Bolts:
Stage 1 10 Nm
Stage 2 90 degrees
