Home >> Ford >> 2004 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Intermediate/Overdrive Band Bolt Chart

Intermediate/Overdrive Band Bolt Chart

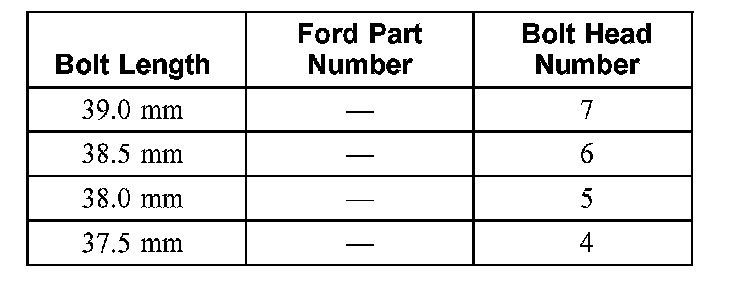

Part 1:

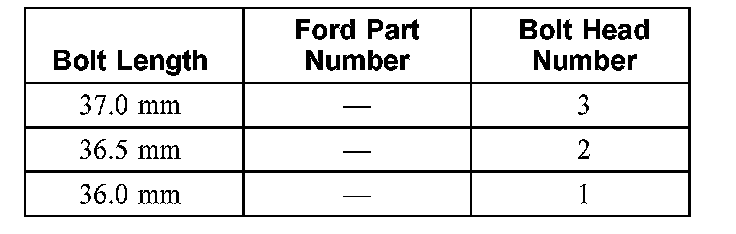

Part 2:
