Ignition Coil: Service and Repair

IGNITION COIL PACK

REMOVAL

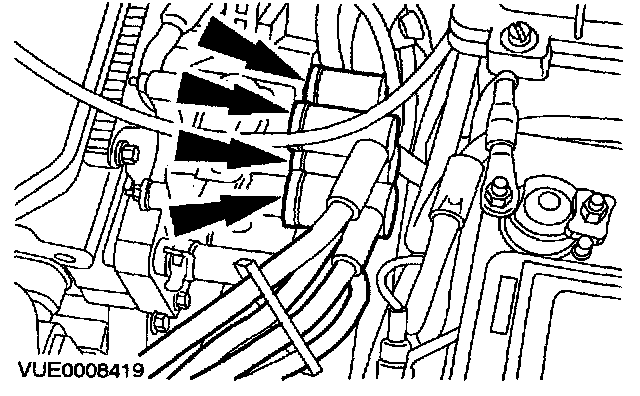

1. Disconnect the spark plug wires from the ignition coil.

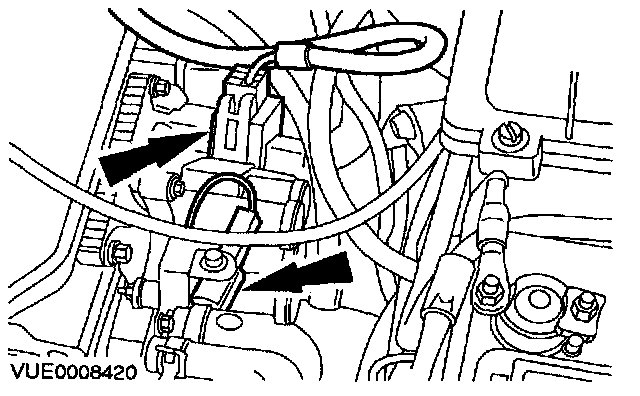

2. Disconnect the ignition coil and capacitor electrical connectors.

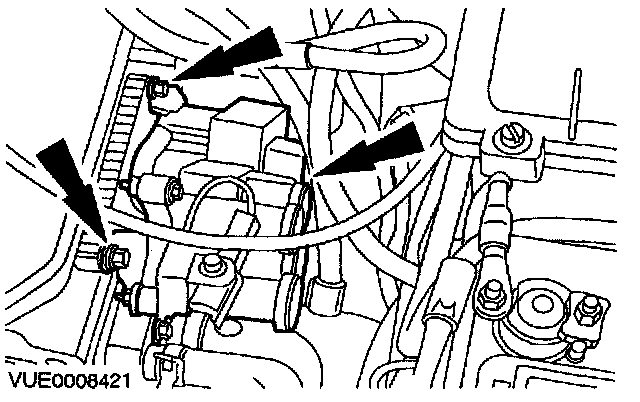

3. Remove the ignition coil, capacitor and bracket.

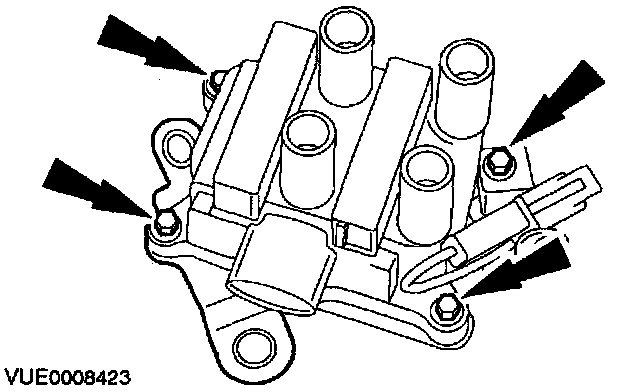

4. Remove the ignition coil and capacitor from the ignition coil bracket.

INSTALLATION

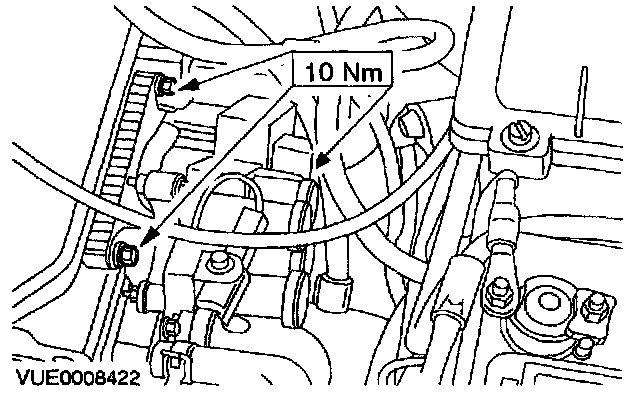

1. To install, reverse the removal procedure.
