Home
>>
Ford
>>
2004
>>
Focus L4-2.0L SOHC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drum Brake System
Drum Brake System

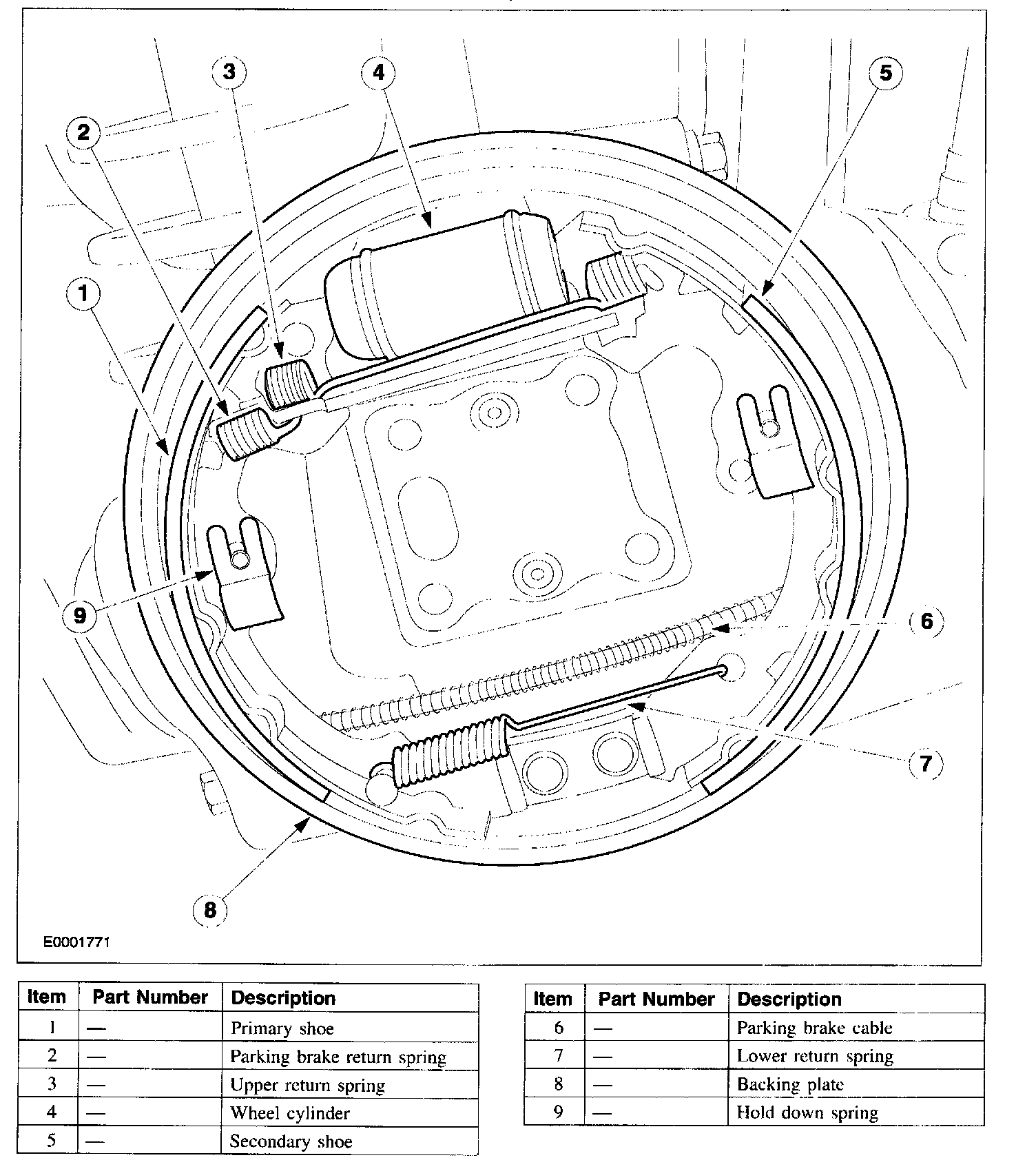

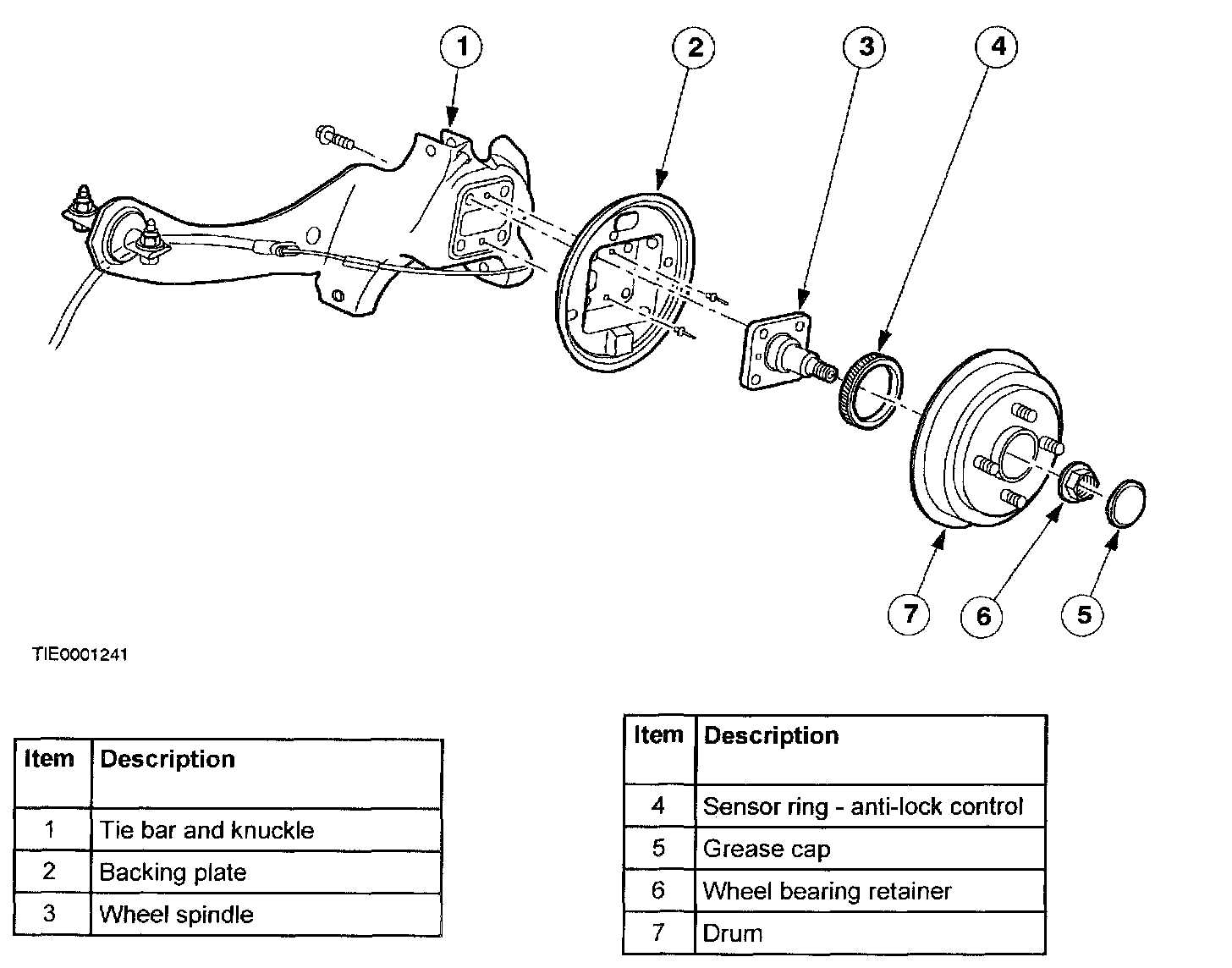

Drum Brake
Part 2 Of 2:
