Home >> Ford >> 2004 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test D

Test D

PINPOINT TEST D: THE RESUME SWITCH IS INOPERATIVE

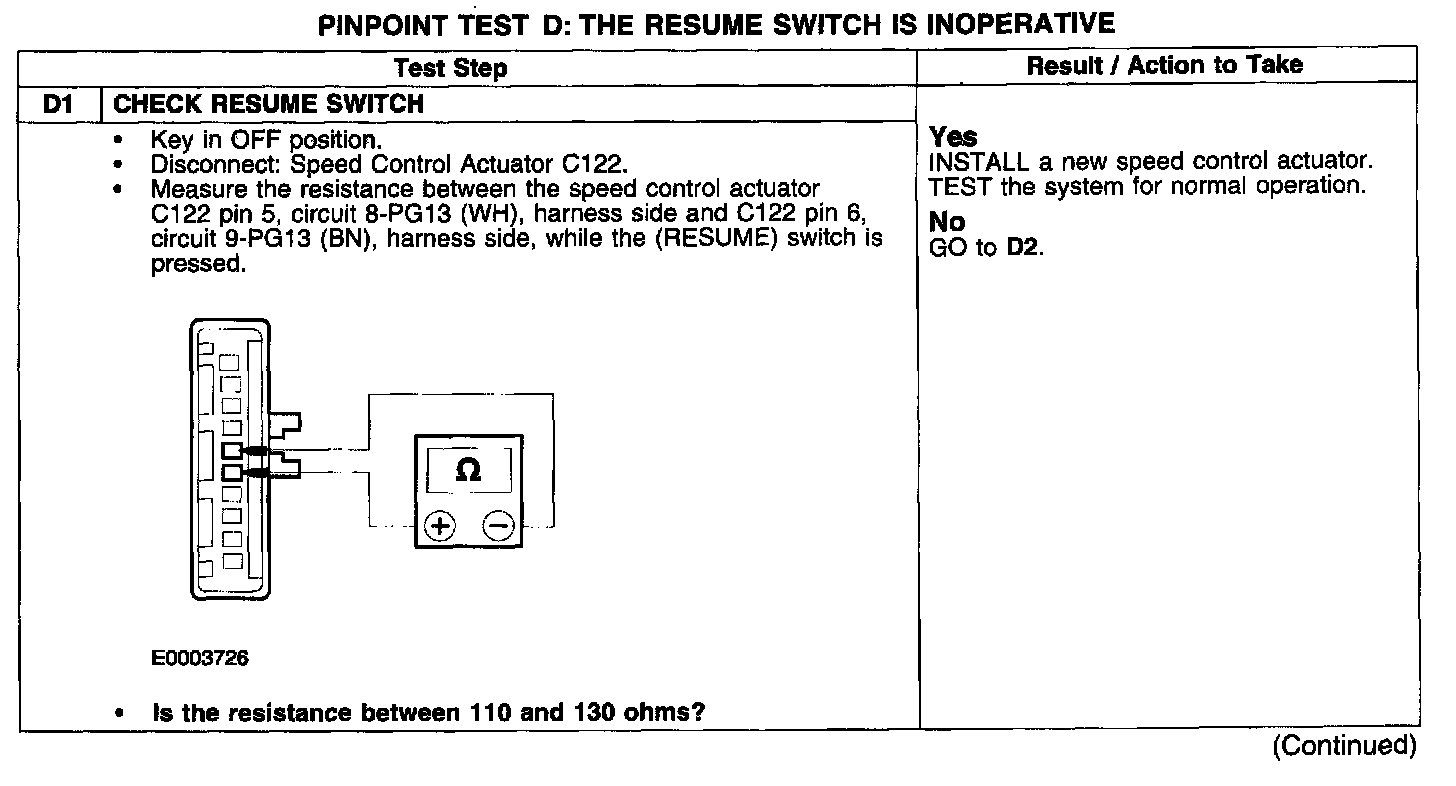

Test D1:

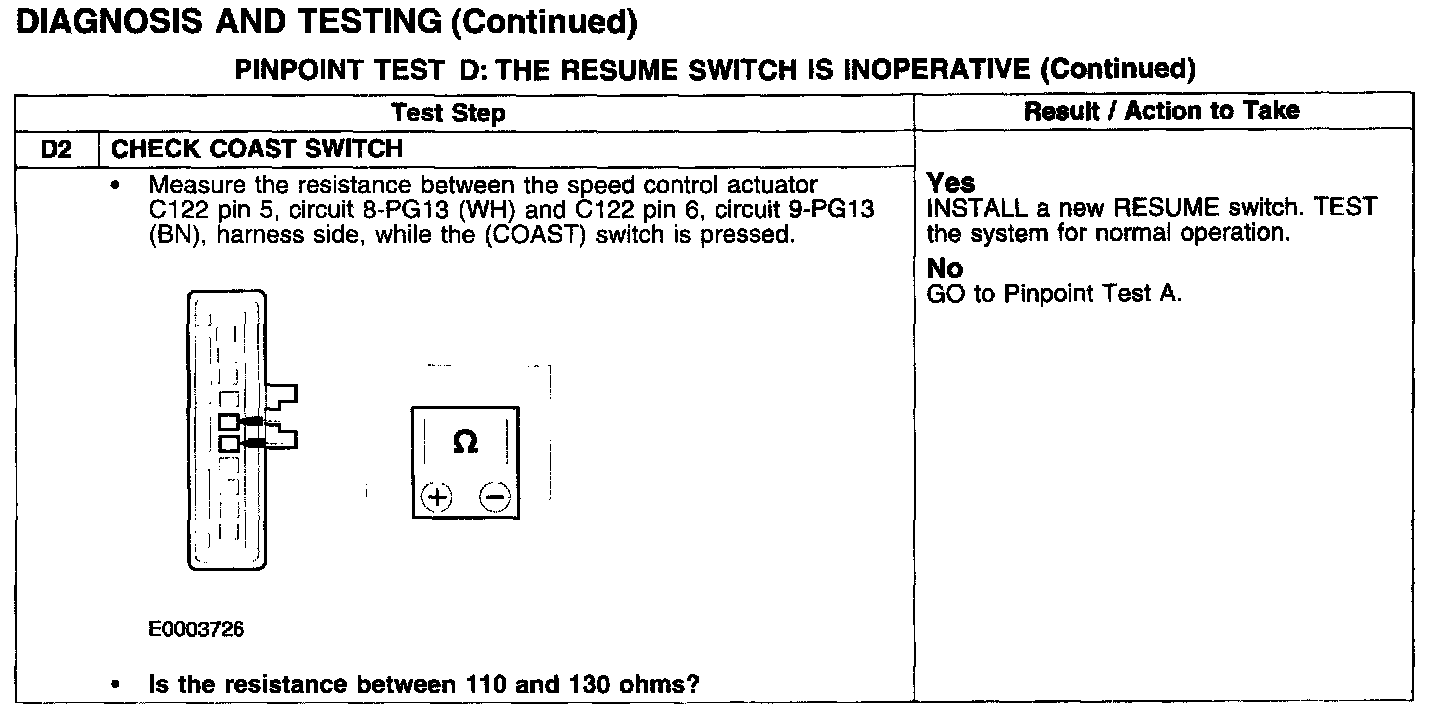

Test D2:
