Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

REMOVAL

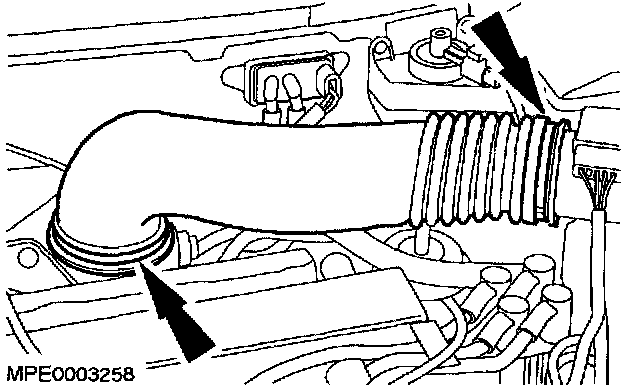

1. Remove the air cleaner outlet pipe.

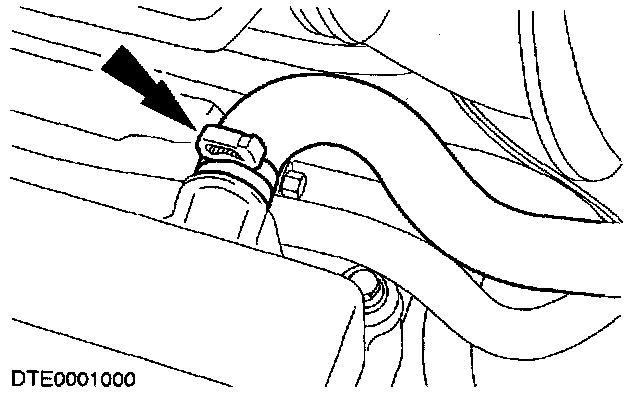

2. Detach the breather pipe.

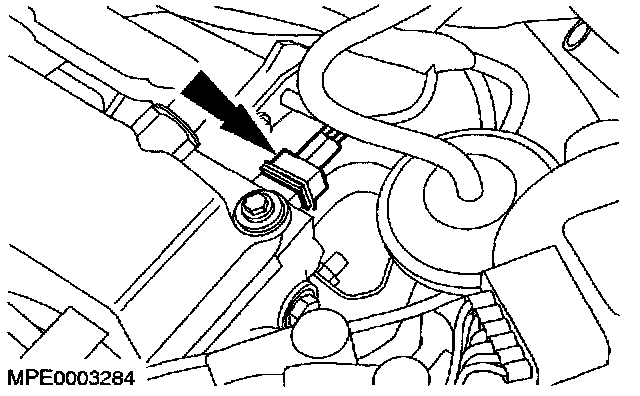

3. Disconnect the camshaft position (CMP) sensor electrical connector.

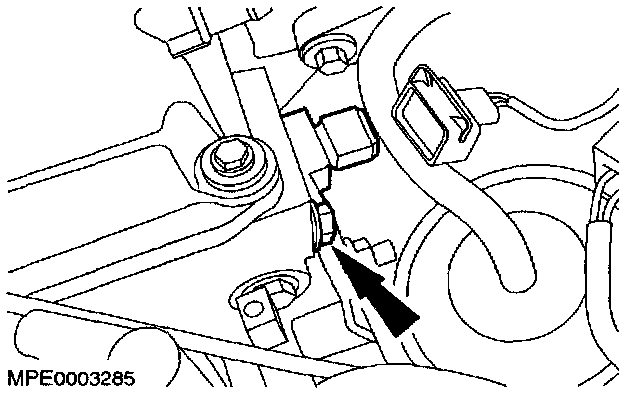

4. Remove the CMP sensor.

INSTALLATION

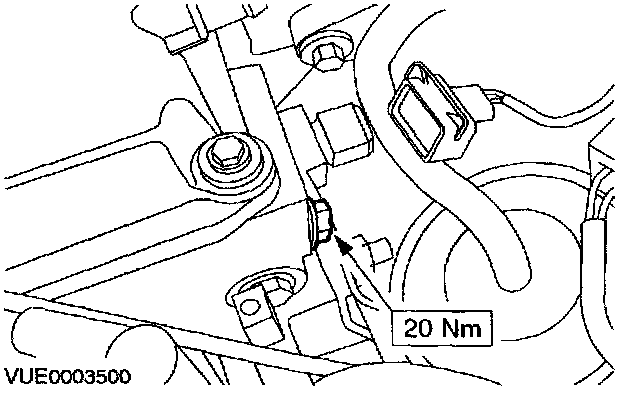

1. To install, reverse the removal procedure.
