Home >> Ford >> 2004 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> Test G

Test G

PINPOINT TEST G: NO INTERNATIONAL STANDARDS ORGANIZATION (ISO) 9141 NETWORK COMMUNICATION

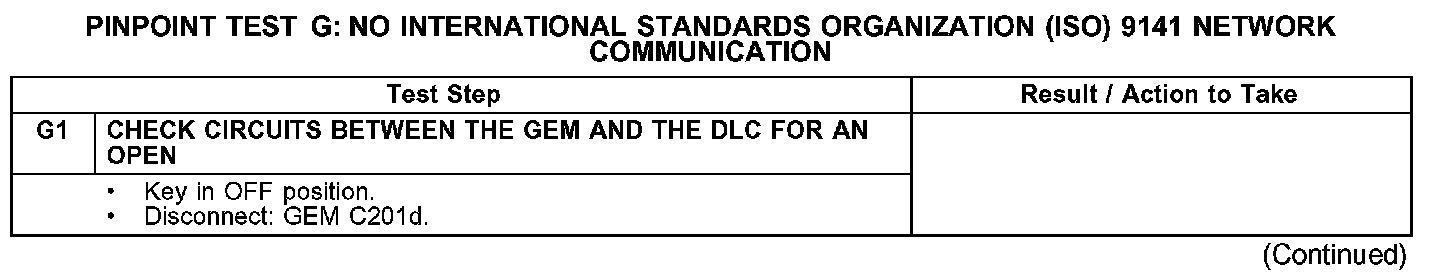

Test G1:

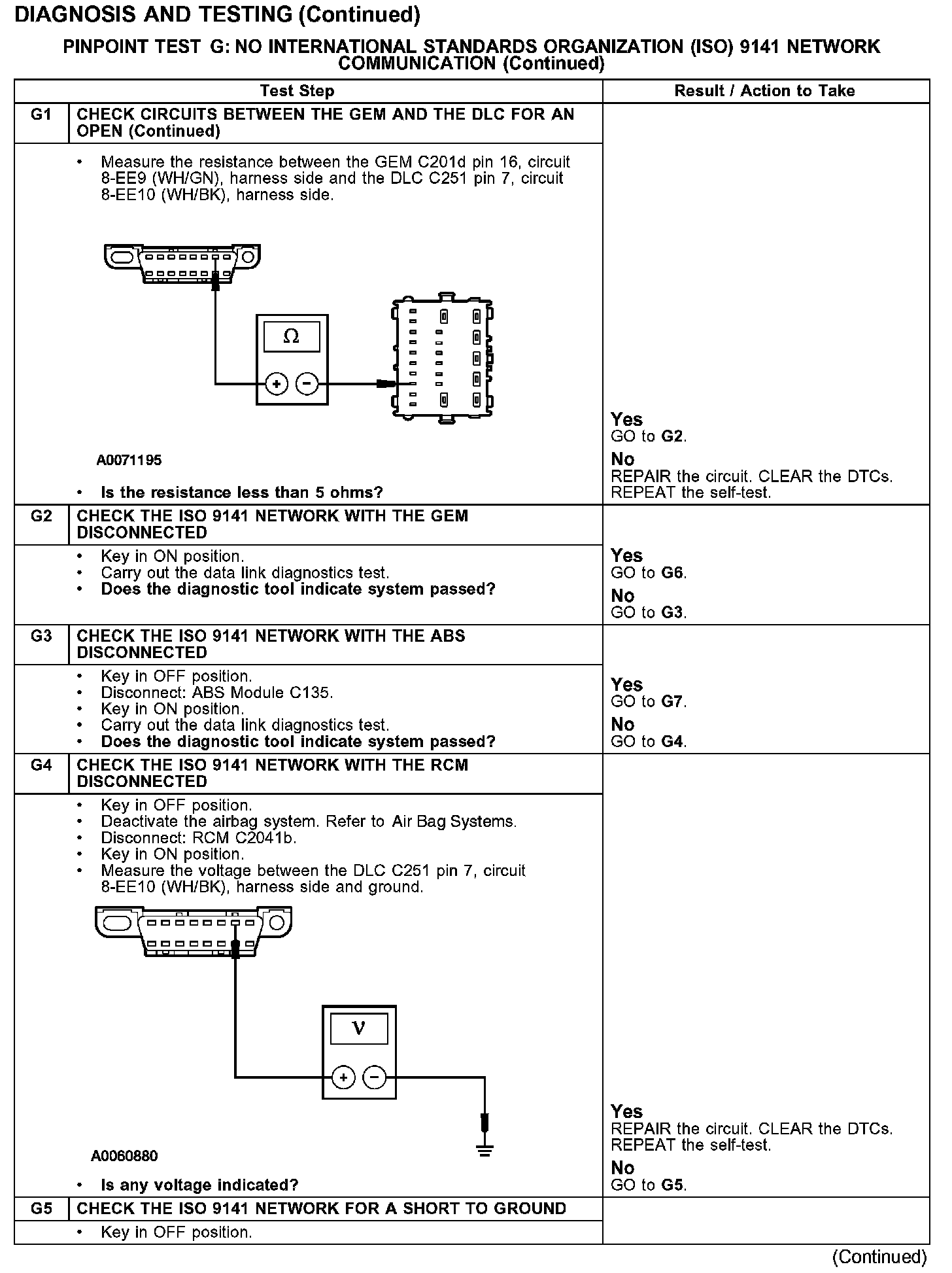

Test G1-G5:

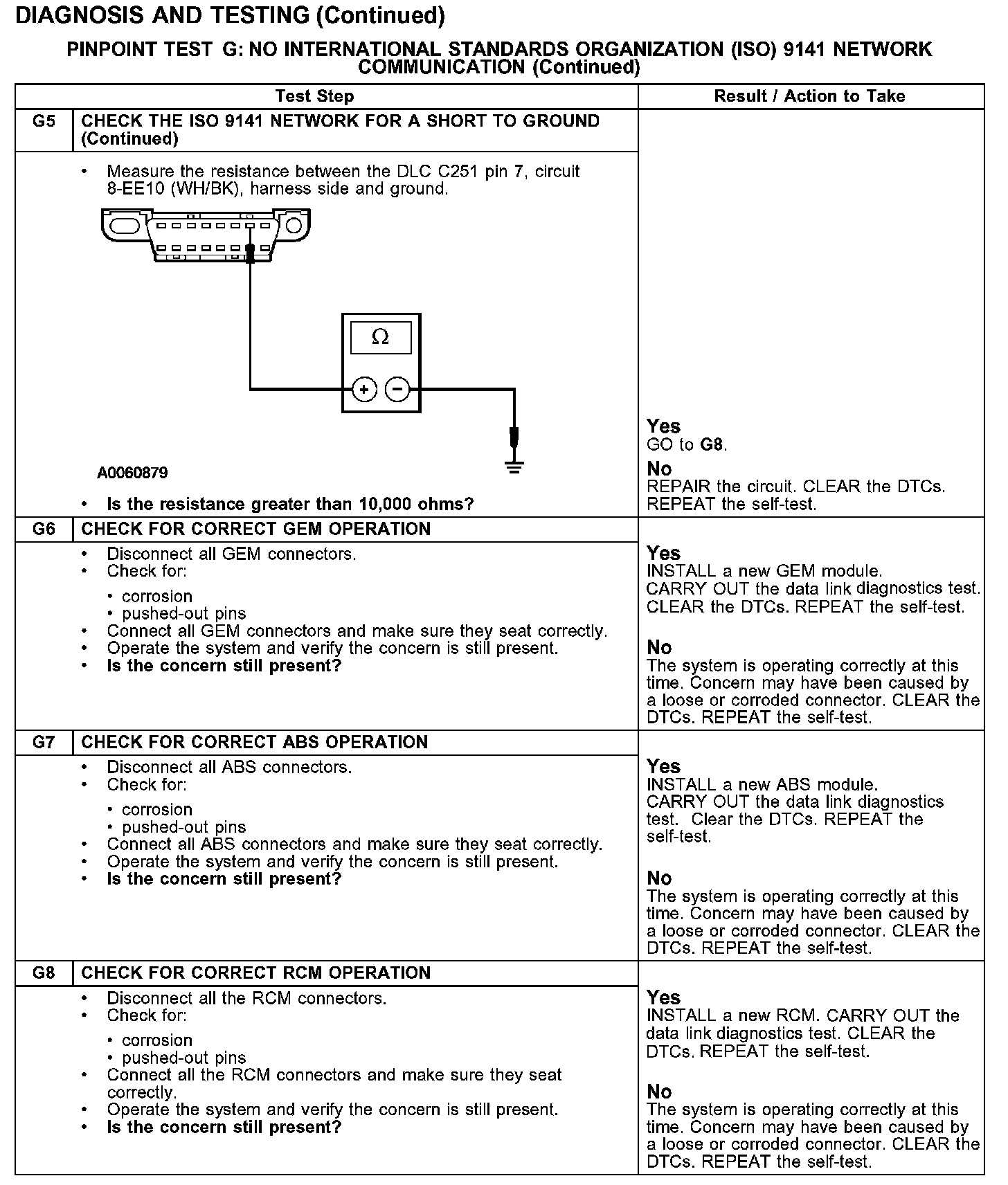

Test G5-G8:
