Anti-Lock Brakes with Traction Control

Anti-Lock Brake Control Module Parameter Identification (PID) Index

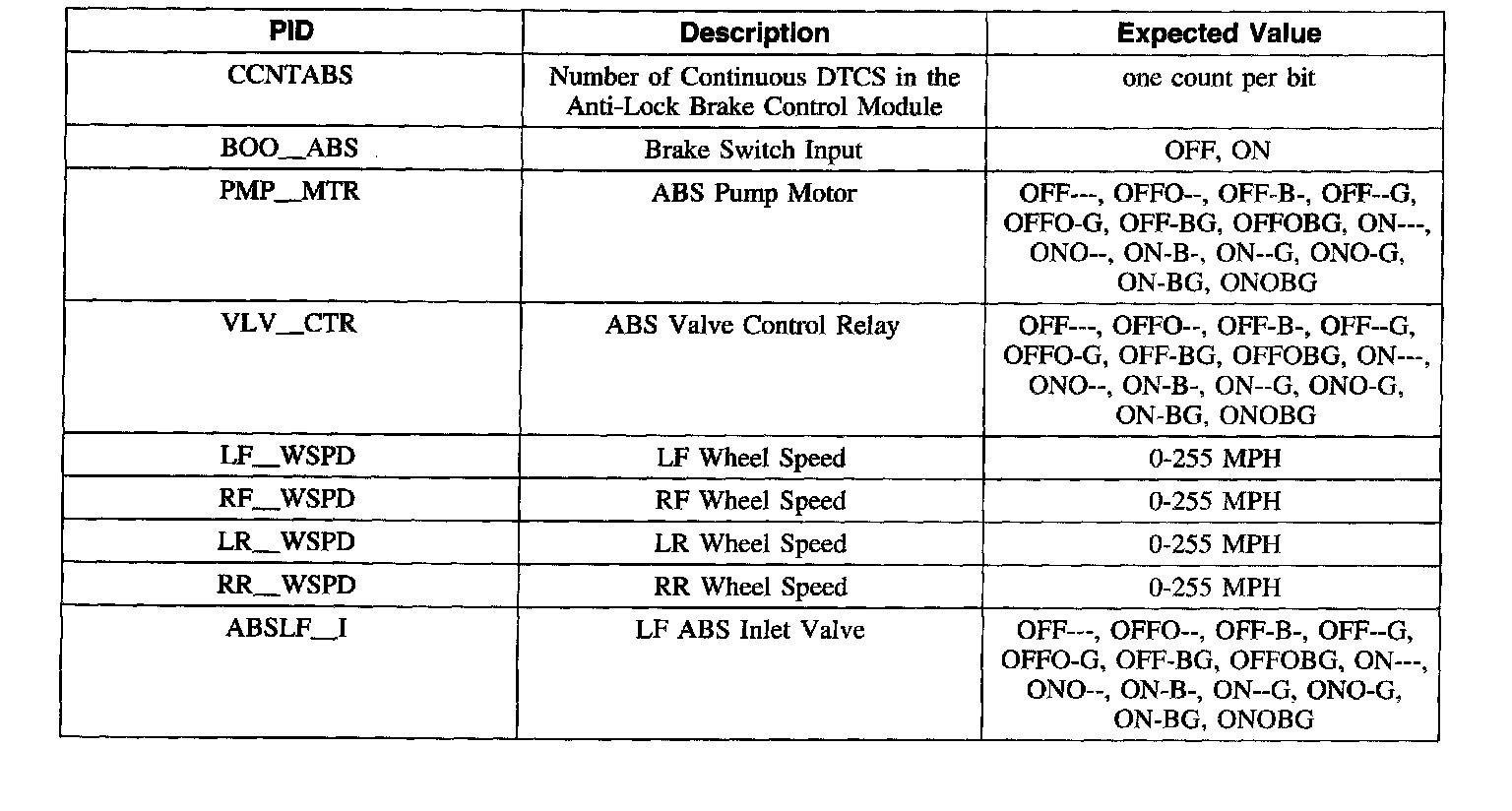

Part 1 Of 2:

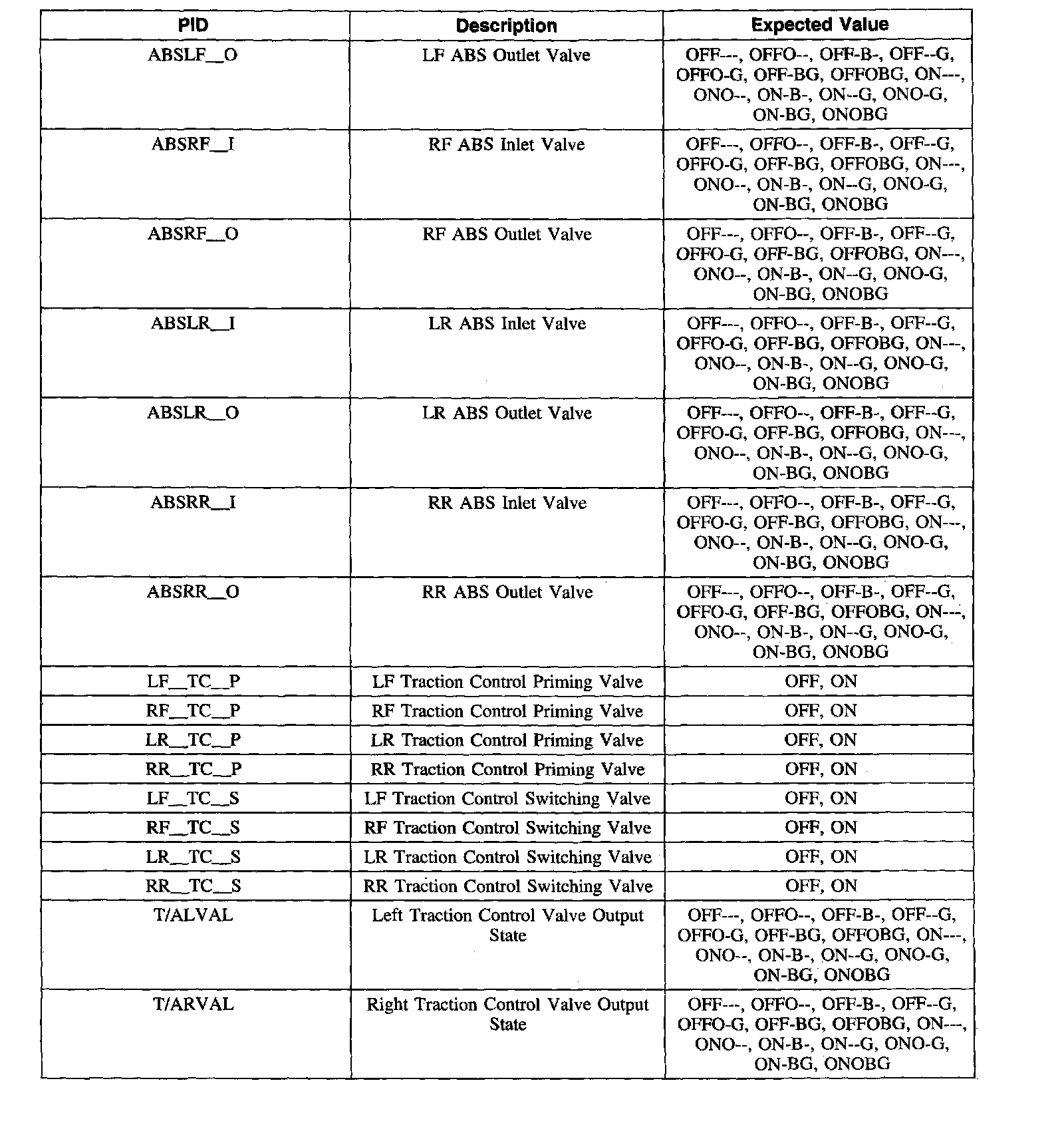

Part 2 Of 2:
