Automatic Transmission/Transaxle
>>
Converter Housing With Converter Assembly & Fluid Pump Assembly
Converter Housing With Converter Assembly & Fluid Pump Assembly

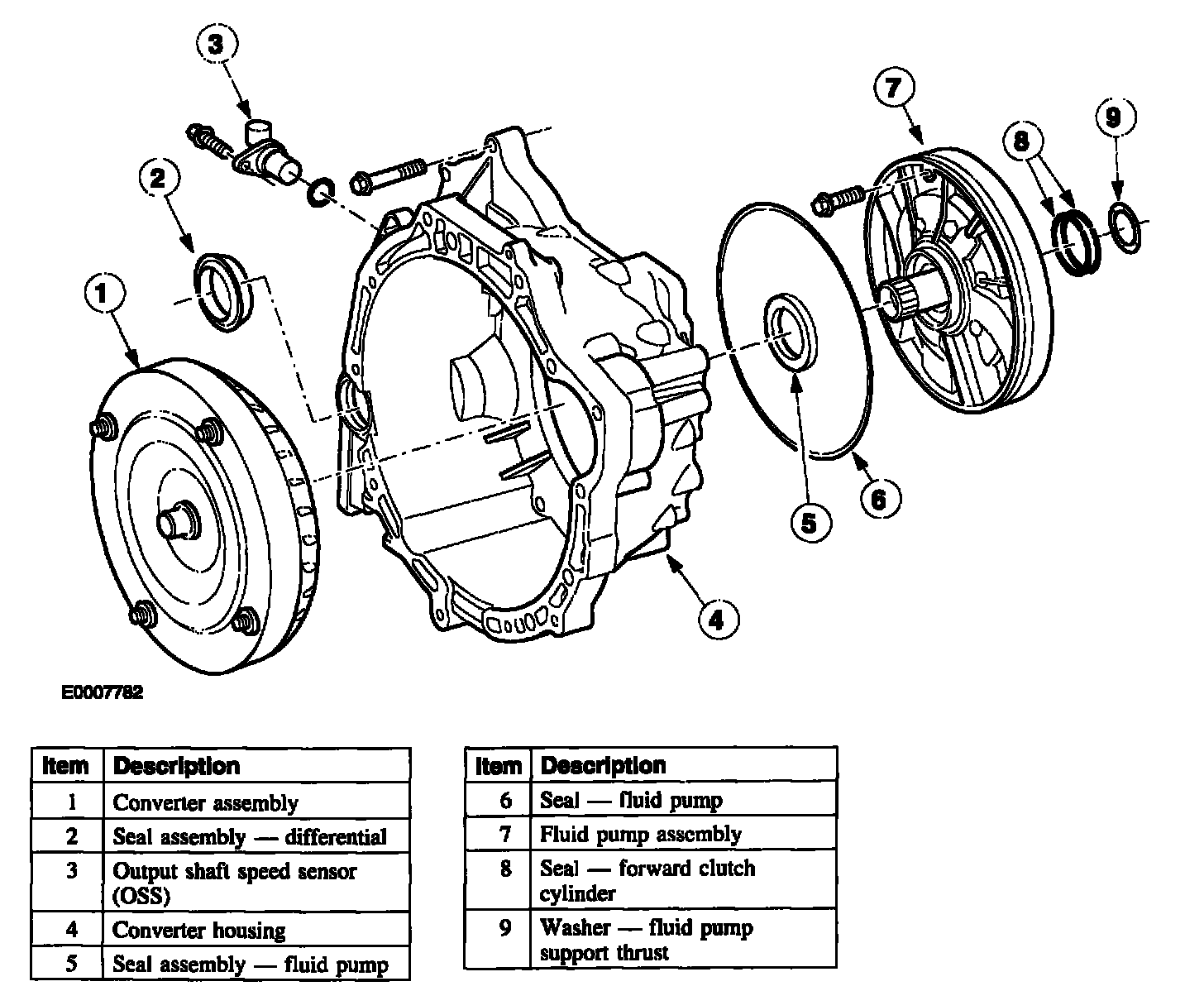

Converter Housing with Converter Assembly and Fluid Pump Assembly (2.0L, shown)
