Rear Suspension

Four Door

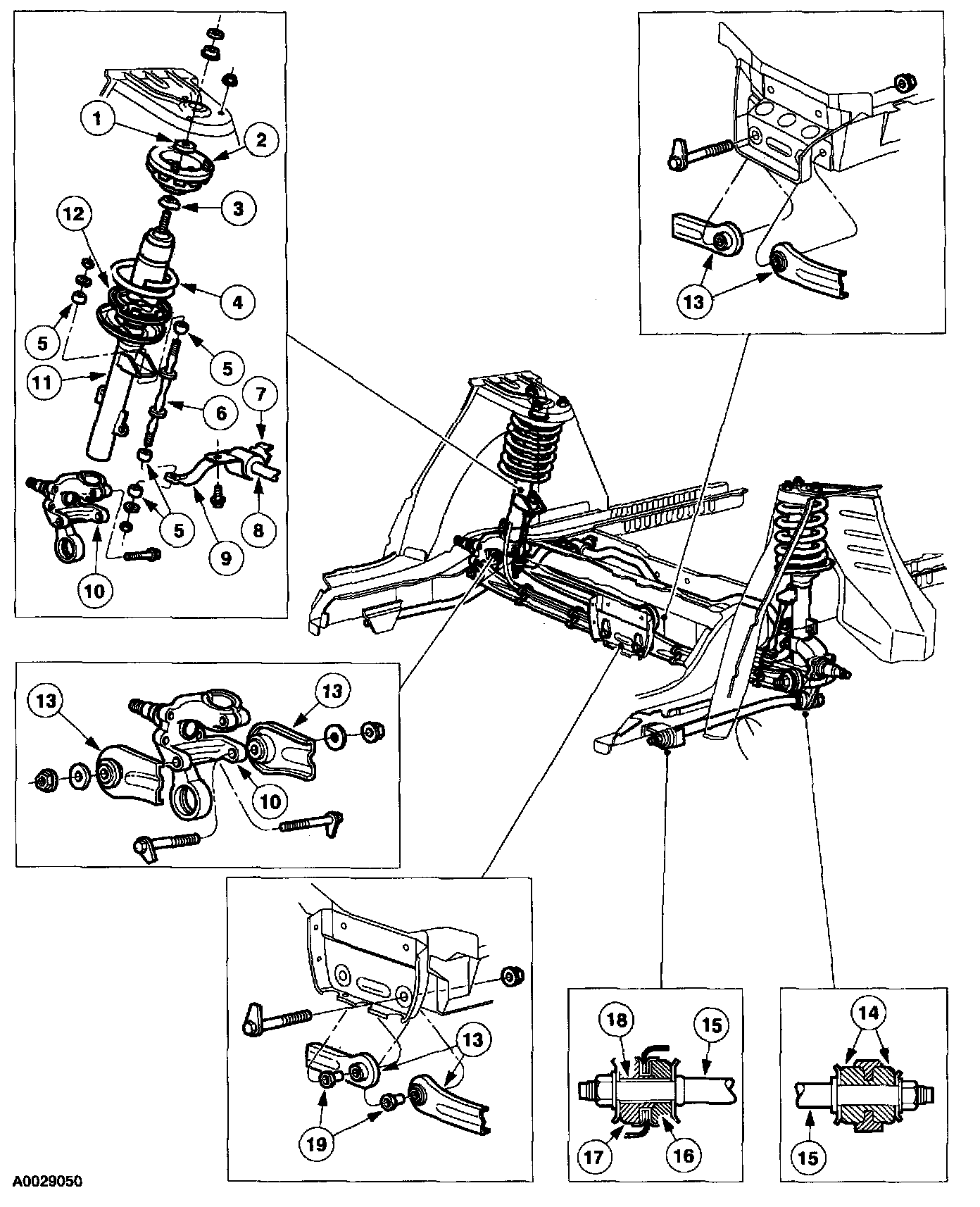

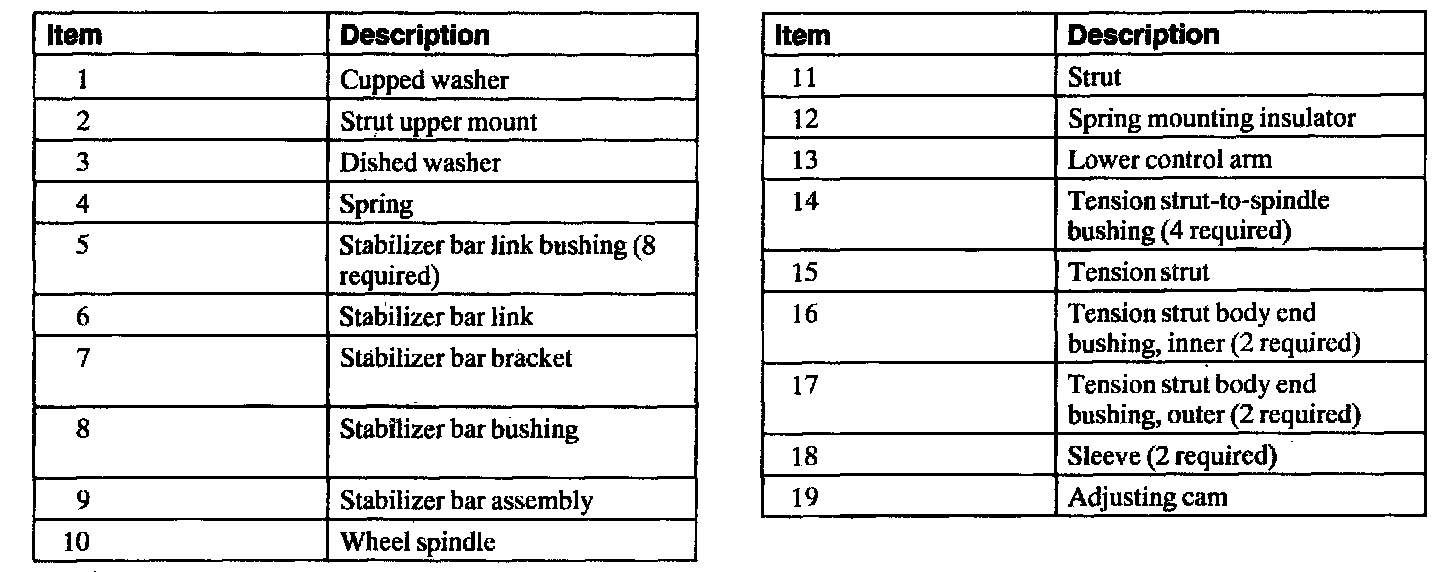

The four door uses a McPherson independent strut rear suspension system consisting of the following components.








Station Wagon

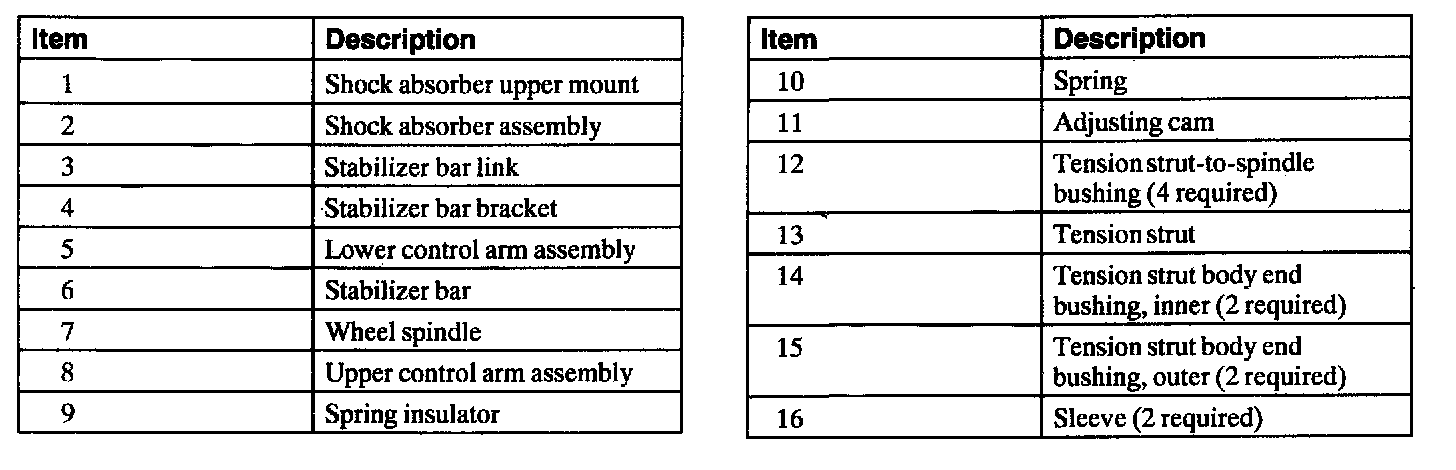

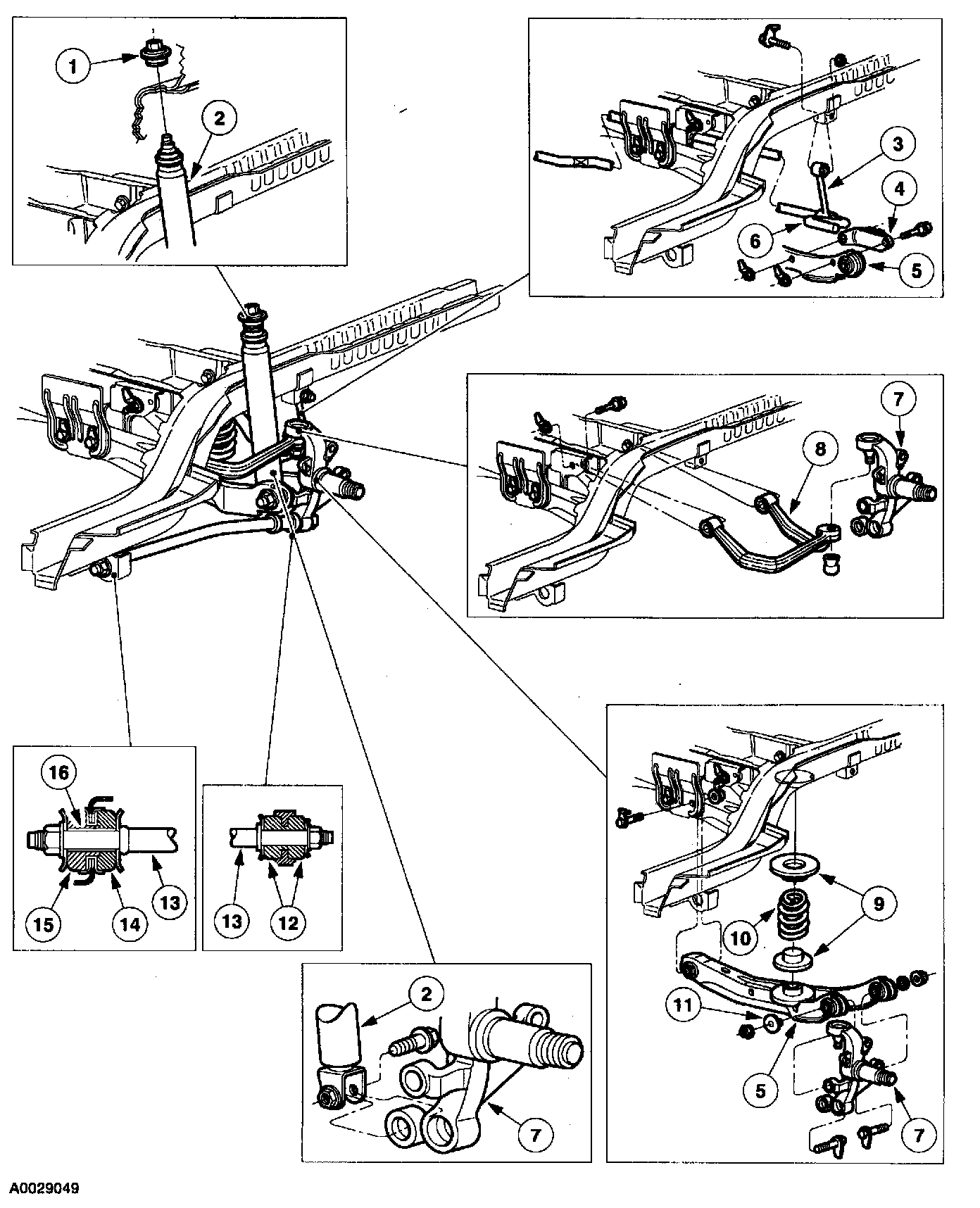

The station wagon uses a short-long arm (SLA) independent rear suspension system consisting of the following components.

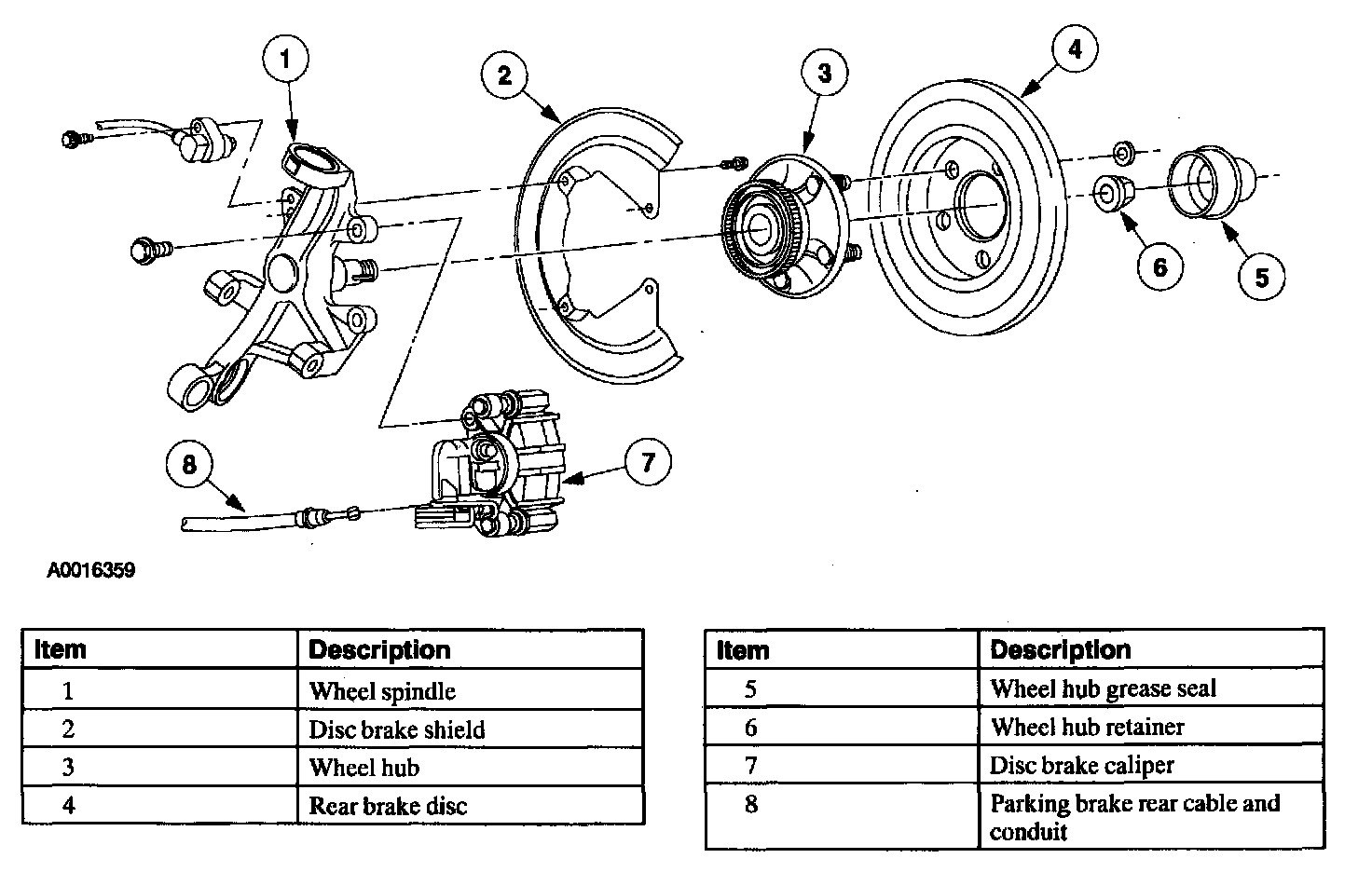

Wheel Assembly - Four Door





Wheel Assembly - Station Wagon
