Front Door Window Regulator: Service and Repair

REMOVAL
1. Remove the door window glass.

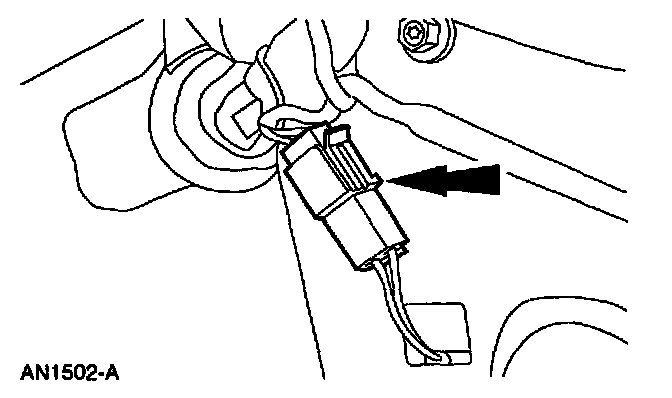

2. Disconnect the electrical connector.

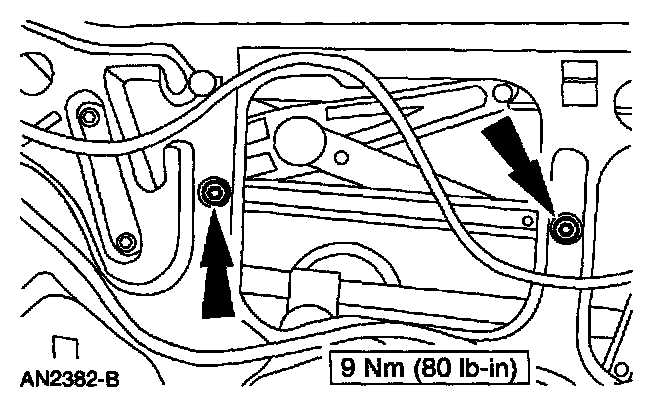

3. Remove the channel.

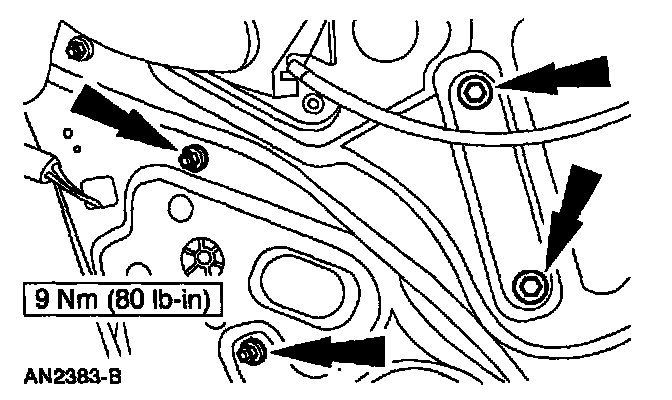

4. Remove the regulator.

INSTALLATION
1. To install, reverse the removal procedure.
