Air Conditioning Compressor Bracket

REMOVAL
1. Remove the A/C compressor.

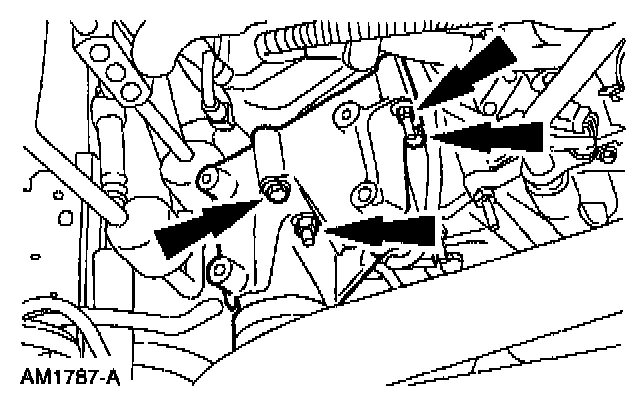

2. Remove the three bolts and one nut.
3. Remove the A/C compressor mounting bracket.

INSTALLATION







1. To install, reverse the removal procedure.
