Home >> Ford >> 2001 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test C: Power Seat Does Not Move Vertically-Rear

Test C: Power Seat Does Not Move Vertically-Rear

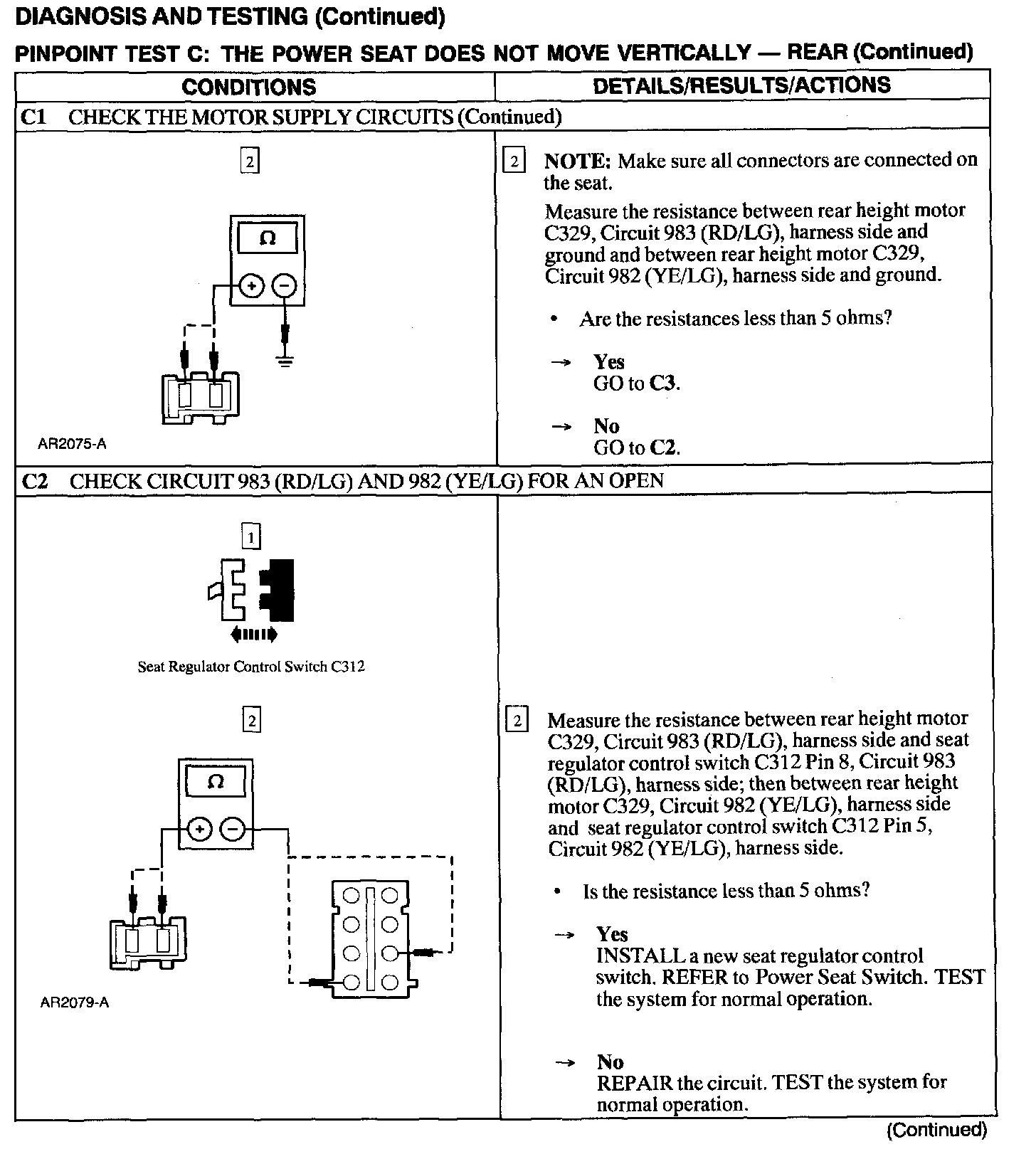

C1:






C1 - C2:

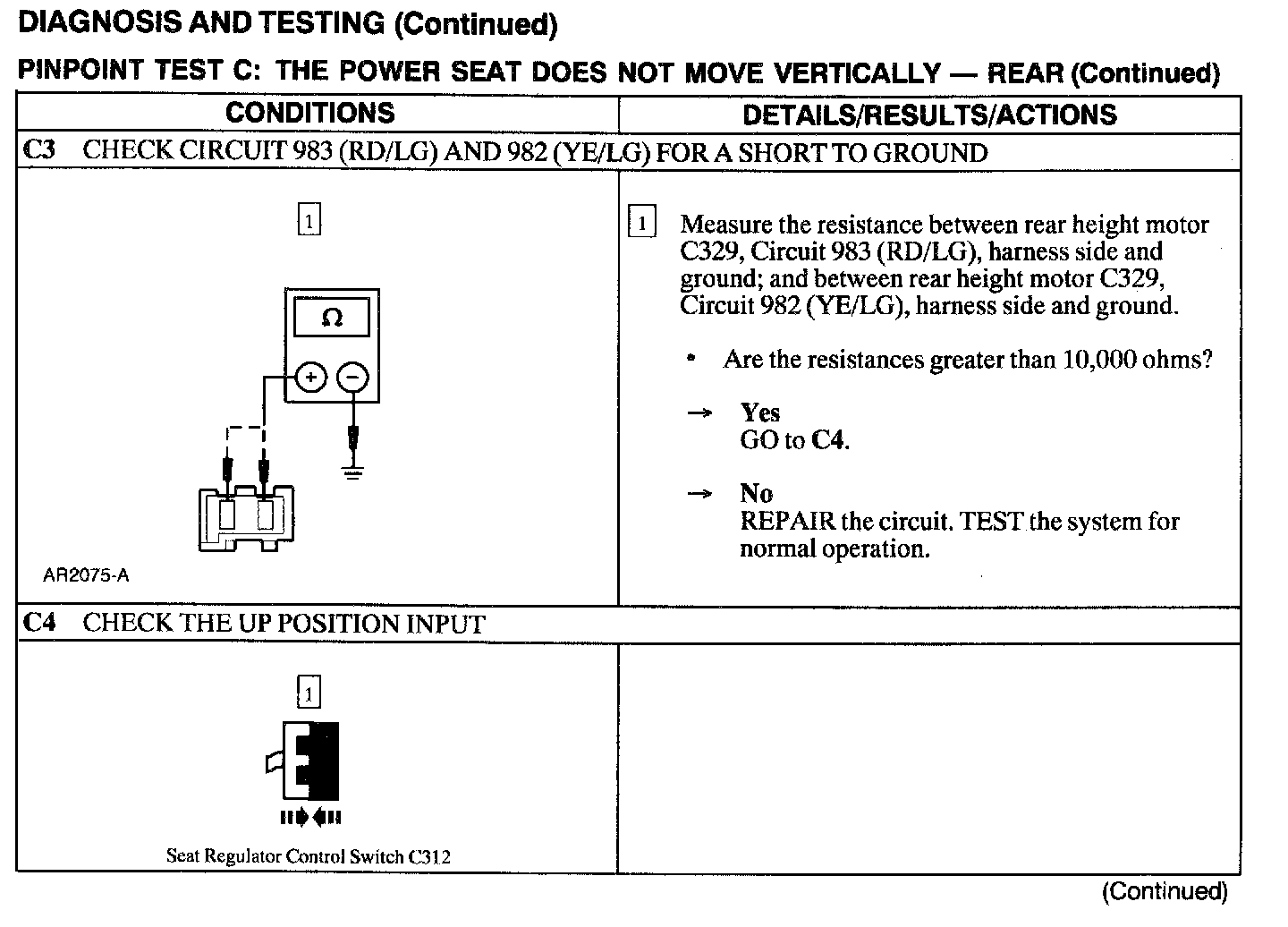

C3 - C4:






C4:






C5:
