Focus ZTS L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Switch
>>
Service and Repair
Cruise Control Switch: Service and Repair
REMOVAL
1.
Remove the driver air bag module.
2.

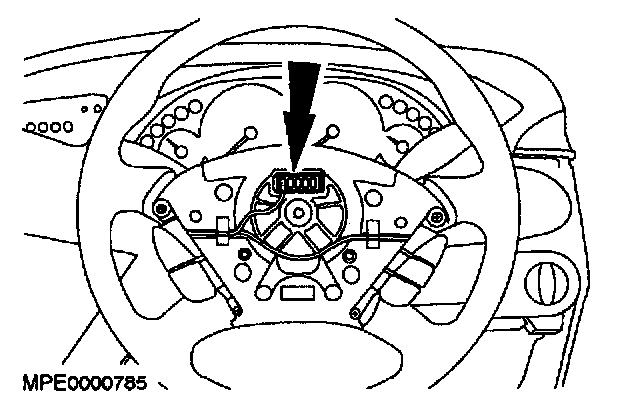

Disconnect the speed control switch electrical connector.
3.

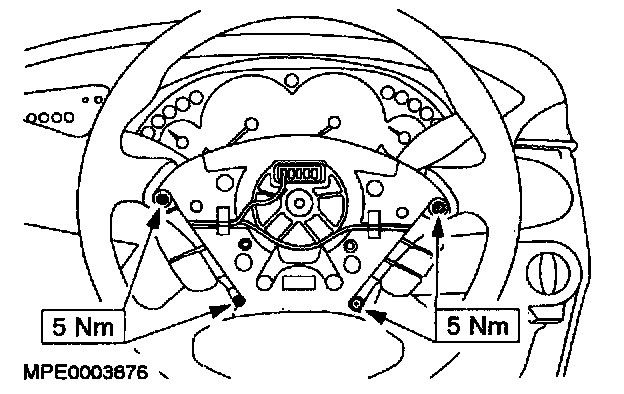

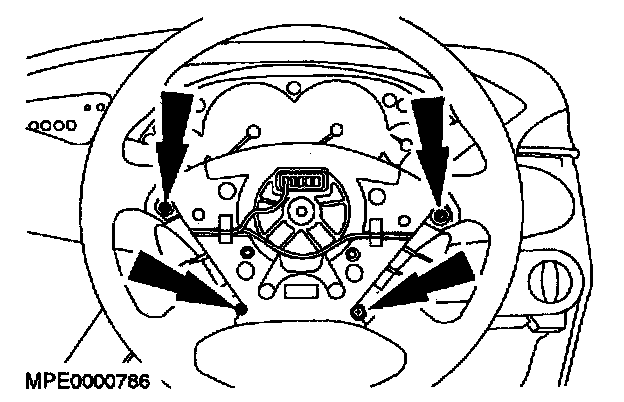

Remove the speed control switches.
INSTALLATION
1.
To install, reverse the removal procedure.
