General

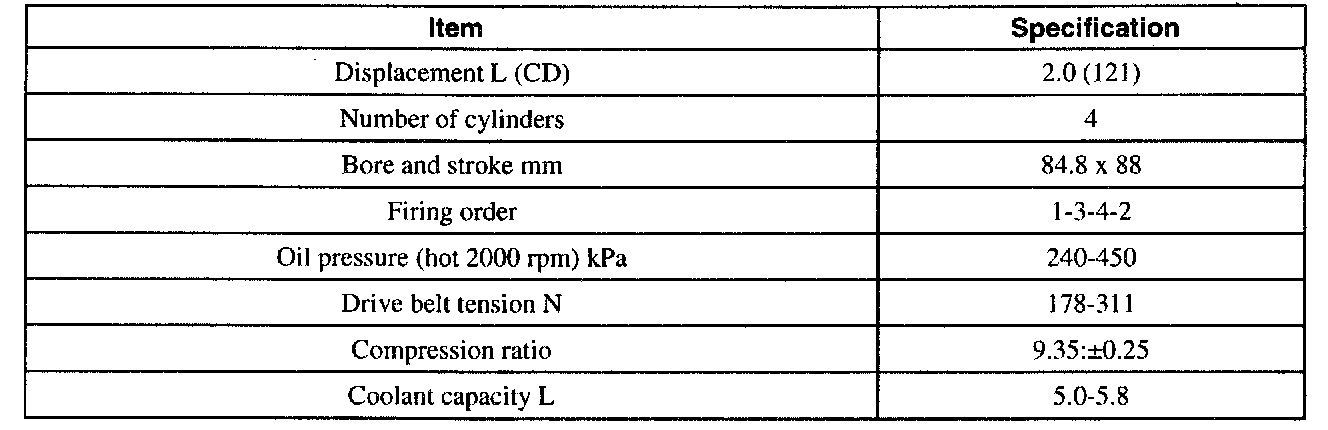

General Specifications

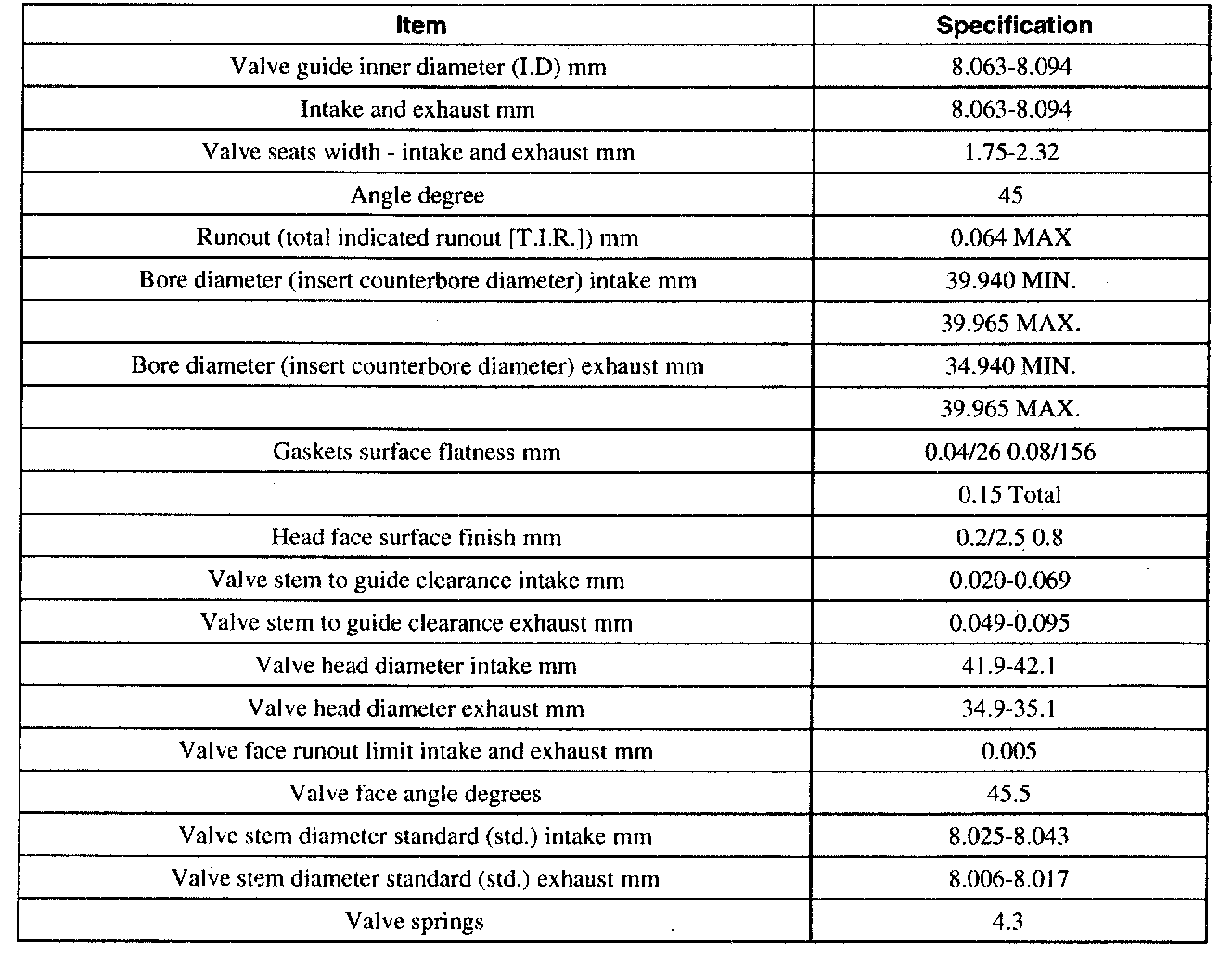

Cylinder Head and Valve Train

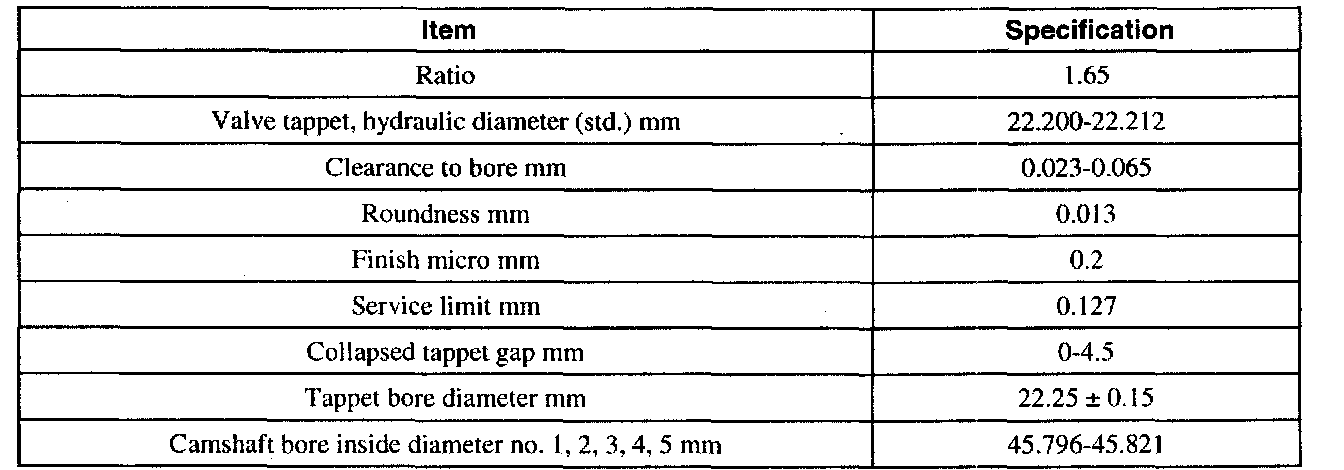

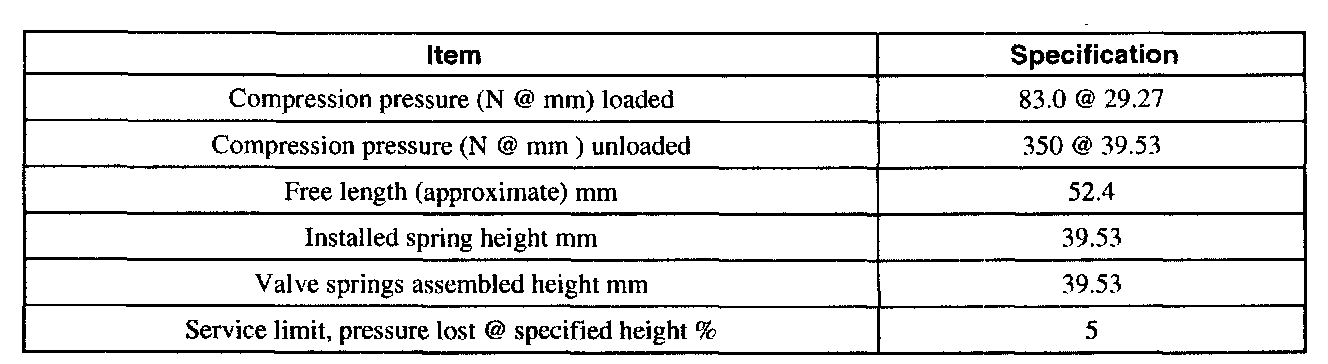

Rocker Arm

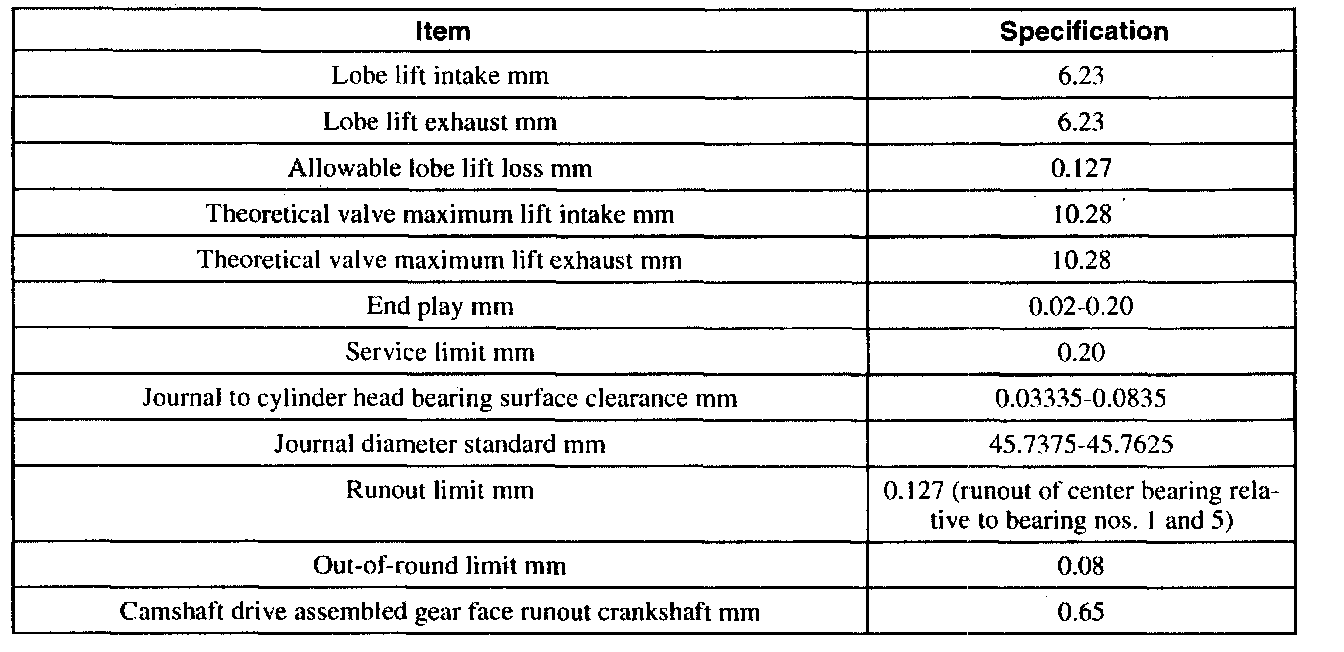

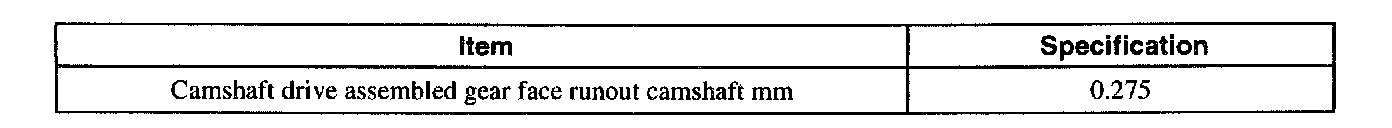

Camshaft

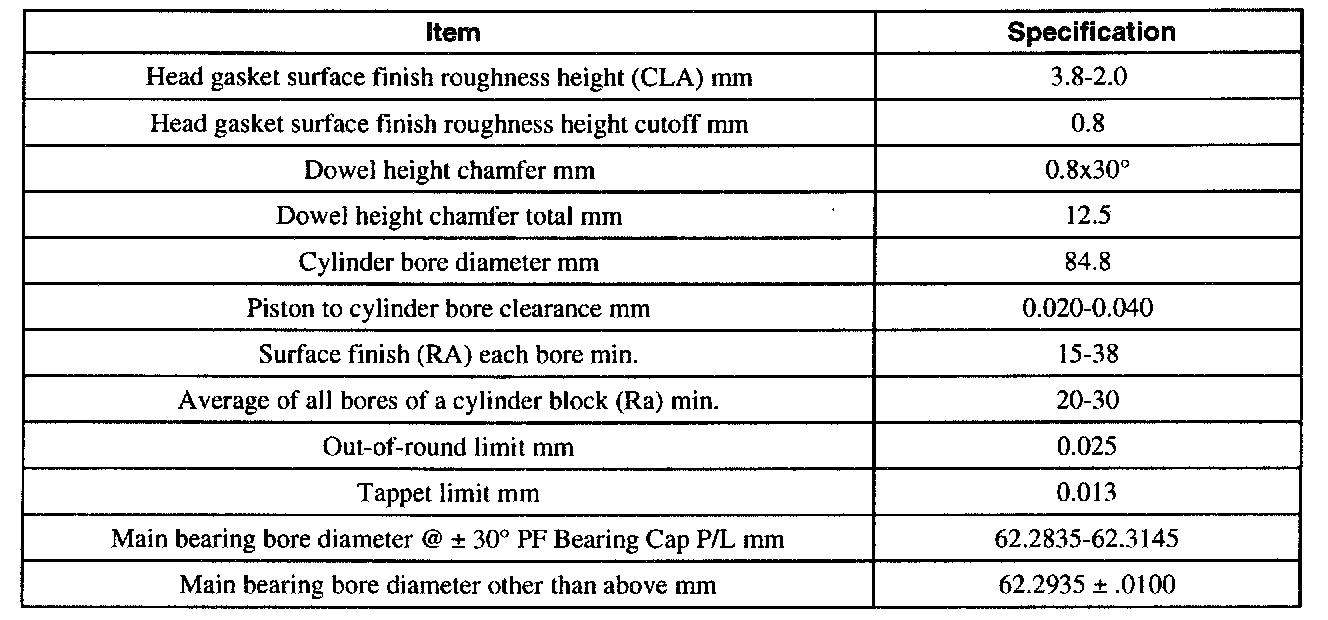

Cylinder Block

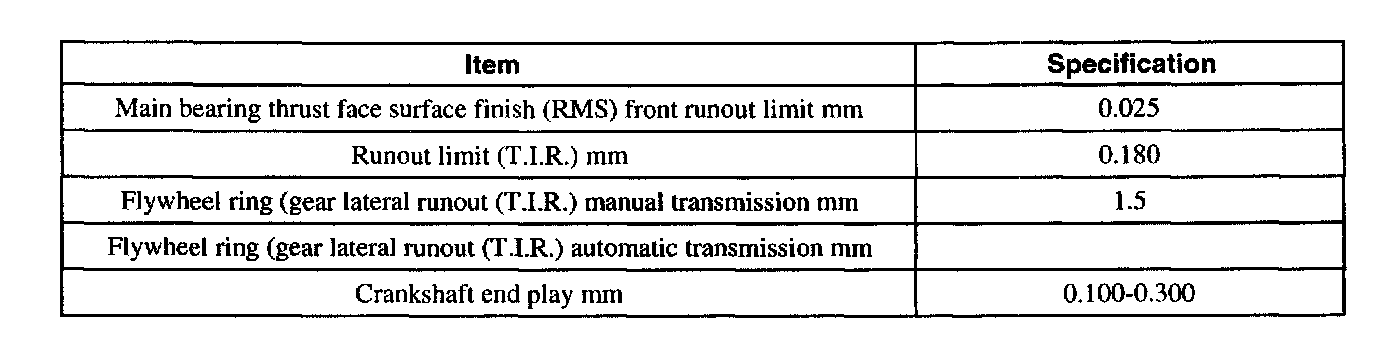

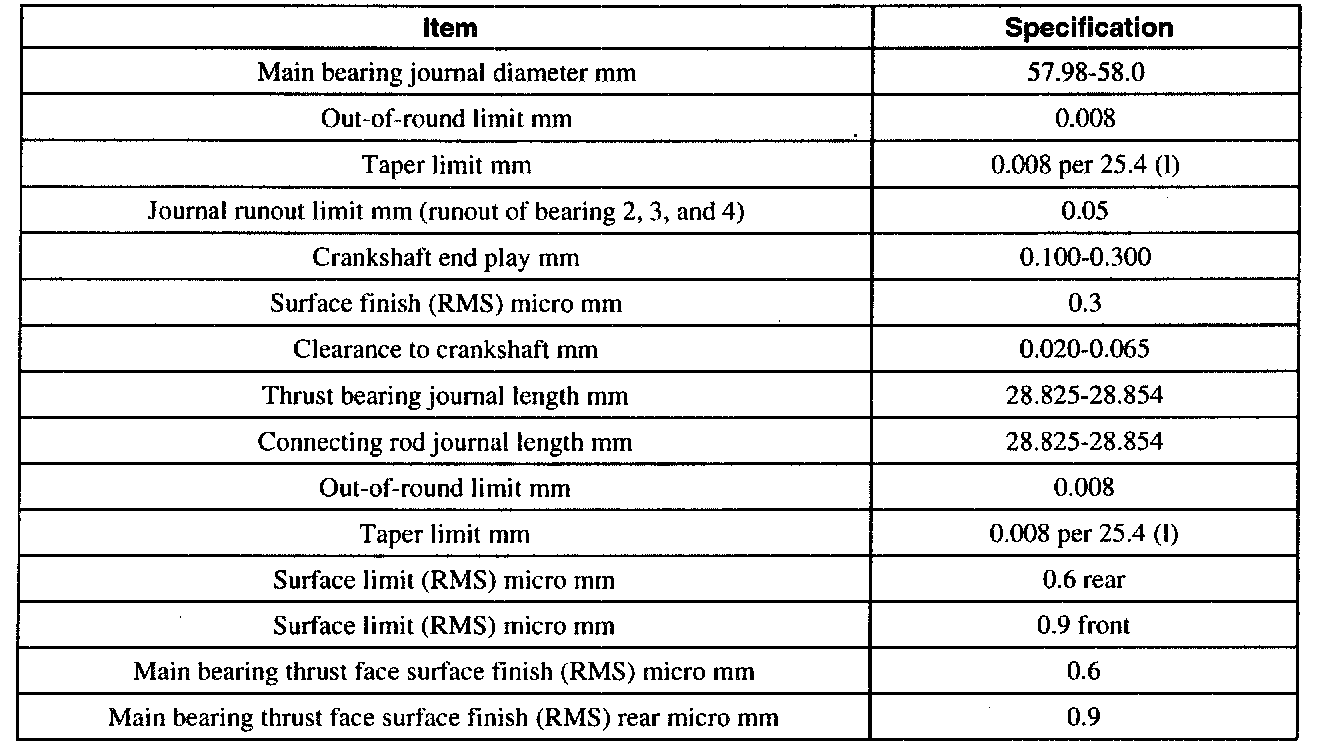

Crankshaft

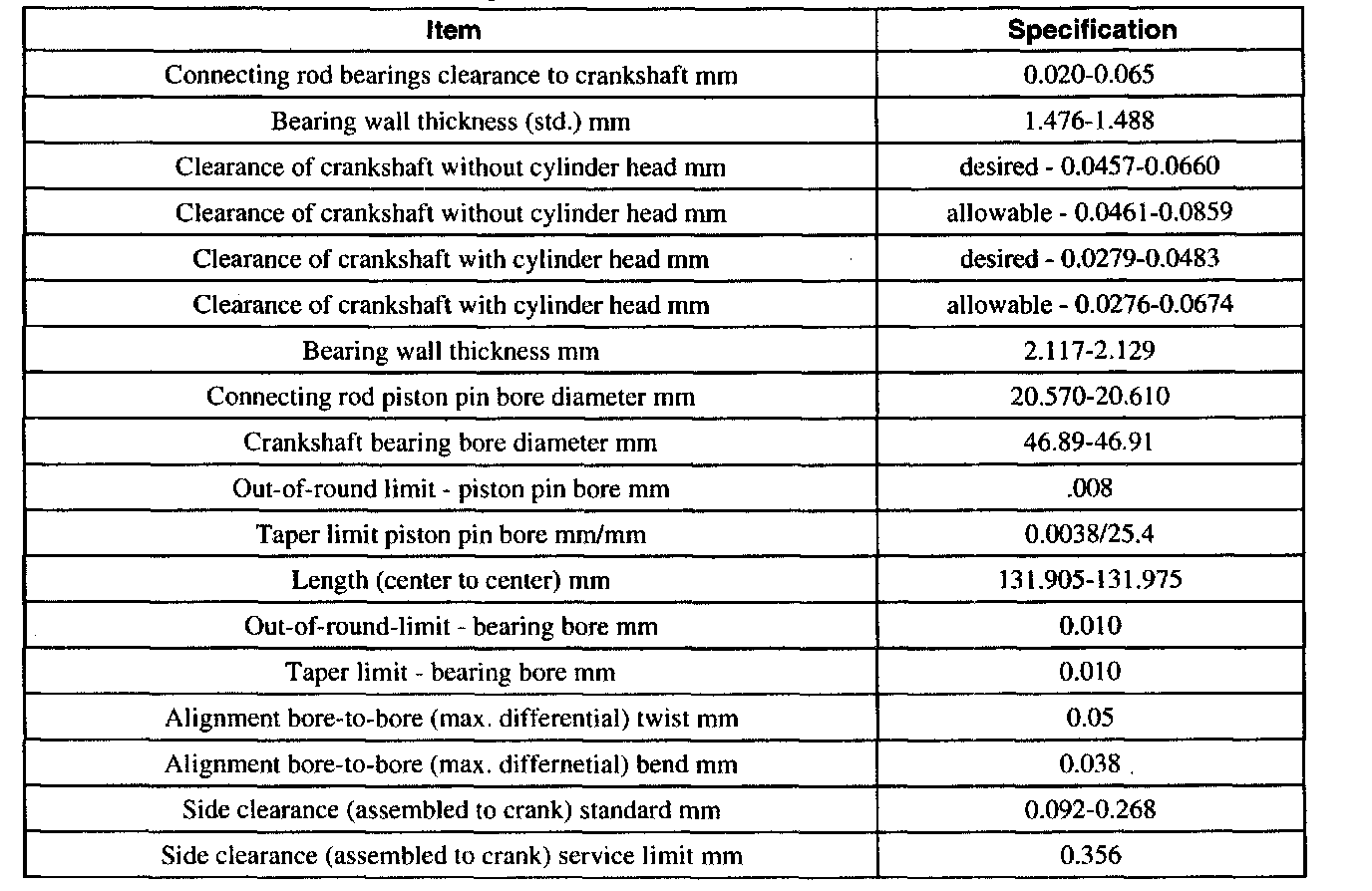

Connecting Rod

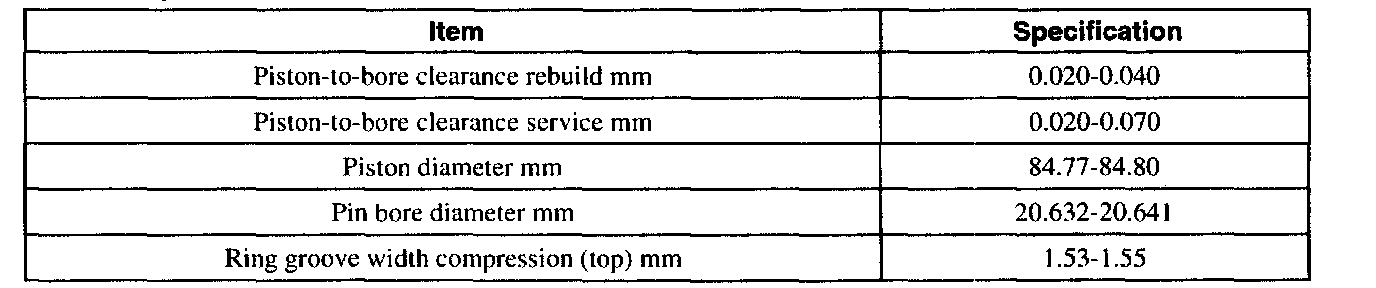

Pistons

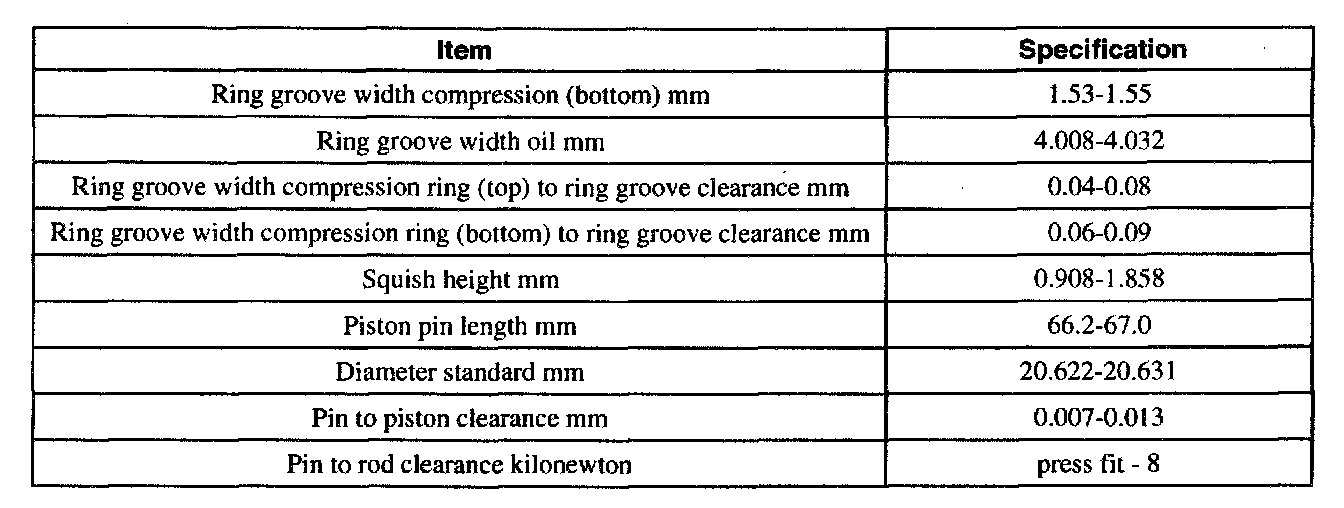

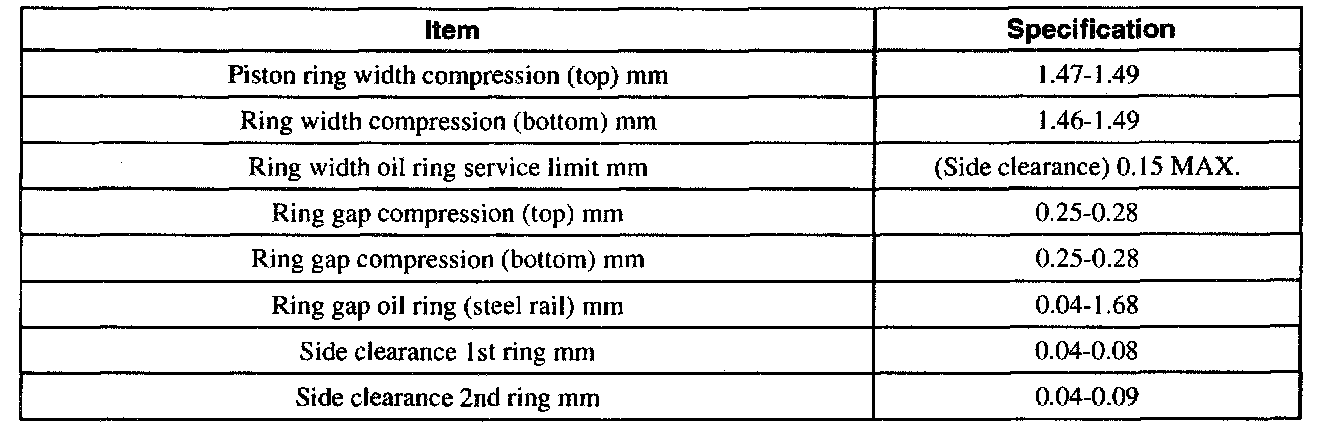

Pistons Rings

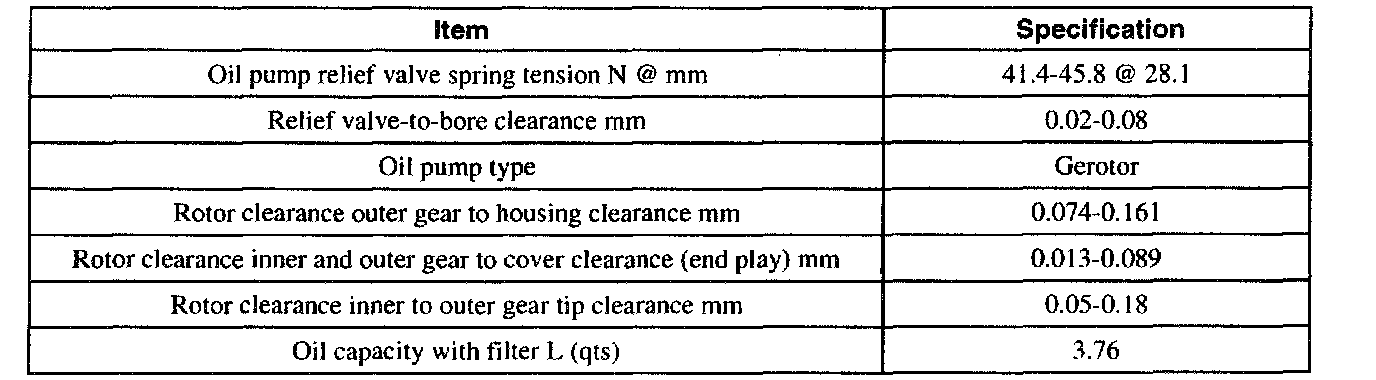

Lubrication System
