Home >> Ford >> 2001 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test E: PCM Does Not Respond to the Diagnostic Tool

Test E: PCM Does Not Respond to the Diagnostic Tool

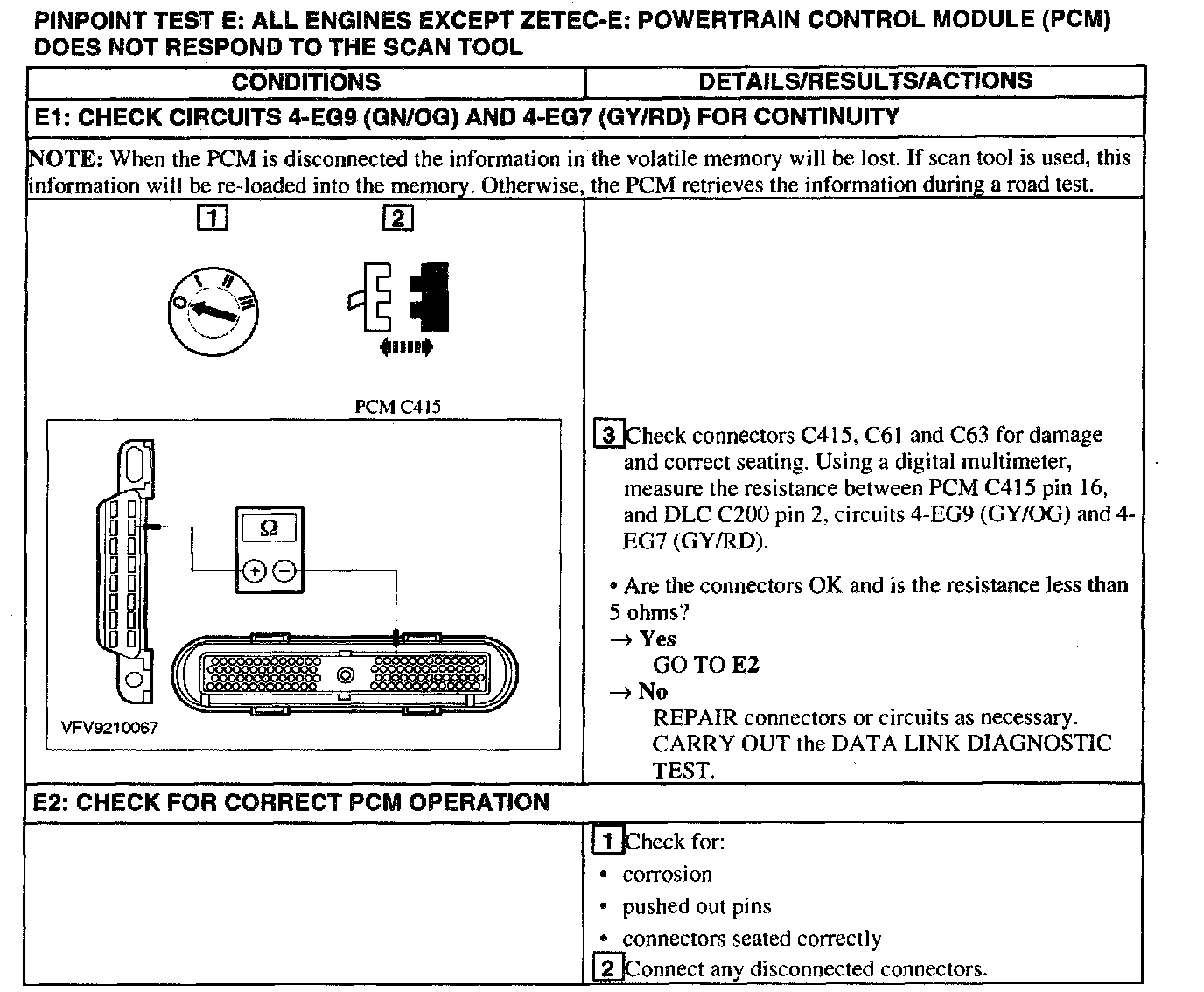

E1 - E2:

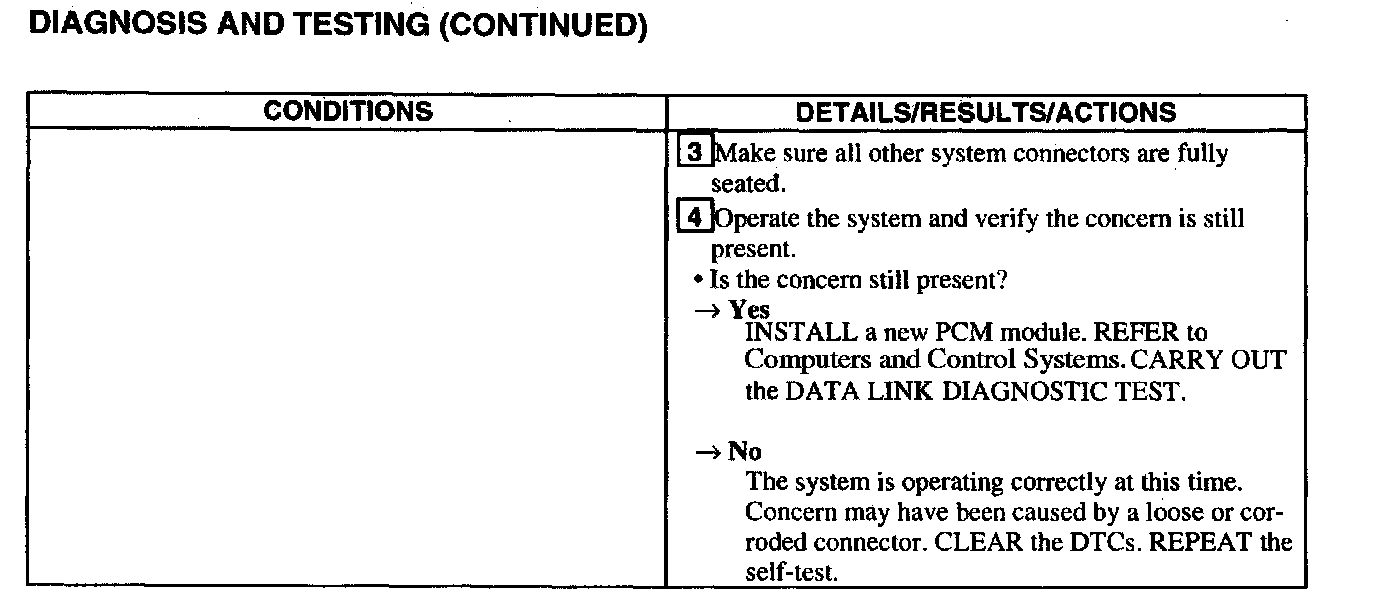

E2:
