Home >> Ford >> 2001 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

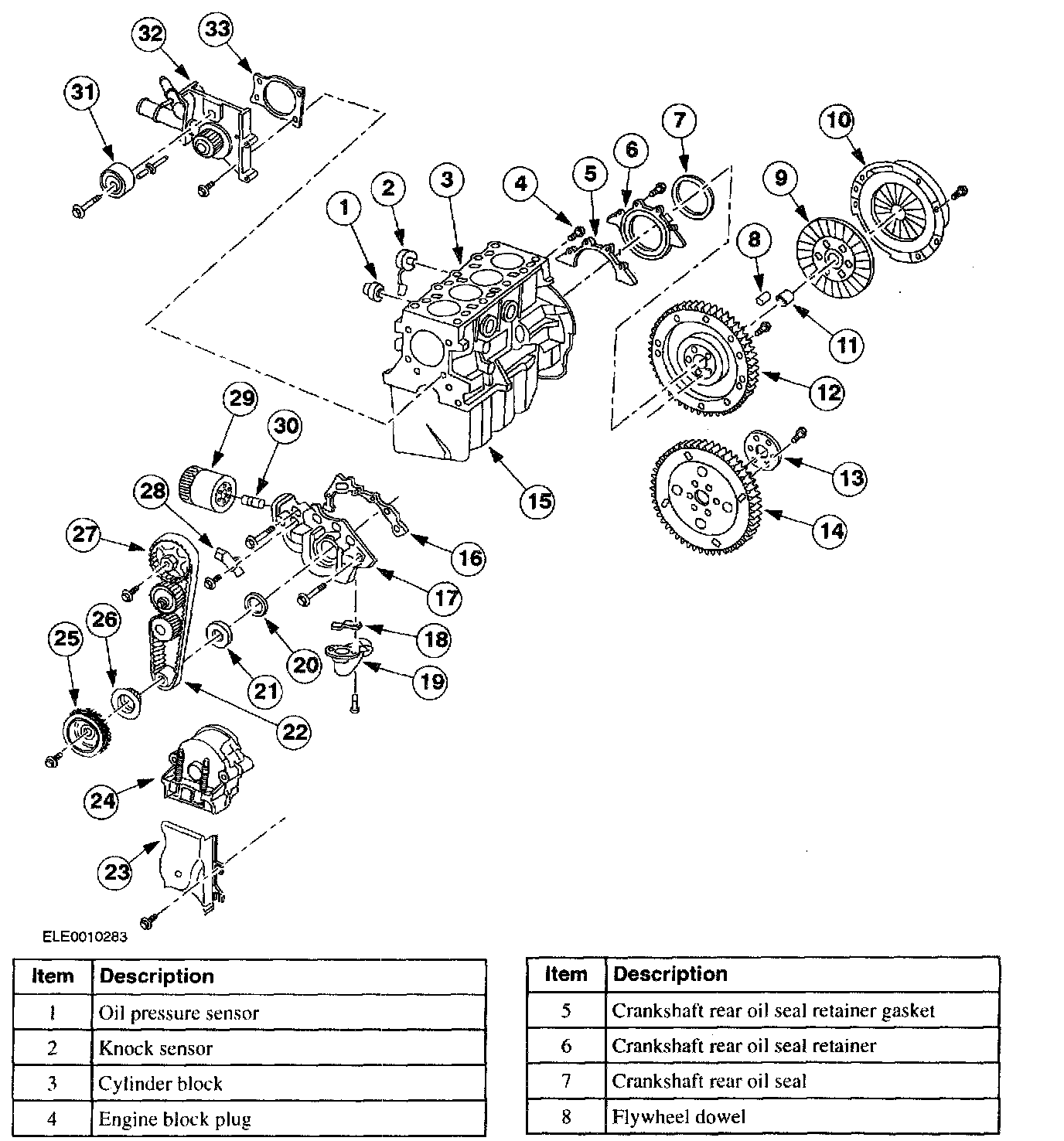

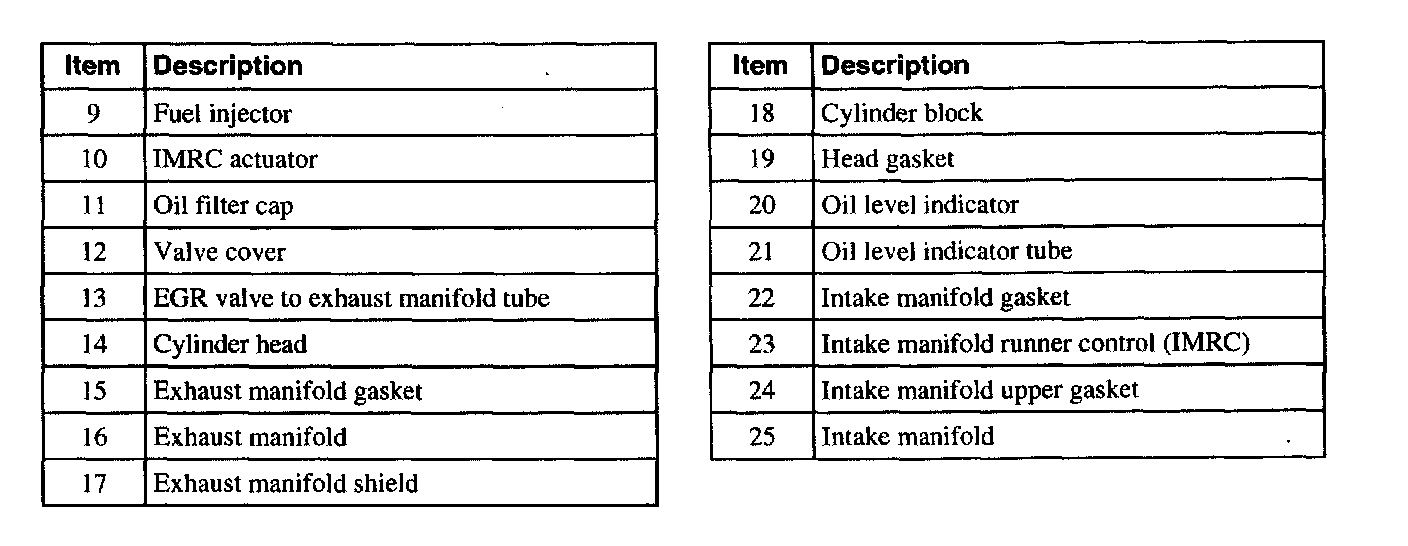

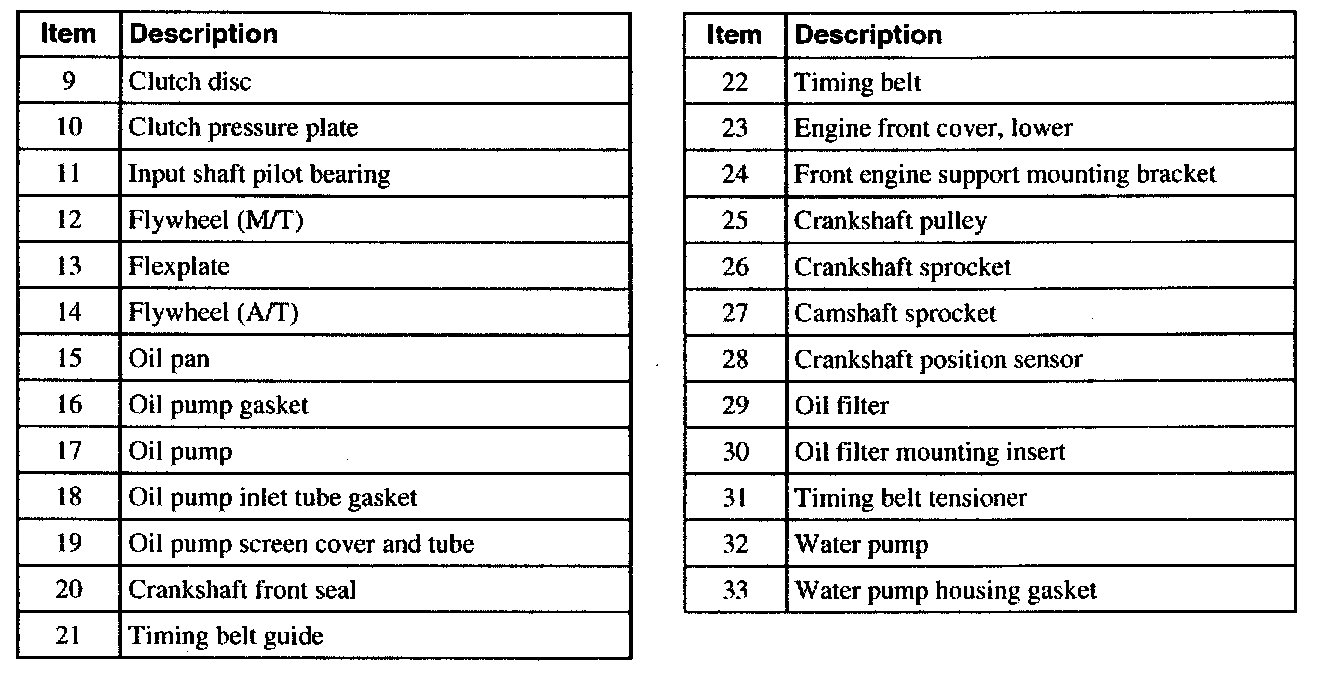

Upper Engine Components

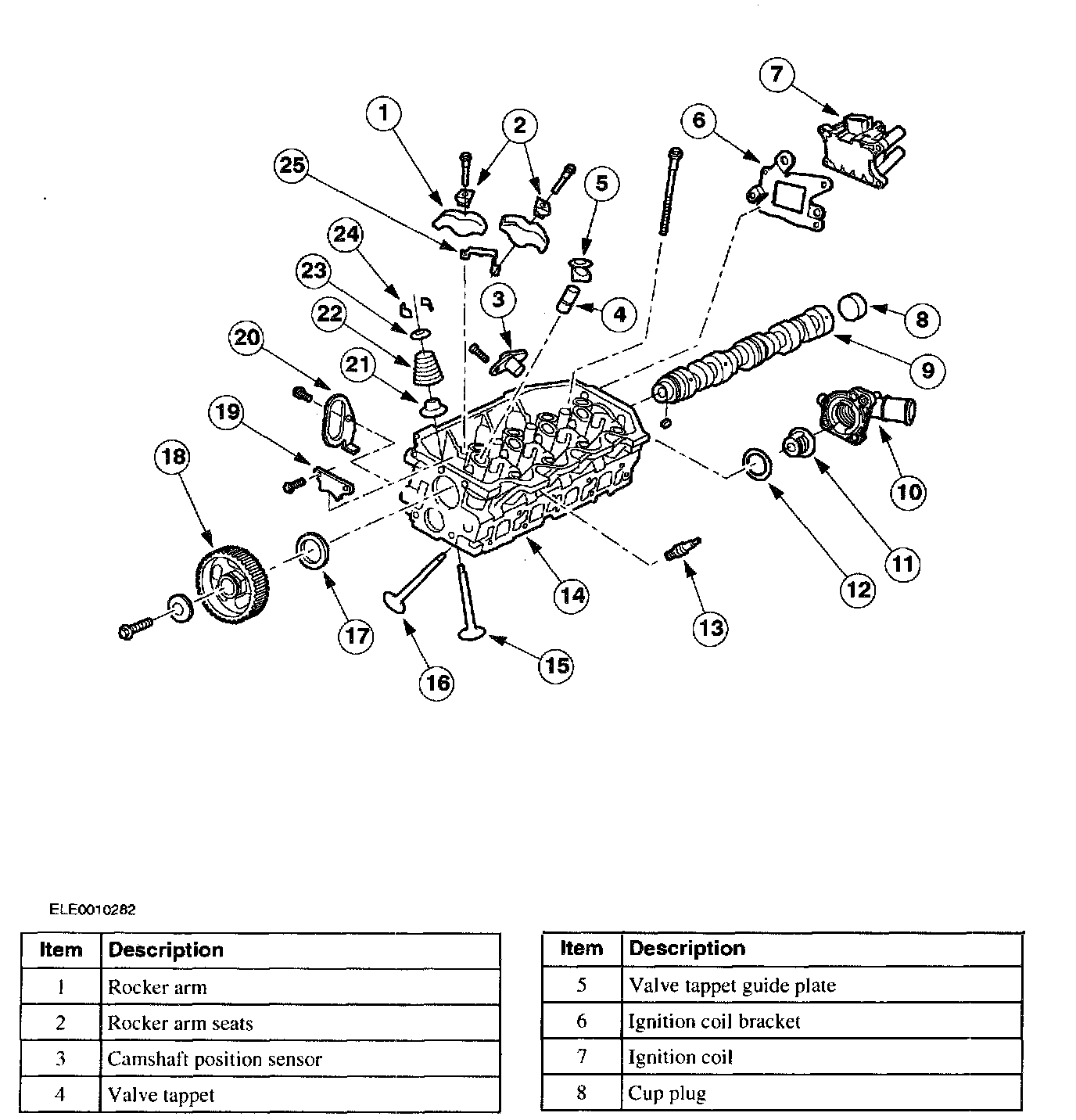

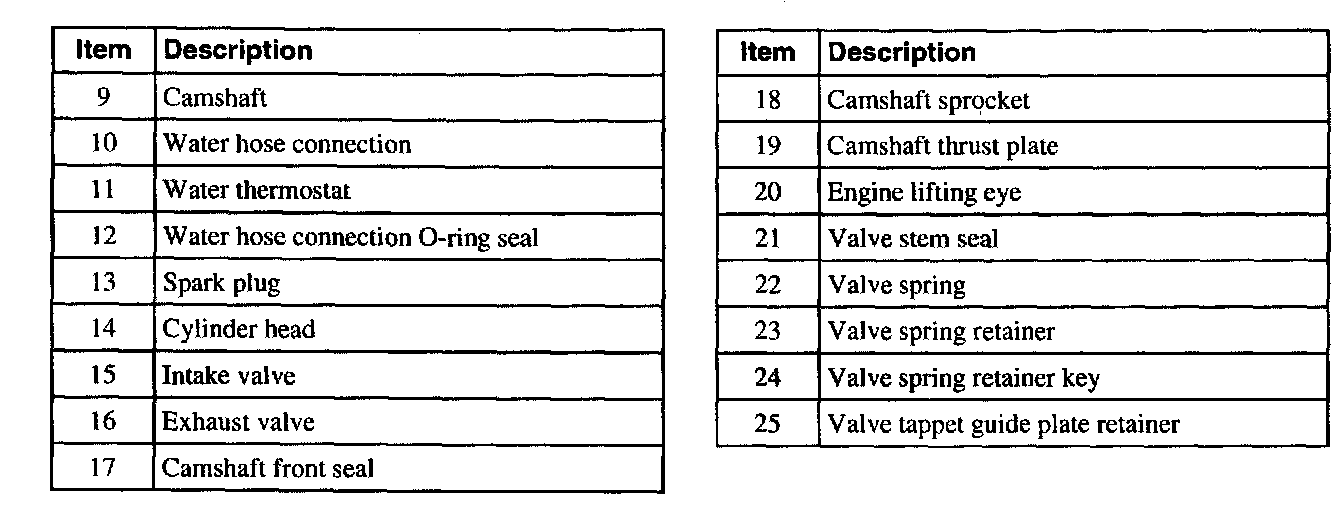

Cylinder Head Components

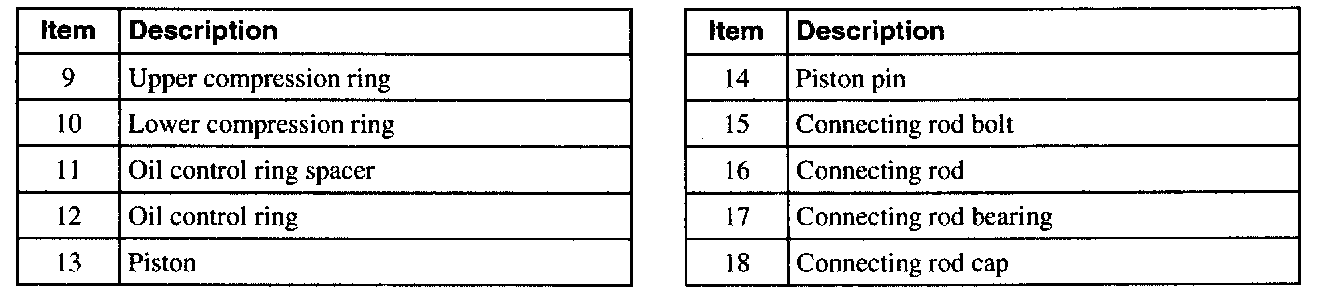

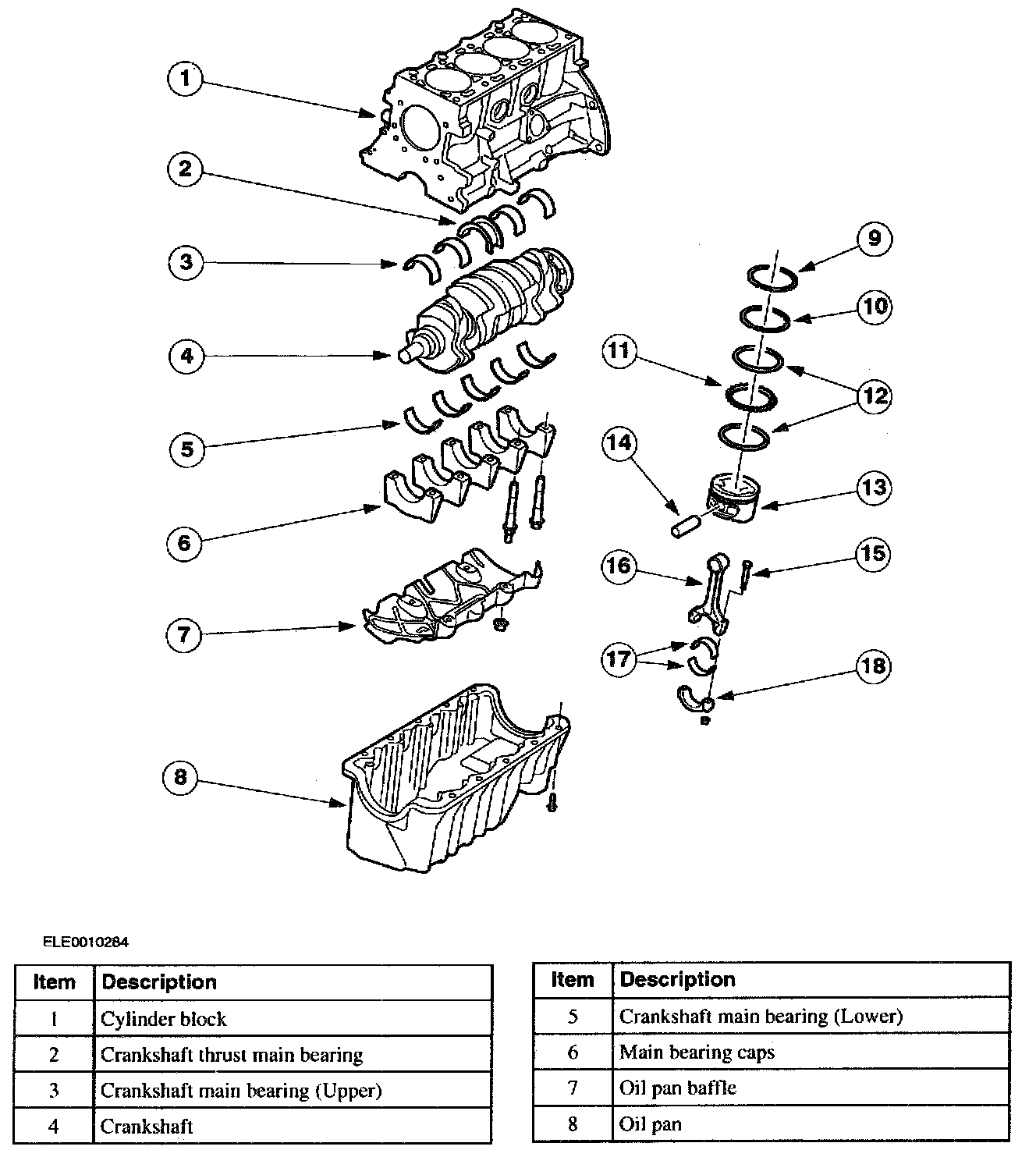

Lower Engine Components
