Air Bag Systems
Air Bag Systems

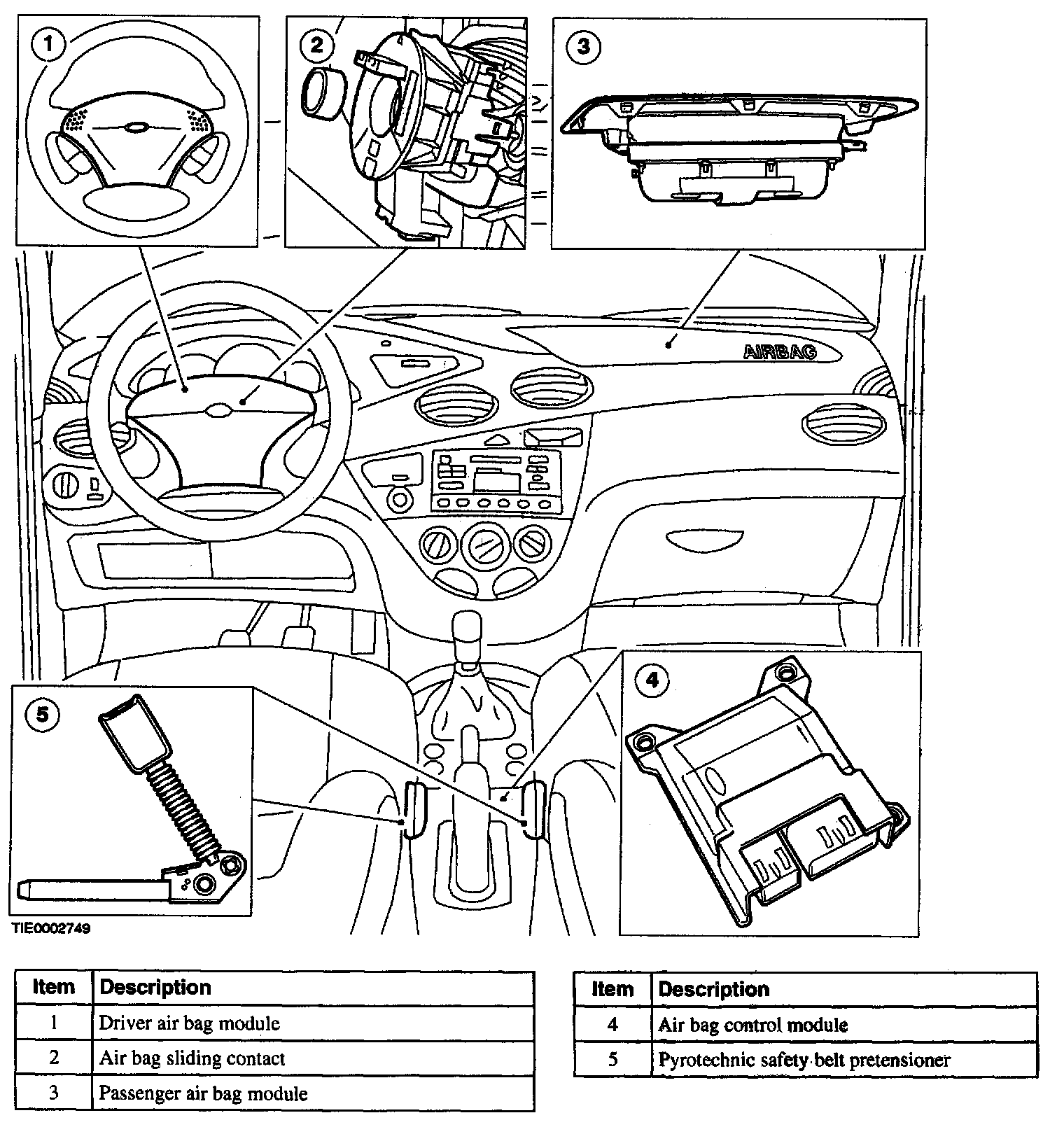

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS):
3-door Shown, Part 1:
Part 2:
