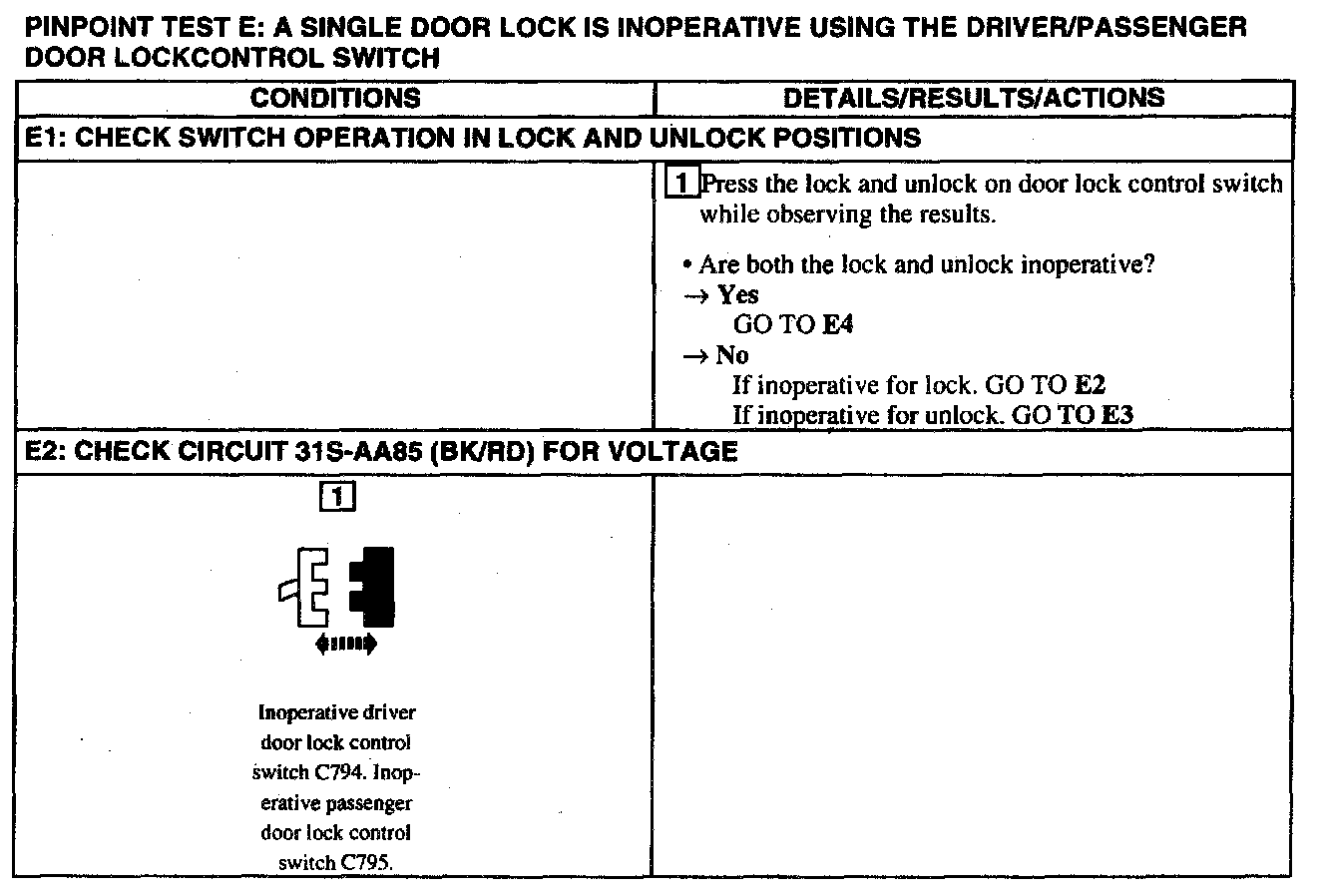

Test E: Door Lock Inoperative Using Driv/Pass Lock Control Switch

E1 - E2:






E2 - E3:

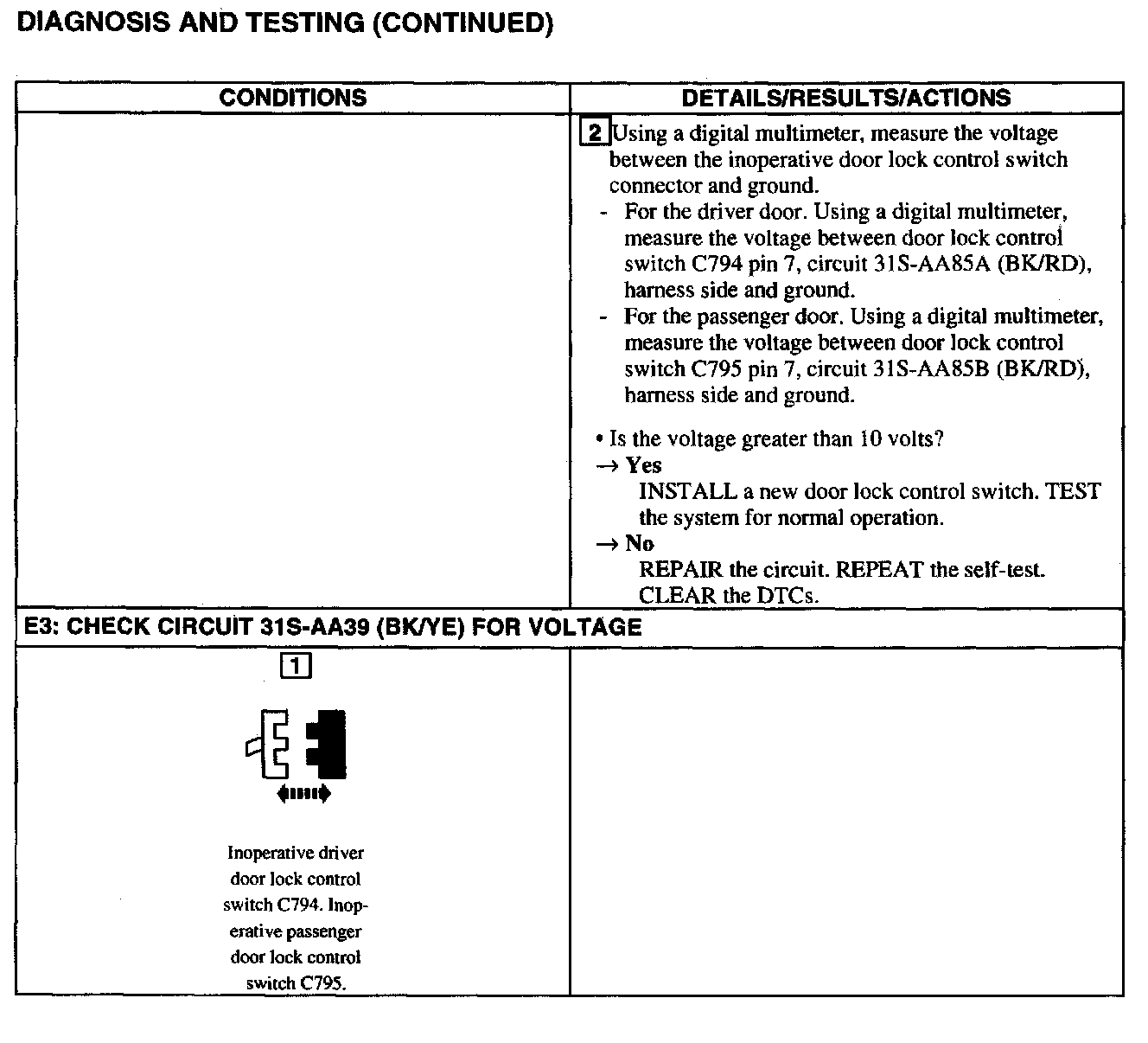

E3 - E4:

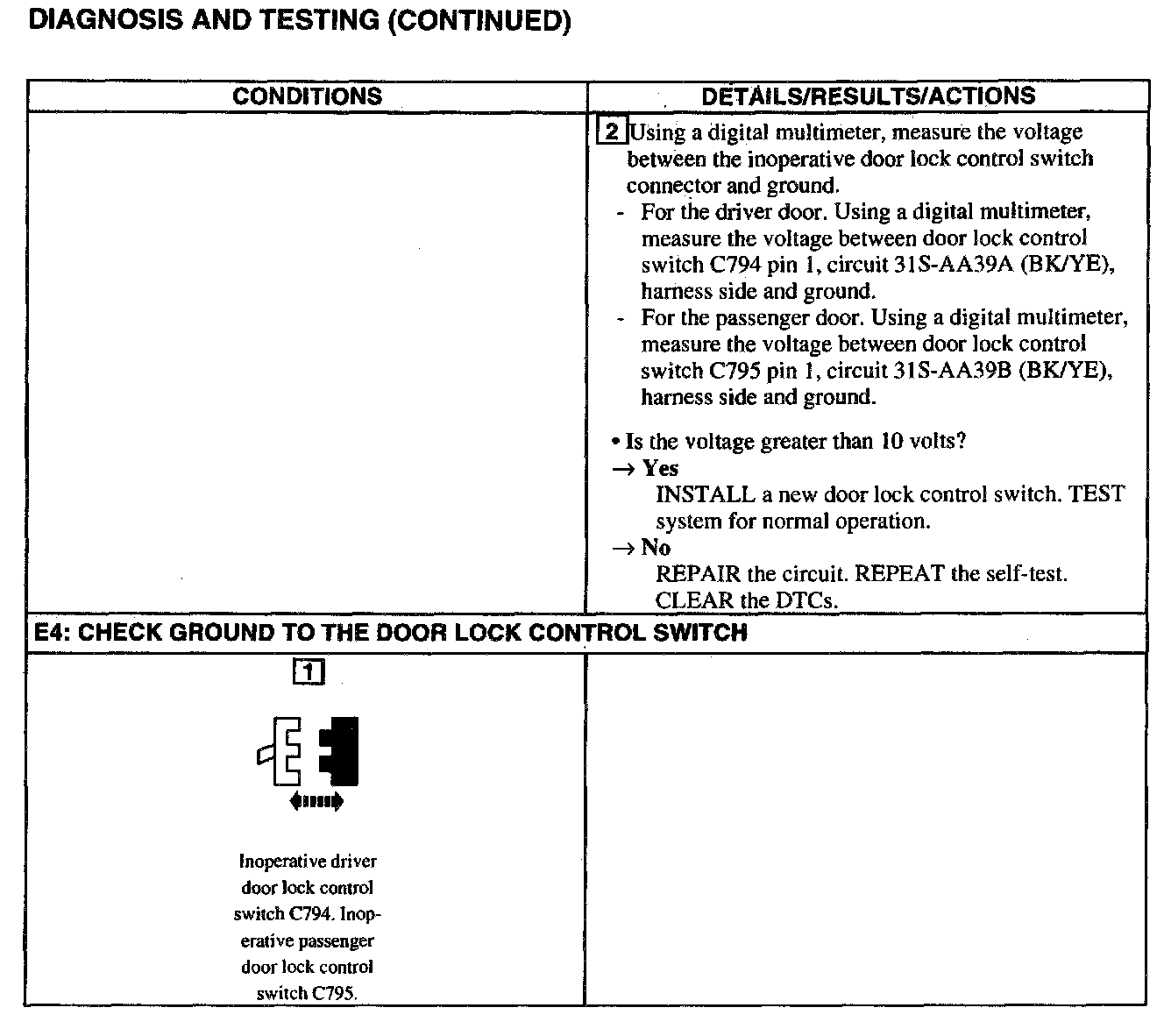

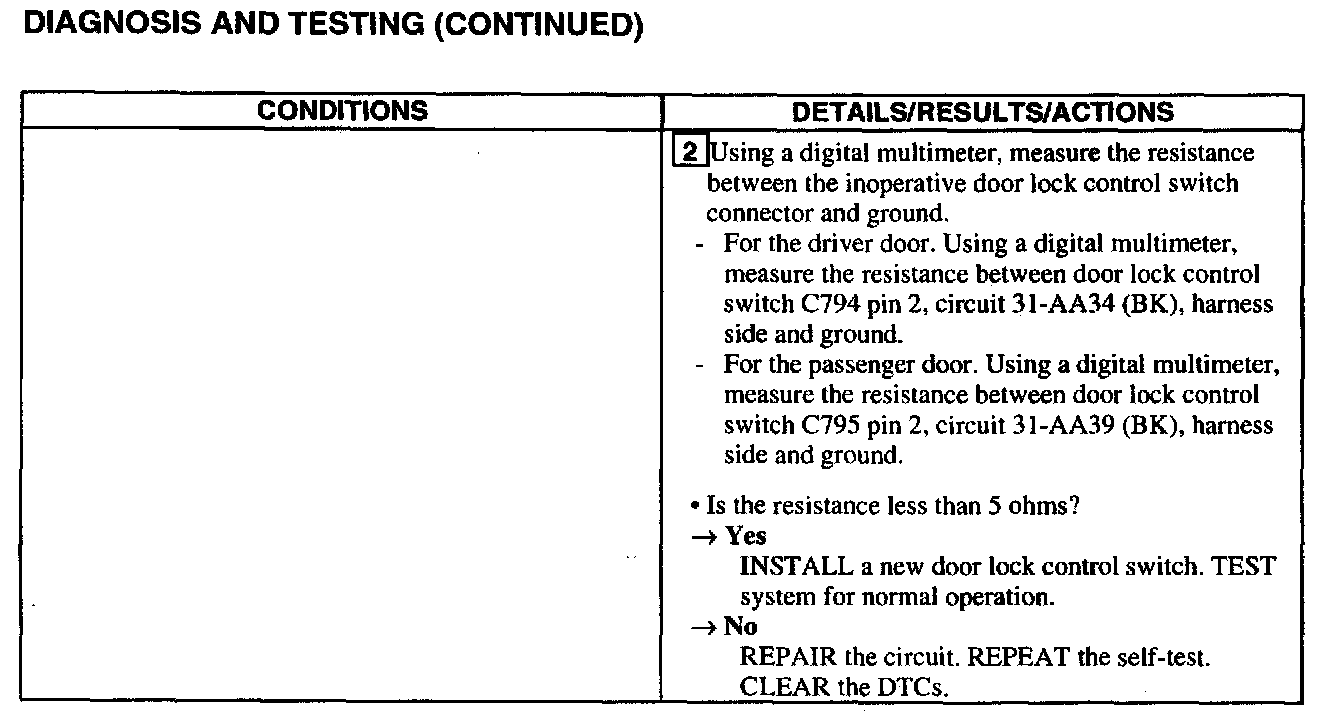

E4:
