Rear

REMOVAL
1. Remove the LH front wheel and tire.

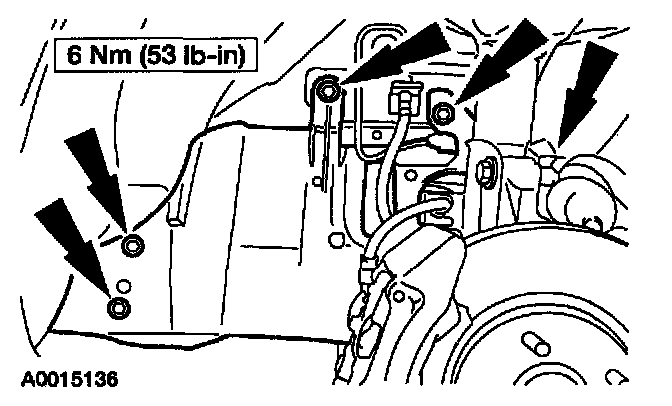

2. Remove the LH splash shield.

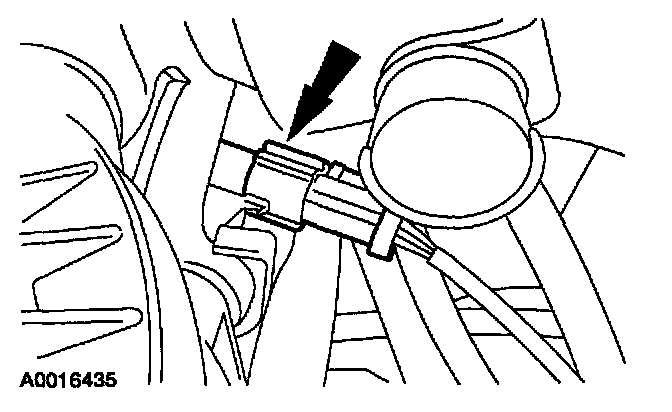

3. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.

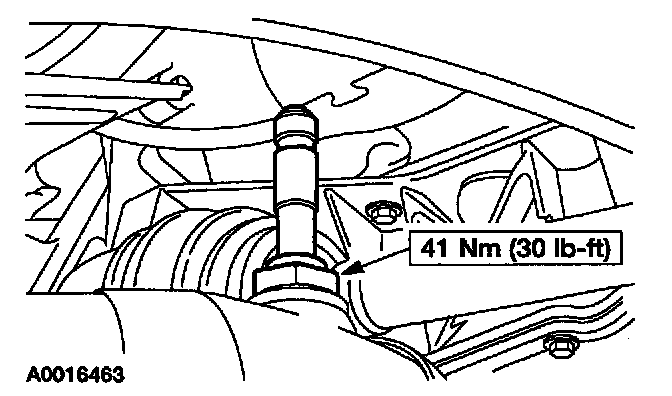

4. Remove the HO2S.

INSTALLATION
1. To install, reverse the removal procedure.
