Escort ZX2 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Component Tests
Component Tests

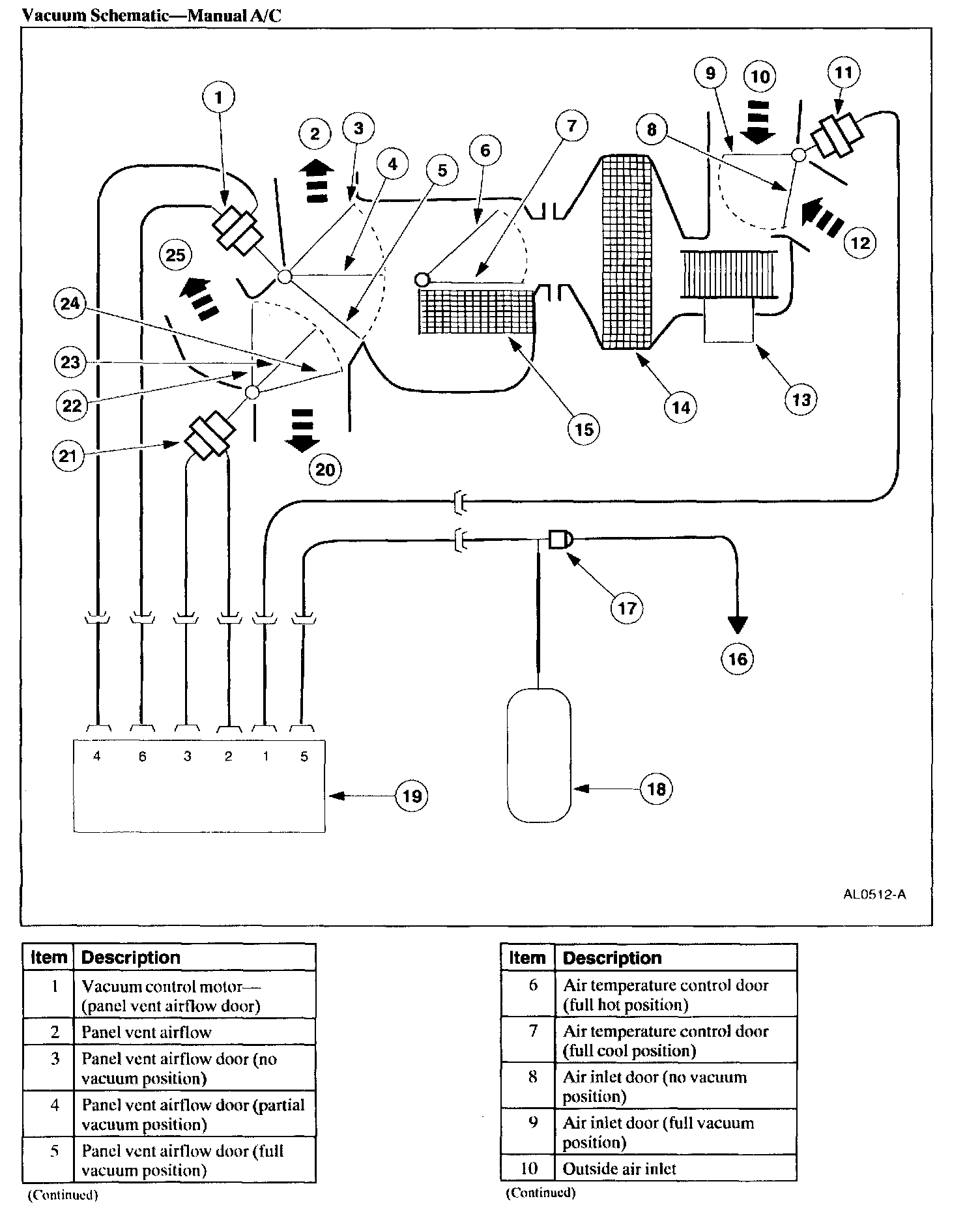

Vacuum Schematic-Manual A/C, Part 1:

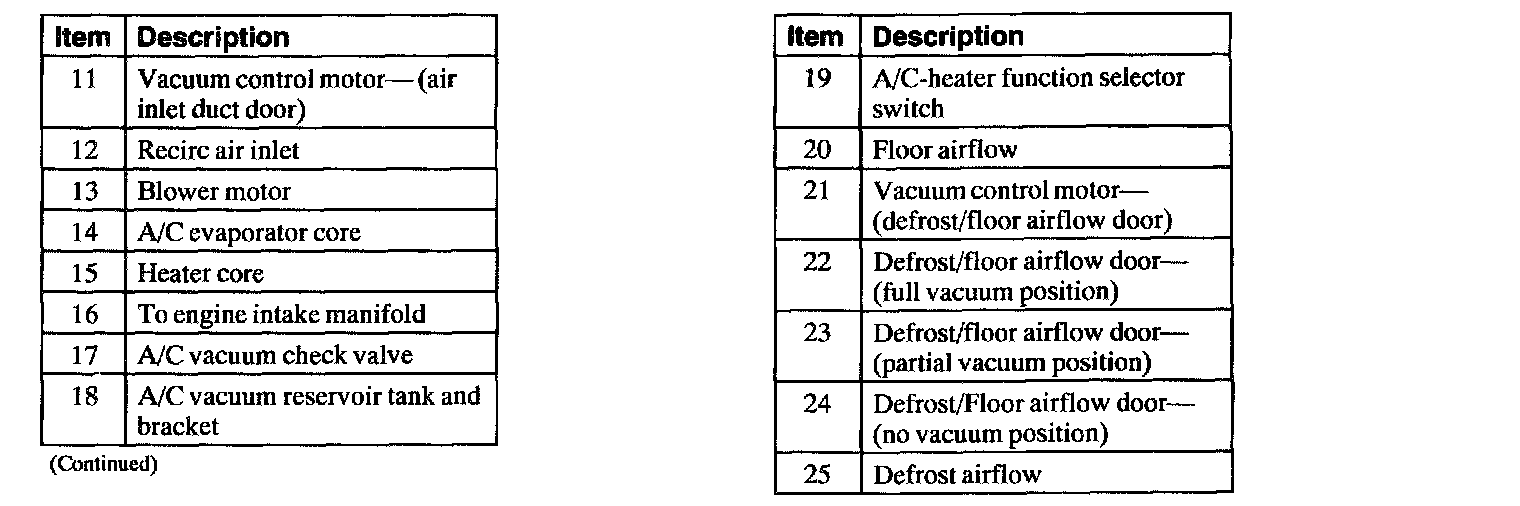

Vacuum Schematic-Manual A/C, (Legend) Part 2:
Function Selector Switch Vacuum Connector:

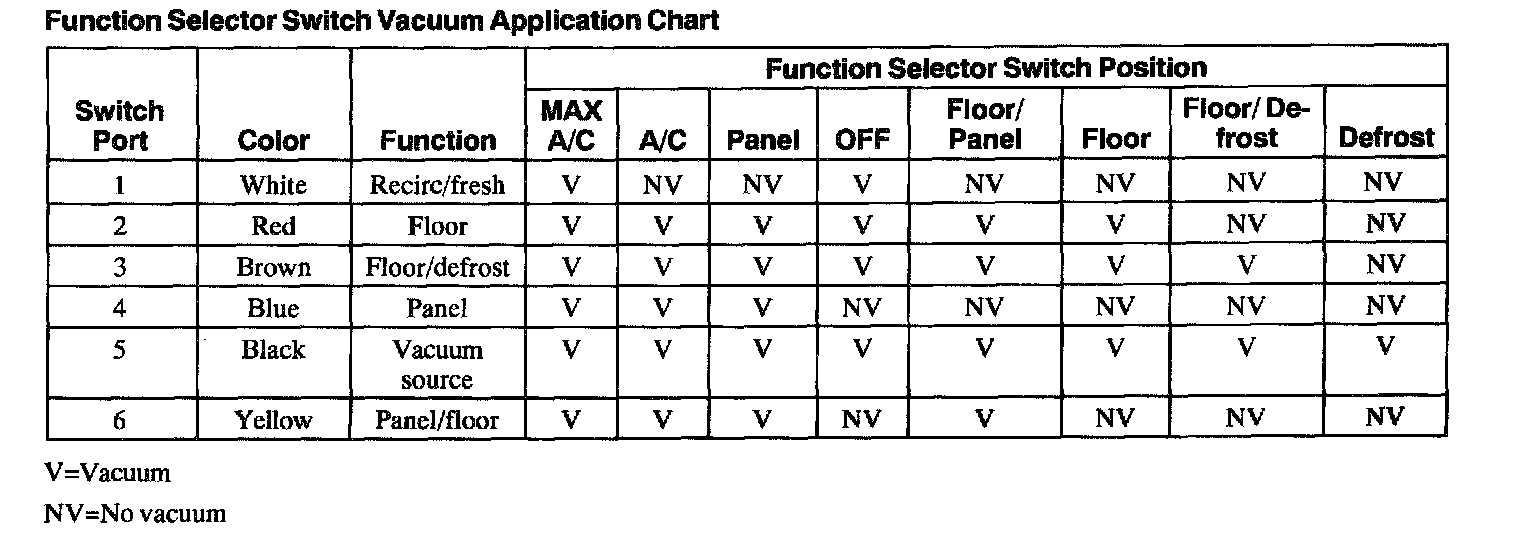

Function Selector Switch Vacuum Application Chart:
