Home >> Ford >> 2001 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Locations >> Connector Locations

Connector Locations

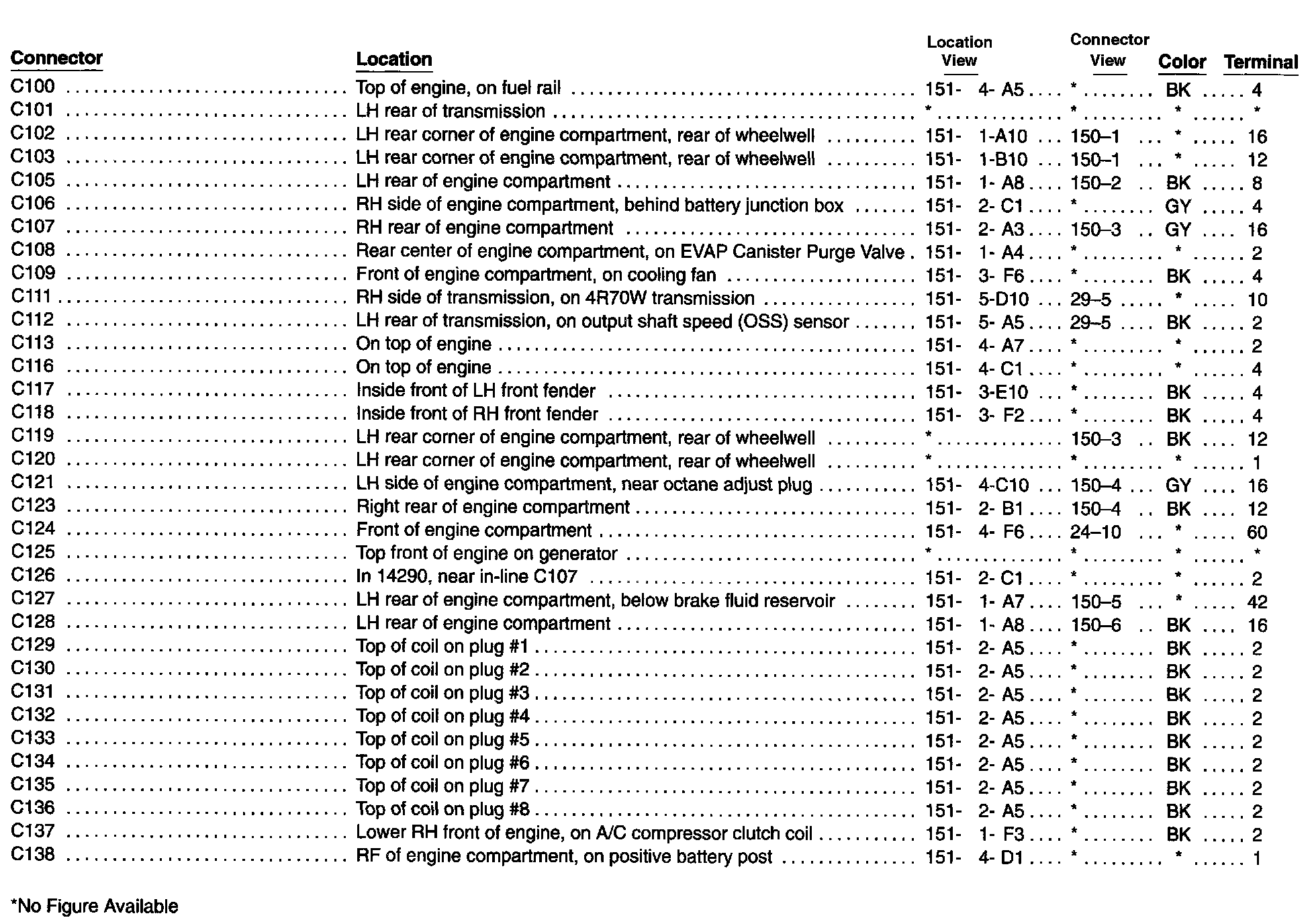

C100-C138:

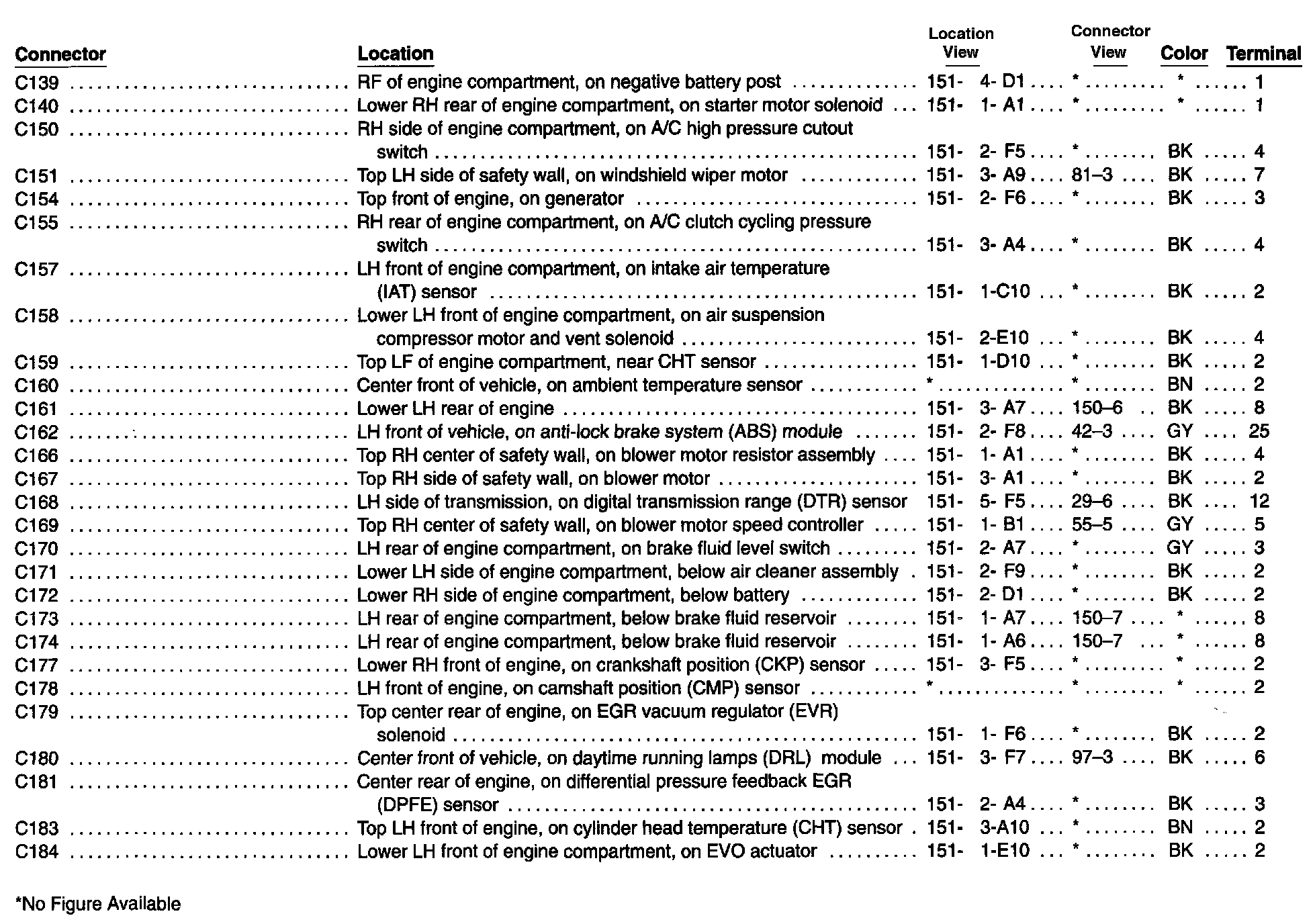

C139-C184:

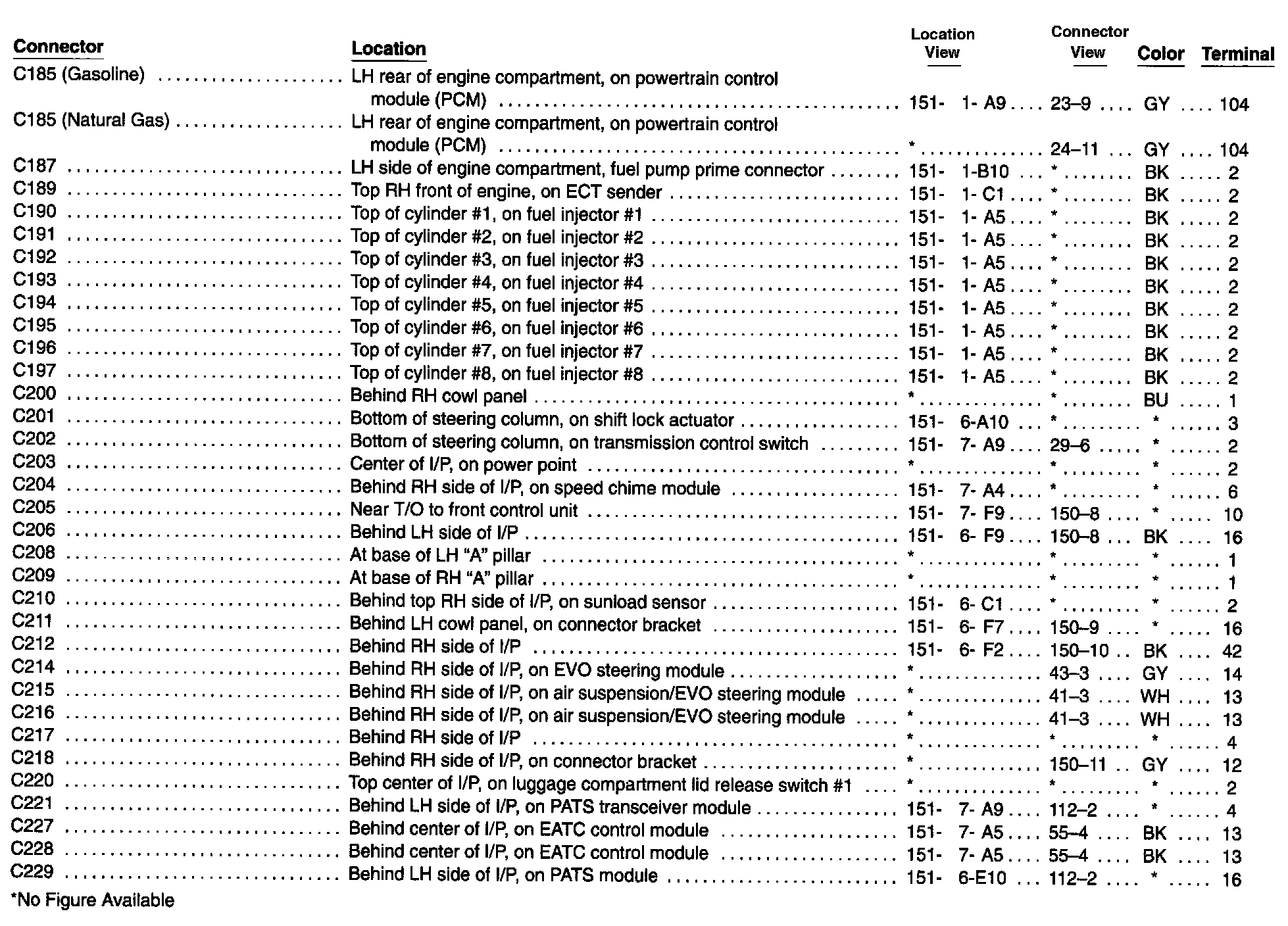

C185-C229:

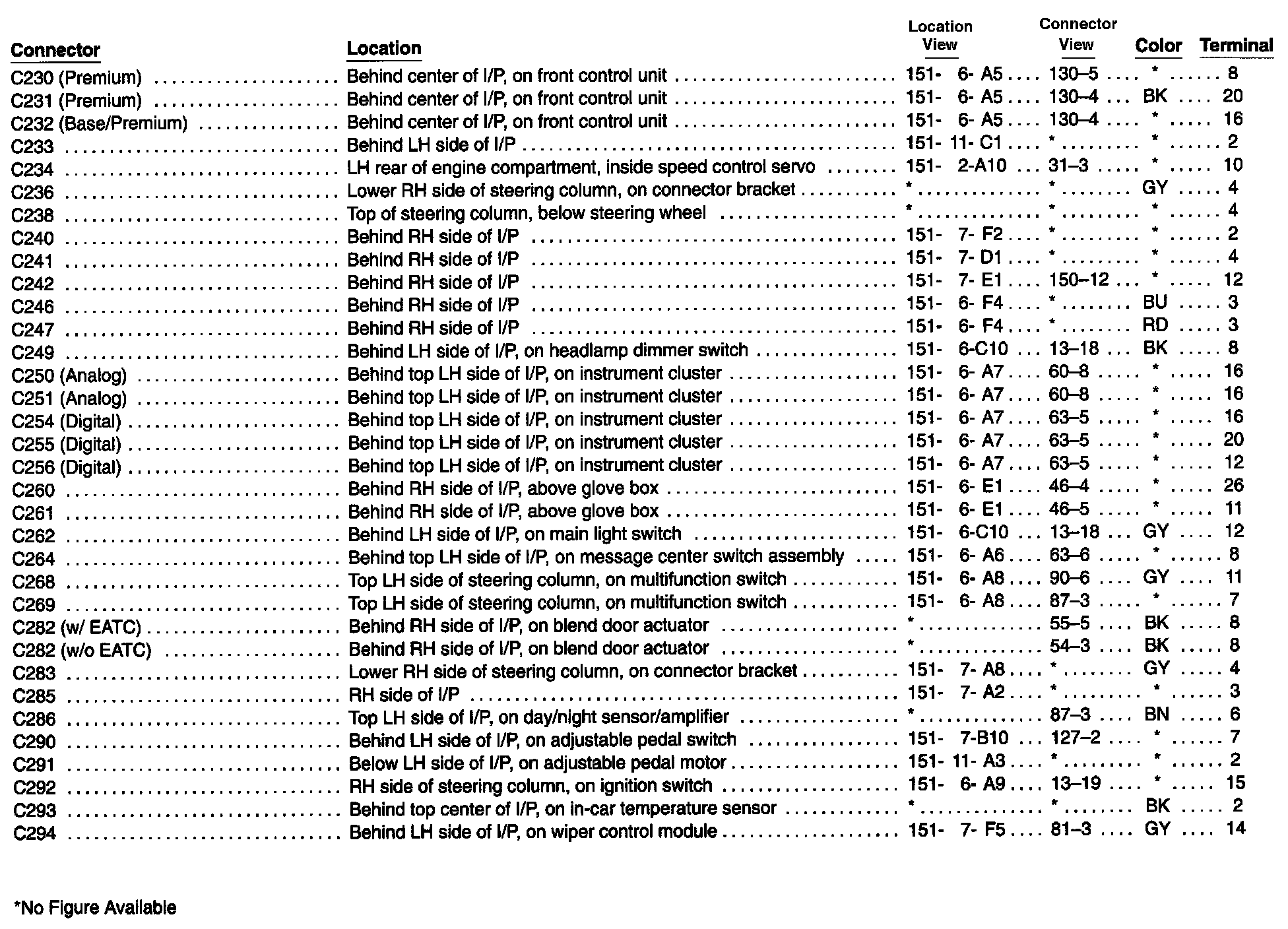

C230-C294:

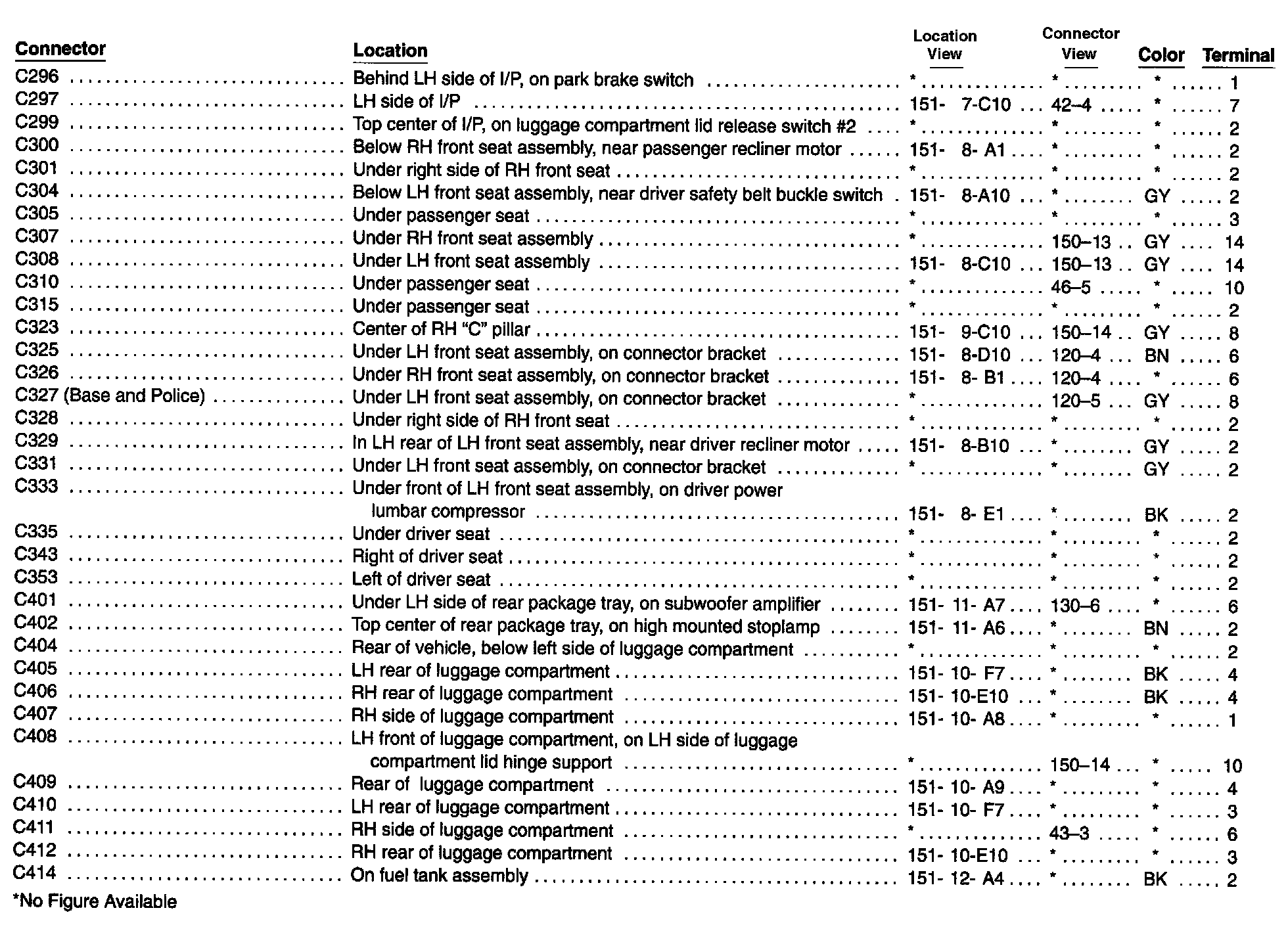

C296-C414:

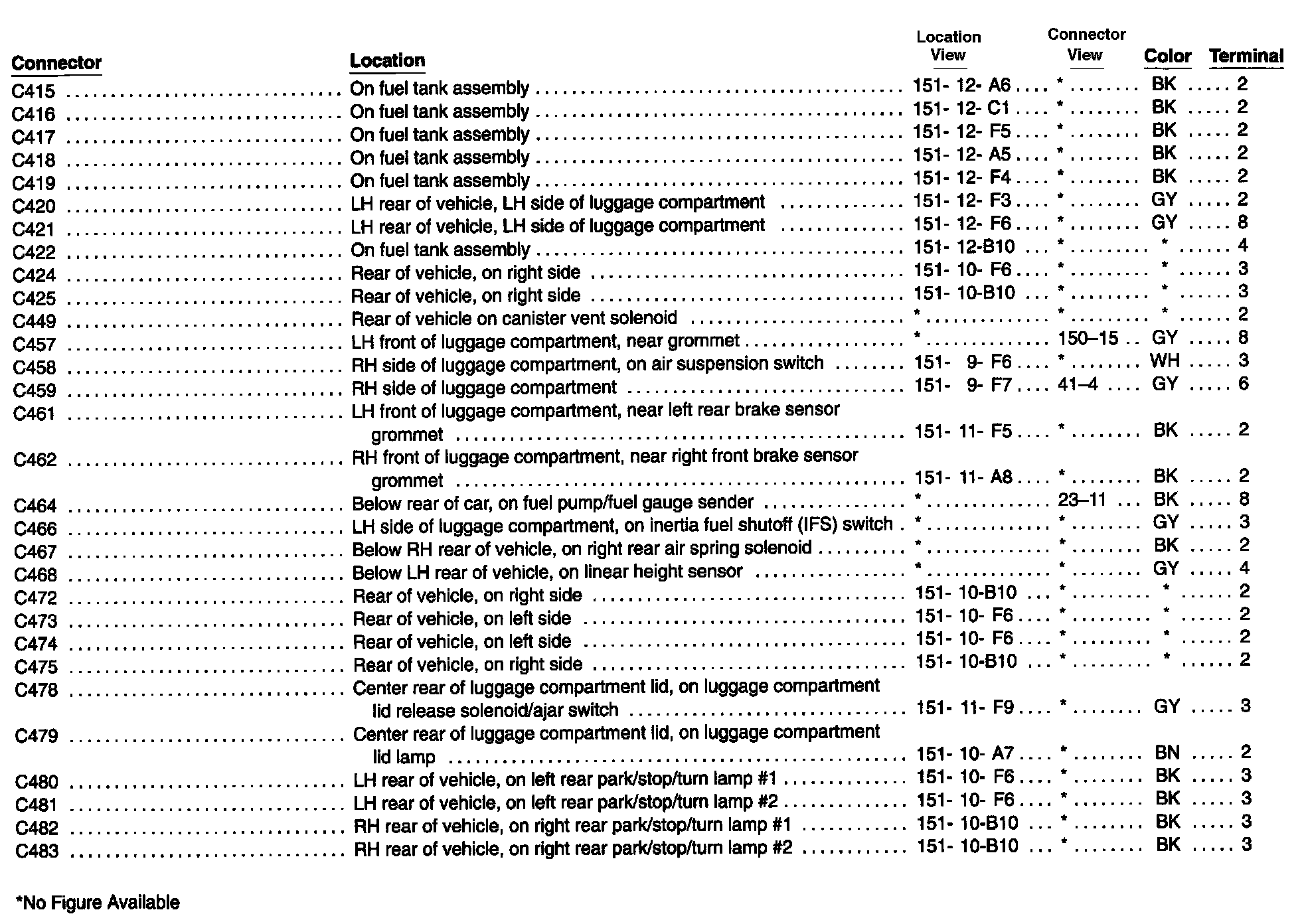

C415-C483:

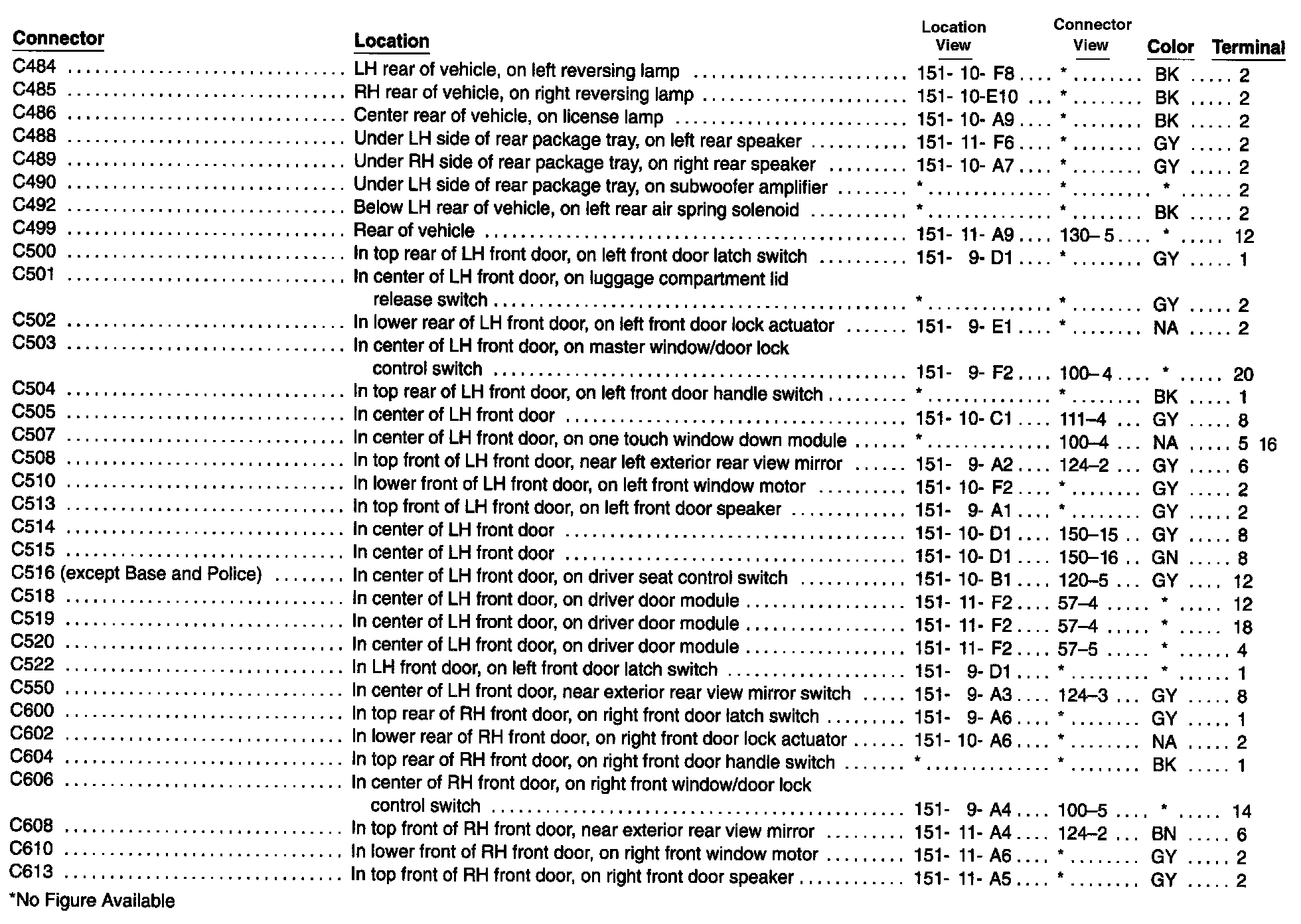

C484-C613:

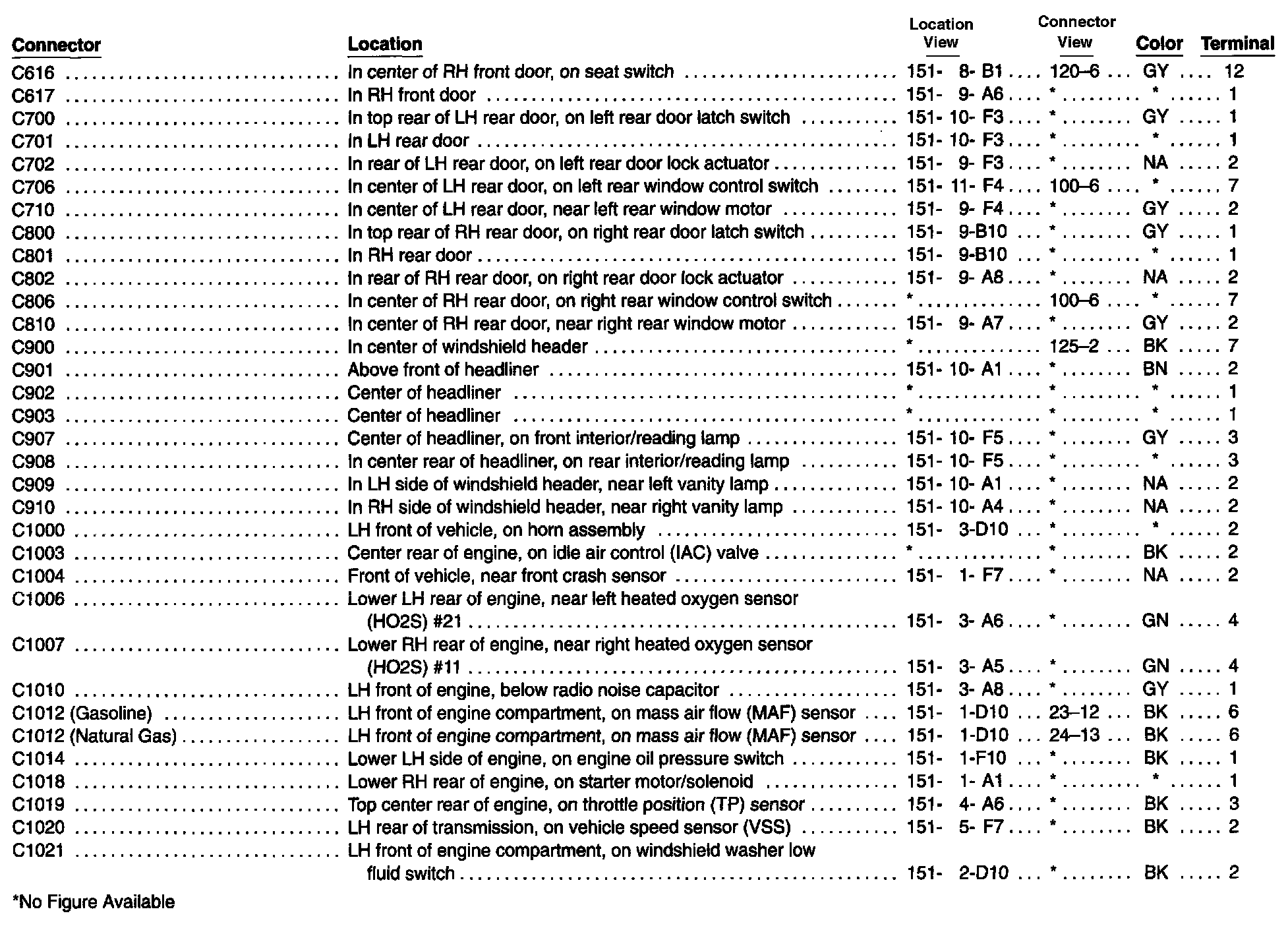

C616-C1021:

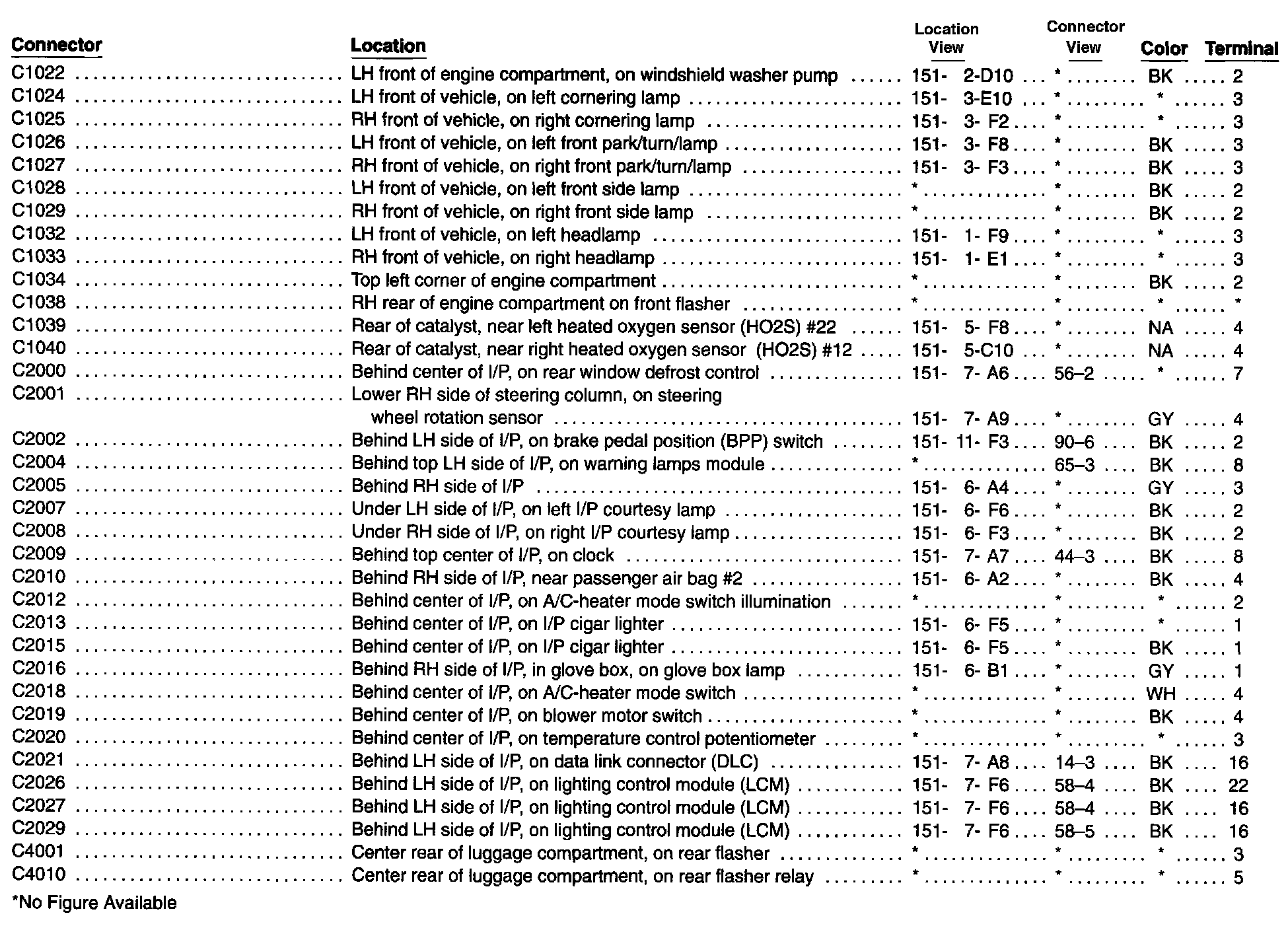

C1022-C4010:
