Drive Belt Tensioner: Service and Repair

Removal
1. Remove serpentine drive belt.

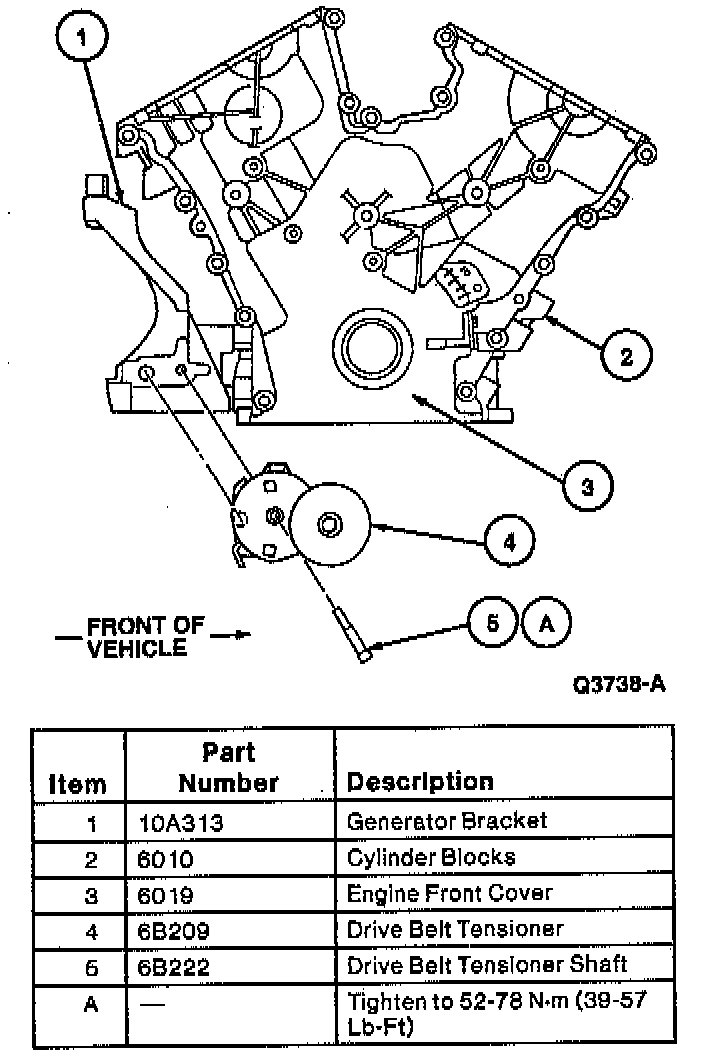

2. Remove drive belt tensioner retaining bolt and drive belt tensioner from generator bracket.

Installation
1. Follow the removal procedure in reverse order.





2. Tighten drive belt tensioner retaining bolt to 52-78 Nm (39-57 ft. lbs.).
